SKU: CJ1W-ID211

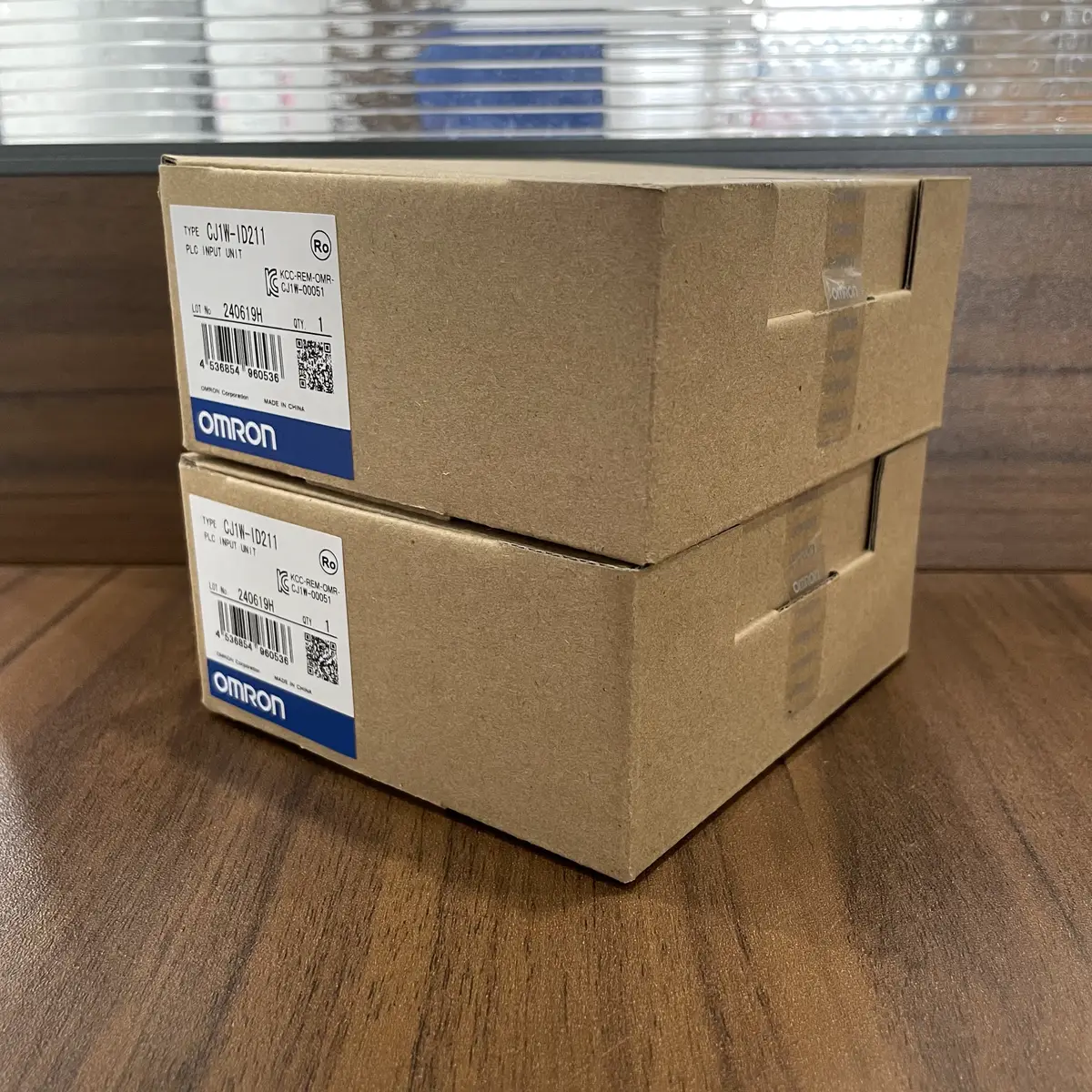

Omron CJ1W-ID211 Digital Input Unit 16-Point DC24V
Omron CJ1W-ID211 is a 16-point DC24V digital input unit for CJ series PLCs, providing high-density input for industrial automation.
USD 30.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 16 digital input channels in CJ modular format
- Compatible with Omron CJ-series PLC architecture
- Supports common industrial sensors and dry contact signals
- Channel-based signal structure for straightforward PLC mapping
- Useful for panel standardization across machine families
- Suitable for both new projects and spare-part replacement
Reliable Discrete Signal Acquisition for CJ Control Panels
The CJ1W-ID211 is engineered for stable digital input handling in control cabinets where machine uptime and serviceability are critical. It helps standardize input mapping for safety interlocks, limit switches, and sensor feedback across multiple stations. As part of the CJ modular ecosystem, it can be added or replaced with minimal disruption, making it a practical choice for both new automation panels and lifecycle maintenance of installed equipment.
Typical Applications
- Reading guard door contacts and machine interlocks
- Collecting cylinder end-position sensor feedback
- Monitoring line-stop pushbutton and selector switch states
- Capturing conveyor photoeye status in transfer sections
- Input expansion for legacy CJ systems during retrofit
- Building standardized I/O layers across similar production lines
Buying Checklist
- Proven CJ compatibility reduces integration risk
- 16-point density balances flexibility and panel organization
- Helps maintain consistent machine documentation and wiring schemes
- Good lifecycle replacement choice for installed CJ fleets
- Supports reliable operation in industrial control environments
Technical Specifications
| Model | CJ1W-ID211 |
|---|---|
| Series | CJ1W |
| Type | Digital Input Unit |
| Input Points | 16 points |
| Input Voltage | DC24V |
| Input Current | 7mA typical |
| ON Voltage | 14.4V minimum |
| OFF Voltage | 5V maximum |
| Response Time | 0-32ms (adjustable) |
| Common | 16 points/common, 1 circuit |
| Connection | Removable terminal block |
| Current Consumption | 100mA at 5VDC |
| Mounting | CJ series backplane |
Frequently Asked Questions
What's the difference between ID201 and ID211?
ID201: 8 points, DC12-24V range. ID211: 16 points, DC24V only. ID211 provides double density at same width, more cost-effective for 24V systems.
How many ID211 units can I use in one CJ system?
Maximum 40 I/O units per CPU rack (excluding CPU and power supply). Limited by CPU's I/O capacity and power supply capacity. Check power budget before adding units.
Can I mix 24V and 12V inputs?
ID211 is 24V only. For 12V inputs, use ID201 (DC12-24V range). Each unit's common is isolated, so you can have different voltage levels per unit.
What's the power consumption?
Internal: 100mA at 5VDC (from backplane). External: 7mA per input at 24VDC (from sensor supply). For 16 inputs ON: 112mA external current.
