SKU: CJ2H-CPU65EIP

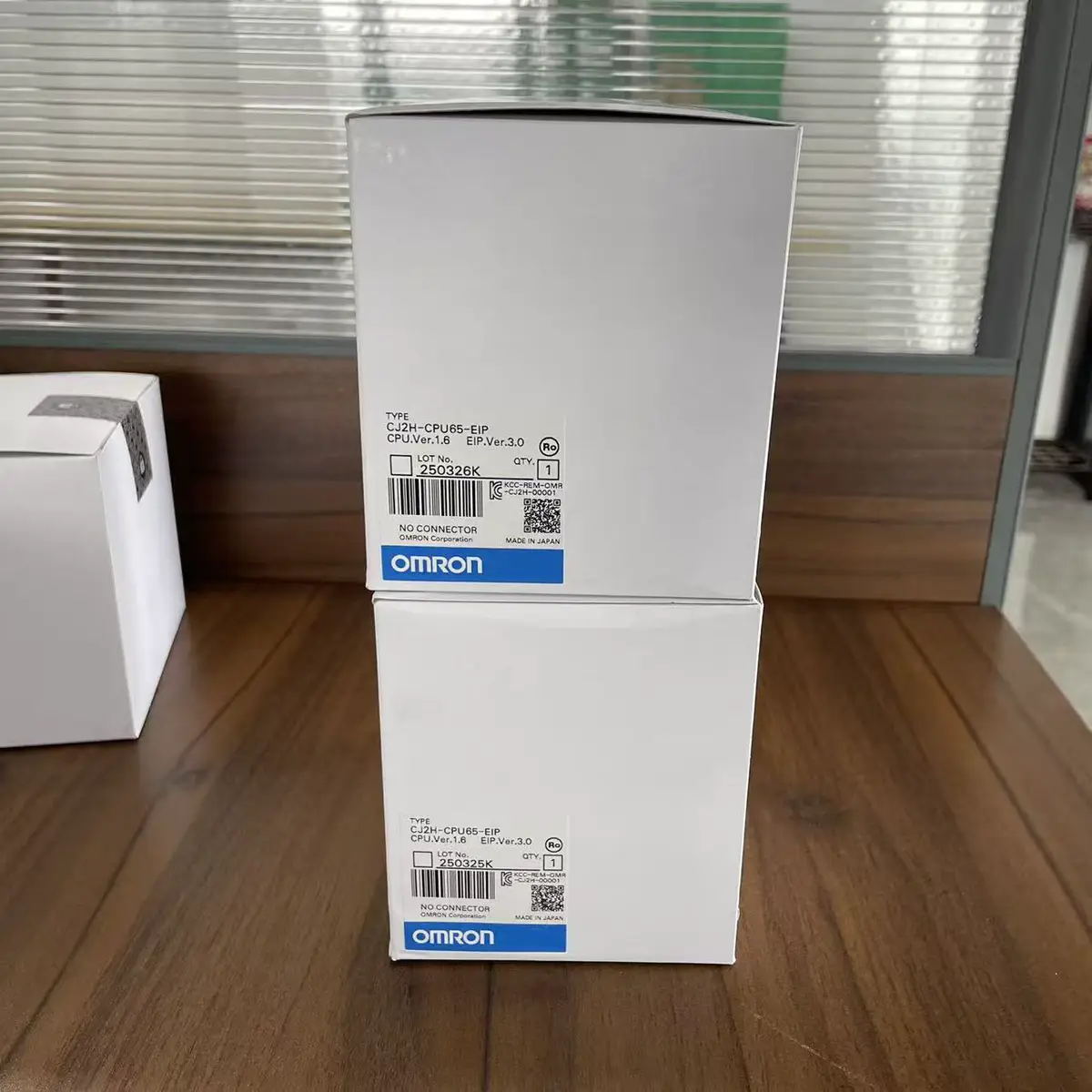

Omron CJ2H-CPU65EIP CJ2 CPU Unit with EtherNet/IP
Omron CJ2H-CPU65EIP is a CJ2 CPU unit with built-in EtherNet/IP for networked automation applications.
USD 720.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 60K steps program capacity
- Built-in Ethernet/IP
- Ultra-fast processing 0.04μs
- Supports 2560 I/O points
- Large data memory
- USB programming port
Omron CJ2H-CPU65EIP PLC Processor
The Omron CJ2H-CPU65EIP is a high-performance CPU unit from the CJ2 series, featuring 60K steps of program capacity and built-in Ethernet/IP communication. This processor delivers exceptional speed and functionality for complex automation applications, with instruction execution times as fast as 0. 04μs for basic instructions. The integrated Ethernet/IP port enables seamless connectivity to HMIs, SCADA systems, and enterprise networks without requiring additional communication modules. With support for up to 2560 I/O points and extensive memory capacity, the CJ2H-CPU65EIP is ideal for large-scale manufacturing systems, process control applications, and facilities requiring advanced data acquisition and networking capabilities.
Typical Applications
- Large manufacturing systems
- Automated assembly lines
- Process control plants
- Material handling systems
- Quality control systems
- Data acquisition systems
Buying Checklist
- High-speed performance
- Built-in Ethernet eliminates extra modules
- Scalable I/O capacity
- Large memory for complex programs
- USB port for easy programming
- Proven CJ2 platform
Technical Specifications
| Model | CJ2H-CPU65EIP |
|---|---|
| Series | CJ2H |
| Program Capacity | 60K steps |
| Built-in Ports | EtherNet/IP, USB |
| Max I/O Points | 2560 points |
| LD Instruction Time | 0.04μs |
| Expandable Units | Up to 40 units |
| Operating Temperature | 0 to +55°C |
| Software | CX-Programmer |
Frequently Asked Questions
Is this the same as CJ2H-CPU65-EIP?
Yes, CPU65EIP and CPU65-EIP refer to the same model. Different listings may use either notation. Both have 60K capacity and built-in EtherNet/IP.
What networks does this CPU support?
Built-in EtherNet/IP. Add CJ1W communication units for DeviceNet, CompoNet, Controller Link, serial networks. Flexible network configuration.
Can I program this CPU over Ethernet?
Yes, CX-Programmer connects via EtherNet/IP using FINS/TCP protocol. Faster than serial connection. Allows remote programming and monitoring.
Is this CPU suitable for large systems?
Yes, 60K program capacity and 2560 I/O points suit large automation systems. For very large systems, consider CJ2H-CPU67/68 with more capacity.
