SKU: CJ2H-CPU67-EIP

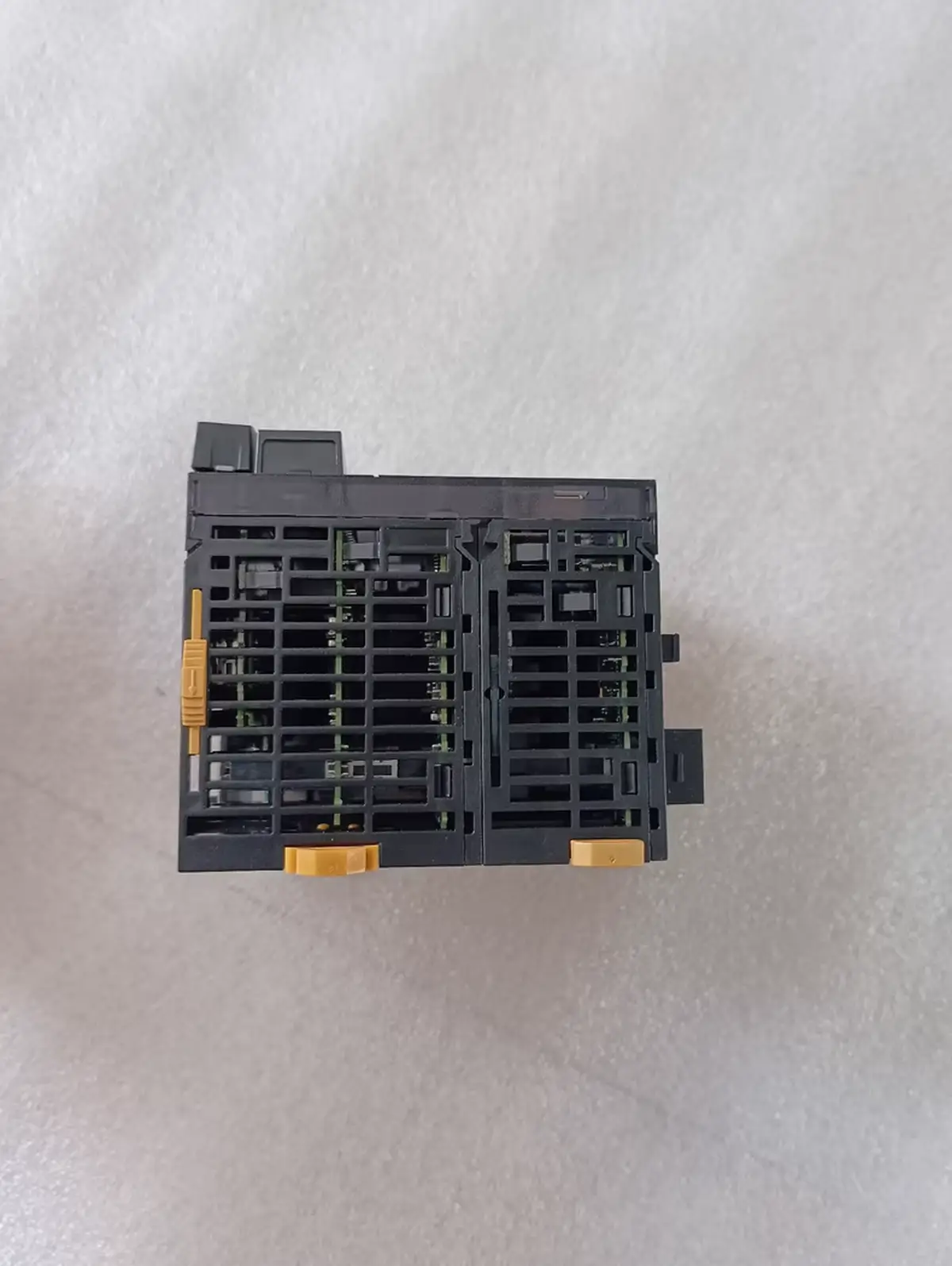

Omron CJ2H-CPU67-EIP High-Performance PLC CPU Unit with EtherNet/IP
Omron CJ2H-CPU67-EIP is a CJ2H high-performance PLC CPU with 160K steps and built-in EtherNet/IP for large automation systems.
USD 1700.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- High-performance CPU for CJ2 automation platforms
- Integrated Ethernet/IP communication capability
- Supports large and complex PLC application programs
- Suitable for multi-station and high-throughput systems
- Improves interoperability in Ethernet-based plant networks
- Strong fit for advanced retrofit and modernization projects
High-Capacity CJ2 Control Core for Networked Production Systems
The CJ2H-CPU67-EIP is built for demanding applications requiring strong processing performance and integrated Ethernet/IP connectivity. It supports large control programs and coordinated communications with I/O, drives, HMIs, and supervisory systems. This CPU is suited for complex machine lines and plant sections where throughput, deterministic control behavior, and reliable network data exchange are critical to operational efficiency.
Typical Applications
- Controlling multi-station packaging and assembly lines
- Handling high I/O count machine coordination logic
- Integrating line control with Ethernet/IP device networks
- Supporting data exchange with MES/SCADA gateways
- Modernizing legacy PLC systems with higher performance core
- Running complex sequencing with tighter cycle-time targets
Buying Checklist
- Combines processing power with integrated network connectivity
- Reduces need for extra communication hardware
- Supports larger applications and future feature growth
- Improves line-level interoperability and data visibility
- Strong option for performance-focused automation upgrades
Technical Specifications
| Model | CJ2H-CPU67-EIP |
|---|---|
| Series | CJ2H |
| Program Capacity | 160K steps |
| Data Memory | 256K words |
| Built-in Ports | EtherNet/IP, USB |
| Max I/O Points | 2560 points |
| LD Instruction Time | 0.04μs |
| High-Speed Counter | 100kHz 4-axis |
| Pulse Output | 100kHz 4-axis |
| Expandable Units | Up to 40 units |
| Operating Temperature | 0 to +55°C |
| Software | CX-Programmer |
Frequently Asked Questions
What applications require CPU67?
Large systems: complete production lines, multi-machine coordination, complex process control. 160K capacity for extensive programming.
What's the data memory capacity?
256K words data memory. Stores extensive production data, recipes, quality records. Reduces need for external data storage.
Can this CPU replace multiple smaller PLCs?
Yes, CPU67's 160K capacity and 2560 I/O points can consolidate multiple smaller PLCs. Benefits: reduced hardware, simplified programming, centralized data.
Is this CPU suitable for SCADA applications?
Yes, built-in EtherNet/IP enables SCADA connectivity. Large data memory stores production data. For extensive data logging, consider NJ series with database connectivity.
