SKU: CK3M-CPU101

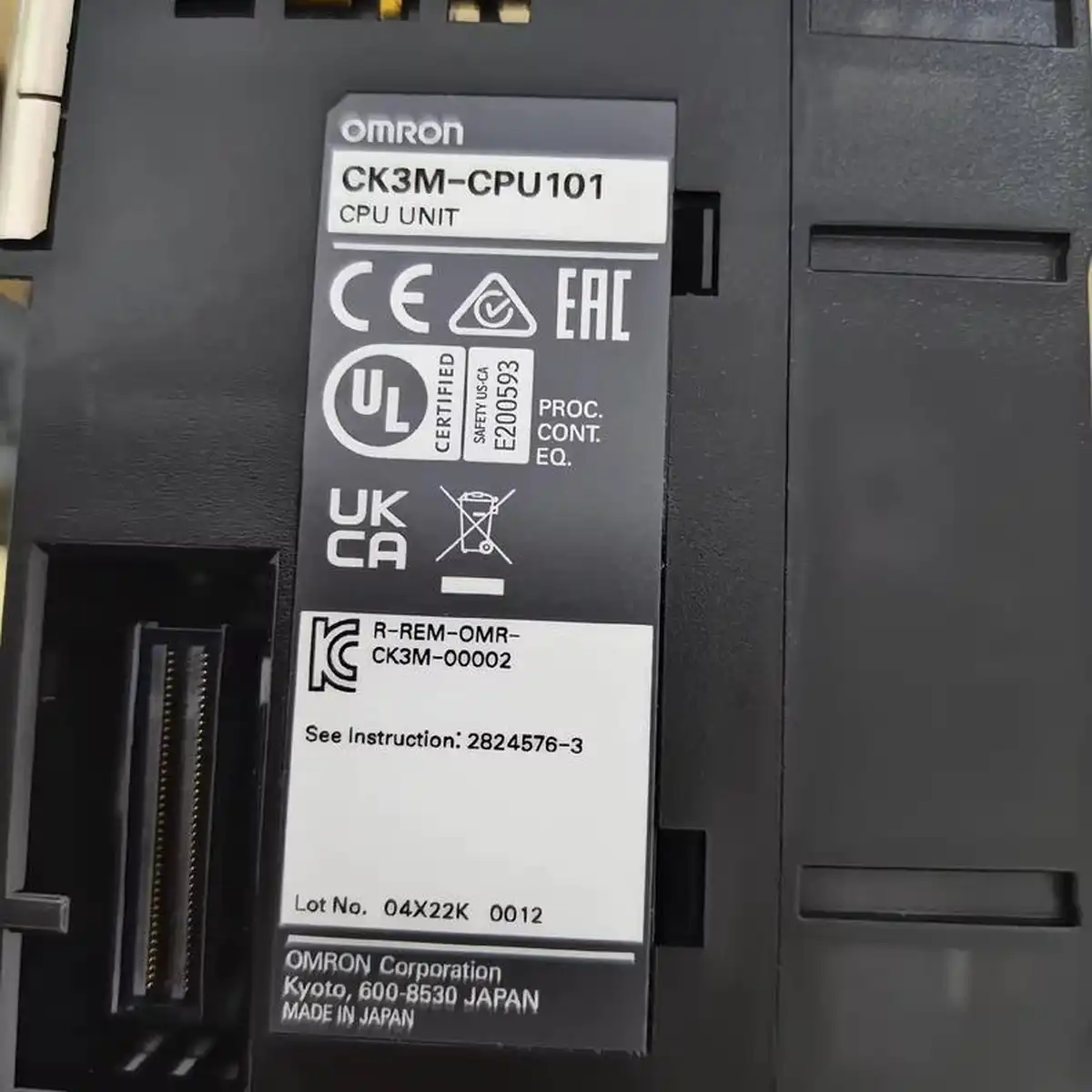

Omron CK3M-CPU101 Programmable Multi-Axis Controller
Omron CK3M-CPU101 is a programmable multi-axis controller for integrated motion and logic control in machine automation.
USD 875.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Programmable multi-axis controller for coordinated motion tasks
- Designed for deterministic axis synchronization and sequencing
- Suitable for high-performance packaging and robotics systems
- Supports scalable control architecture for platform evolution
- Improves repeatability in precision automation applications
- Strong fit for OEM standardization of advanced machine controls
Motion-Centric Control Core for Advanced Machine Platforms
The CK3M-CPU101 provides centralized control of multiple axes for machines that demand precise trajectory coordination and repeatable cycle behavior. It is used in packaging, robotics, handling, and assembly applications where motion performance directly affects throughput and quality. This controller supports modular expansion planning, making it suitable for OEMs developing standardized, high-performance machine families.
Typical Applications
- Coordinating multi-axis pick-and-place operations
- Controlling synchronized transfer and indexing motions
- Running precision trajectory control in assembly stations
- Driving motion-intensive packaging machine sequences
- Implementing standardized motion platforms across OEM product lines
- Upgrading legacy control cores in advanced retrofit projects
Buying Checklist
- Enables higher precision and throughput in motion systems
- Supports scalable machine architecture growth
- Improves consistency in cycle-critical automation
- Strong foundation for OEM advanced platform strategy
- Reduces integration complexity through centralized motion control
Technical Specifications
| Model | CK3M-CPU101 |
|---|---|
| Series | CK3M |
| Type | Multi-Axis Controller |
| Motion Axes | Multiple axes |
| Logic Control | Integrated PLC |
| Communication | EtherCAT |
| Supply Voltage | DC24V |
| Operating Temperature | 0 to +55°C |
| Software | Sysmac Studio |
Frequently Asked Questions
What's the difference between CK3E and CK3M?
CK3E: standalone controller. CK3M: modular multi-axis controller with more flexibility. Both integrate motion and logic. Choose based on axis count and system complexity.
How do I program this controller?
Sysmac Studio: motion configuration, PLC programming (IEC 61131-3 languages), HMI design. Single software platform for complete system.
What servo drives are compatible?
Omron R88D series EtherCAT servo drives. Also compatible with third-party EtherCAT servo drives using CiA 402 profile.
Can this controller handle complex motion?
Yes, supports linear interpolation, circular interpolation, electronic cam, gear synchronization. Suitable for complex multi-axis coordination.
