SKU: CP1W-20EDT

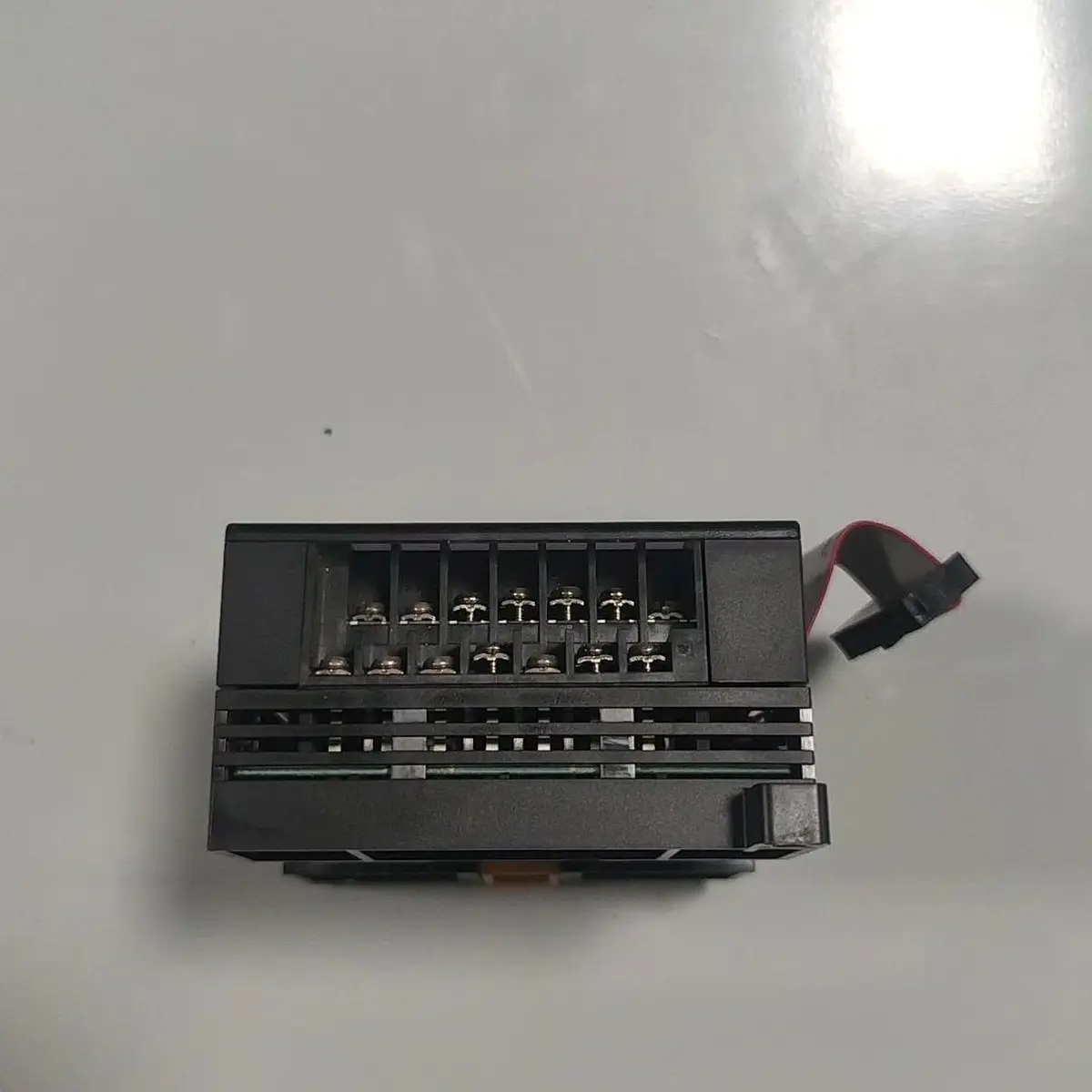

Omron CP1W-20EDT Expansion Unit 12 Input 8 Transistor Output NPN
Omron CP1W-20EDT is a 20-point expansion unit for CP1 series PLCs with 12 DC inputs and 8 NPN transistor outputs.
USD 53.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Total Points: 20 points (12 input, 8 output)
- Input Points: 12 DC inputs
- Output Points: 8 NPN transistor outputs
- Output Current: 0.3A per point
- Load Voltage: DC12-24V
- Response Time: 0.5ms ON, 1ms OFF
Scalable PLC Control Foundation for OEM and Retrofit Projects
The CP1W-20EDT fits industrial control projects that require dependable logic execution, maintainable programming workflows, and architecture growth over the equipment lifecycle. It supports standardized automation design across machine families while preserving serviceability in production environments.
Deterministic Logic and Sequence Control
This controller class supports predictable scan-driven execution for interlocks, sequencing, alarms, and coordinated device handling. Deterministic behavior is essential for consistent machine output and repeatable cycle performance.
Platform Reuse Across Equipment Variants
Standardizing on a proven PLC/controller family enables software reuse, reduced engineering lead time, and easier support across multiple machine models or production lines.
Lifecycle Service and Maintainability
A maintainable control architecture with documented I/O mapping, diagnostics, and modular expansion strategy reduces troubleshooting time and improves long-term ownership value.
Typical Applications
- Executes deterministic control logic
- Coordinates multi-device machine behavior
- Supports reusable software structures
- Improves fault diagnostics and recovery time
- Enables modular feature growth over time
- Standardizes control strategy across equipment
Buying Checklist
- Strong fit for scalable machine control
- Maintains deterministic automation behavior
- Supports long-term maintainability
- Good platform standardization candidate
- Reliable industrial controller ecosystem
Technical Specifications
| Model | CP1W-20EDT |
|---|---|
| Series | CP1W |
| Type | Expansion I/O Unit |
| Total Points | 20 points (12 input, 8 output) |
| Input Points | 12 DC inputs |
| Output Points | 8 NPN transistor outputs |
| Output Current | 0.3A per point |
| Load Voltage | DC12-24V |
| Response Time | 0.5ms ON, 1ms OFF |
| Connection | Removable terminal block |
| Current Consumption | 100mA at 5VDC |
| Compatible CPUs | CP1E, CP1L, CP1H |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What's the advantage of transistor output vs relay?
Transistor: faster response (0.5ms vs 10ms), longer life (no contacts), silent operation, suitable for PWM. Relay: higher current (5A vs 0.3A), AC/DC switching. Choose based on load type.
Can I use this for high-speed output?
Standard transistor output: 0.5ms response (approximately 1kHz). For high-speed pulse output (stepper control), use CPU built-in pulse outputs or high-speed output unit.
Do I need external fuse?
Unit has internal protection, but external fusing recommended. Use 0.5A fast-blow fuse per output or per common group for load protection.
What's the difference between CP1W-20EDT and CP1W-20EDT1?
20EDT: NPN (sinking) output. 20EDT1: PNP (sourcing) output. Choose based on load wiring requirements and regional standards.
