SKU: D4V-8108SZ-N

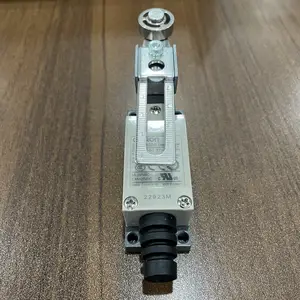

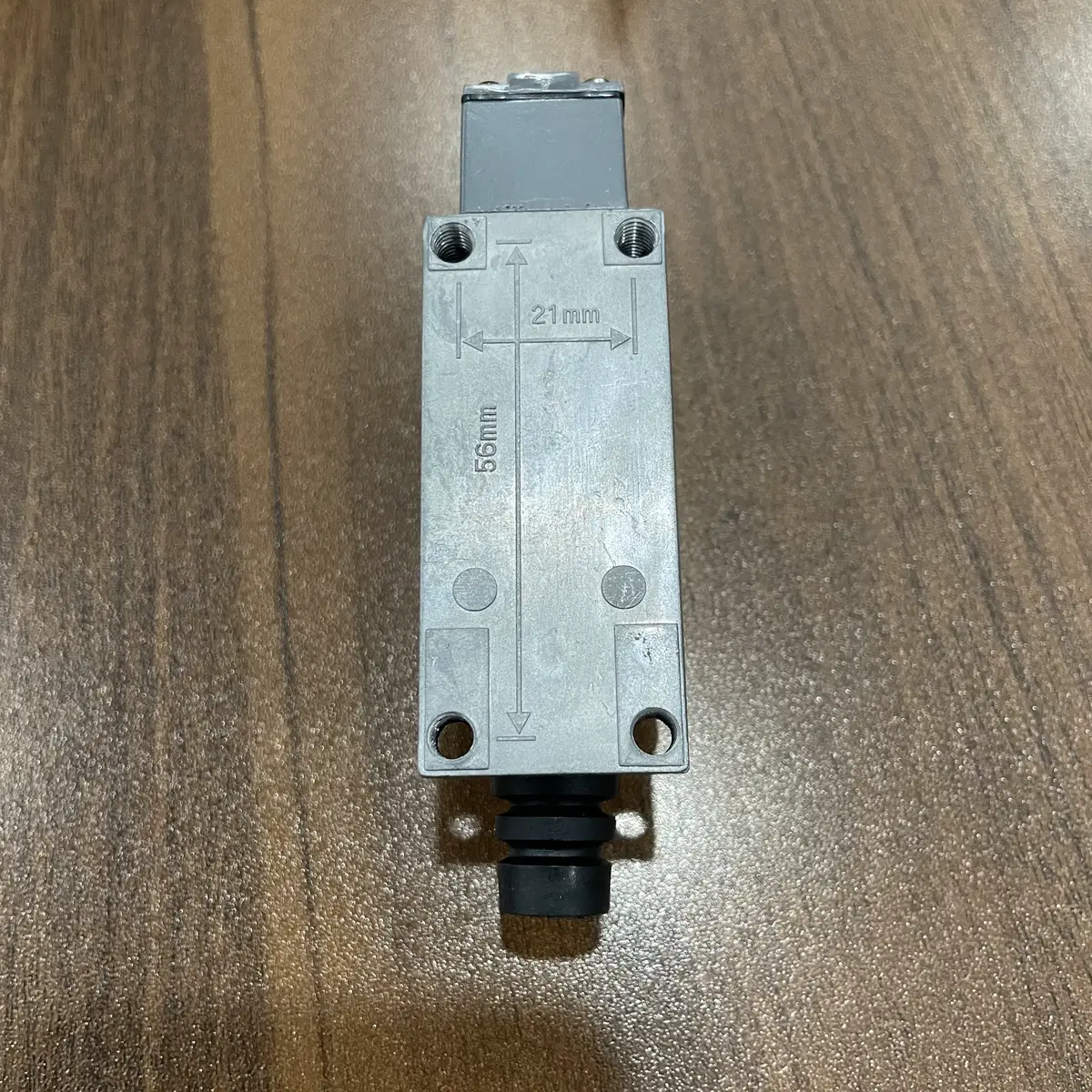

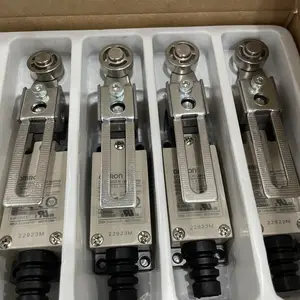

Omron D4V-8108SZ-N Miniature Limit Switch
Miniature limit switch for compact space installations.
USD 7.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Contact Form: SPDT (1 Form C)
- Contact Rating: 5A at 250VAC
- Actuator Type: Roller Plunger
- Operating Force: 2.45N max
- Travel: OT: 1.5mm, PT: 0.8mm
- Mechanical Life: 5 million operations
Reliable Detection Layer for Sequence Accuracy and Process Stability
The D4V-8108SZ-N is used to deliver repeatable machine-state detection for sequencing, interlocks, and process confirmation. Whether in packaging, handling, or assembly systems, this sensing class helps reduce false triggers and improves control confidence under continuous operation.
Repeatable State Detection
Accurate detection at the right process moment improves sequence integrity and reduces quality escapes caused by timing uncertainty or missed events.
Fit for Demanding Machine Environments
Industrial sensing components are selected for stability under vibration, contamination, and repetitive duty where consumer-grade devices are not suitable.
Faster Commissioning and Replacement
Standardized sensor families simplify spare strategy, reduce replacement errors, and support quicker return to production after maintenance events.
Typical Applications
- Provides stable detection signals to PLC logic
- Improves sequence timing accuracy
- Reduces dependence on mechanical contact methods
- Supports high-cycle production operation
- Enables better fault isolation at machine stations
- Simplifies maintenance through standard sensor families
Buying Checklist
- Repeatable industrial detection behavior
- Designed for continuous machine duty
- Improves process timing confidence
- Serviceable and standardizable selection
- Reliable fit for automation sensing layers
Technical Specifications
| Model | D4V-8108SZ-N |
|---|---|
| Series | D4V |
| Type | Miniature Limit Switch |
| Contact Form | SPDT (1 Form C) |
| Contact Rating | 5A at 250VAC |
| Actuator Type | Roller Plunger |
| Operating Force | 2.45N max |
| Travel | OT: 1.5mm, PT: 0.8mm |
| Mechanical Life | 5 million operations |
| Electrical Life | 50,000 operations |
| Operating Temperature | -25 to +70°C |
| Protection | IP64 |
| Size | Miniature |
Frequently Asked Questions
What is the roller diameter?
The roller diameter is 5mm, suitable for small cam profiles in compact mechanisms.
Is this switch suitable for high-speed operation?
Yes, the D4V series is designed for high-speed operation with response frequencies up to 120 operations per second.
Can I adjust the operating position?
The operating position is fixed by the switch design. Adjust the cam position to change the actuation point.
What is the cable length?
Standard cable length is 1m. Other lengths may be available as special order.
