SKU: DCN1-2R

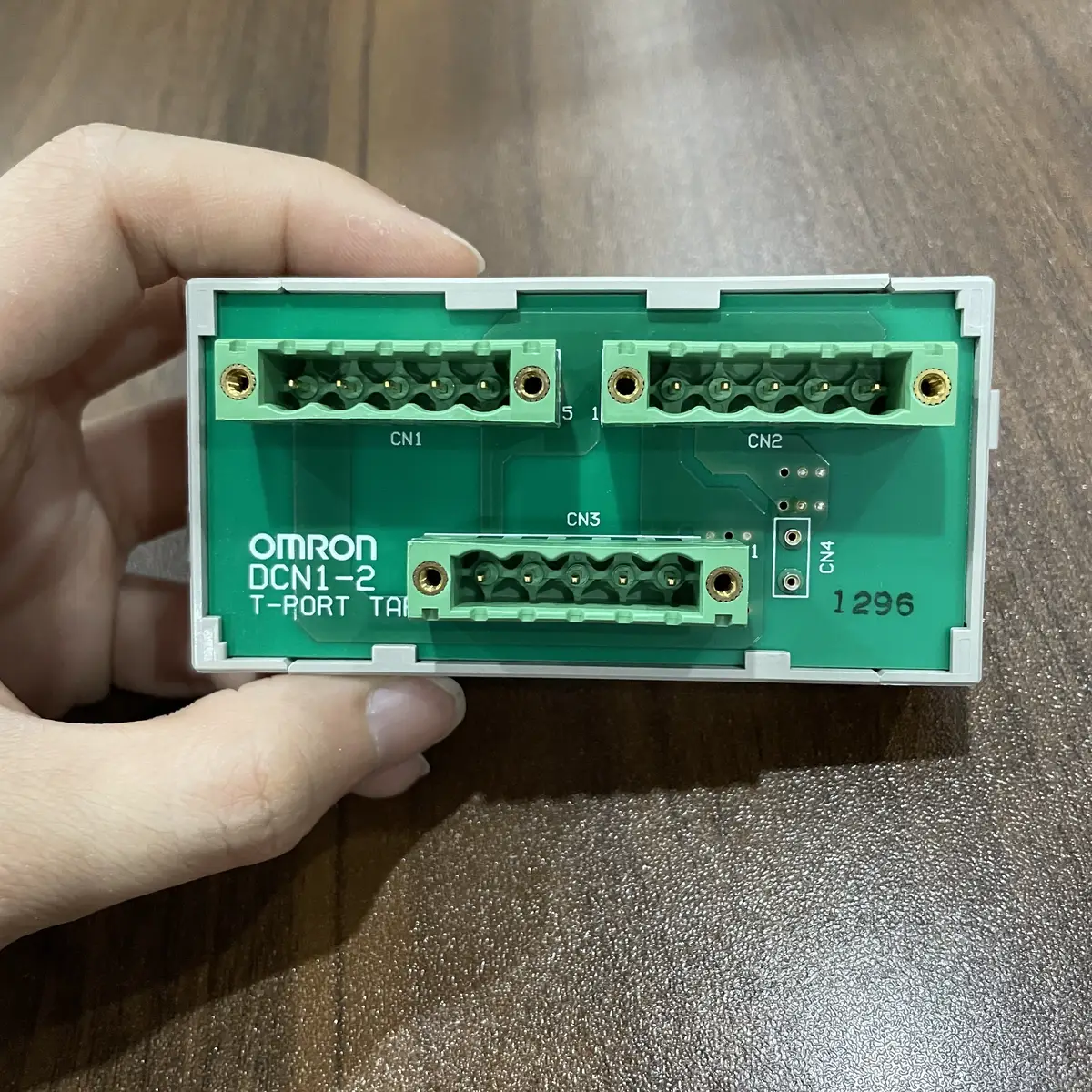

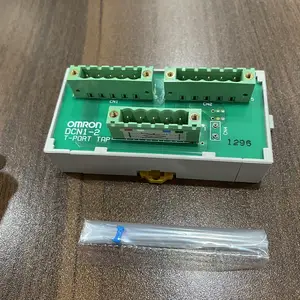

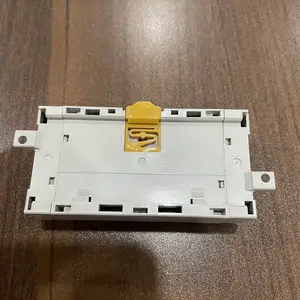

Omron DCN1-2R Connector for Encoders
Omron DCN1-2R is a connector for encoder connections, enabling reliable encoder signal transmission.
USD 53.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Connector Type: Multi-pin
- Compatible: Omron encoders
- Shielding: Shielded
- Operating Temperature: -25 to +70°C
Field-Reliable DeviceNet Branch Connectivity
The DCN1-2R is used to create practical branch points in DeviceNet network topologies. It helps machine builders and maintenance teams implement modular field wiring with stronger environmental resilience than improvised junction methods.
T-Tap Topology Support
The connector provides an organized branch interface for DeviceNet drops, improving network structure and simplifying field wiring management.
IP67-Oriented Field Deployment
Sealed construction supports use in harsher industrial areas where dust, moisture, and vibration are present around machine-level I/O nodes.
Service and Expansion Efficiency
Using standardized connector nodes reduces rewiring complexity during machine expansion, troubleshooting, or module replacement operations.
Typical Applications
- Creates clean network branch points
- Improves connectorized serviceability
- Supports modular machine section wiring
- Reduces ad-hoc junction failures
- Helps standardize DeviceNet field installation
- Facilitates faster troubleshooting in production
Buying Checklist
- Purpose-built DeviceNet T-tap format
- IP67 suitability for machine-level environments
- Improves wiring organization and uptime
- Useful for expansion and maintenance tasks
- Compatible with fieldbus standard practices
Technical Specifications
| Model | DCN1-2R |
|---|---|
| Series | DCN |
| Type | Encoder Connector |
| Connector Type | Multi-pin |
| Compatible | Omron encoders |
| Shielding | Shielded |
| Operating Temperature | -25 to +70°C |
Frequently Asked Questions
What encoders is this connector compatible with?
Omron E6B2, E6C2, E6CP series encoders. Check encoder datasheet for connector type.
Is this connector shielded?
Yes, shielded connector for noise immunity. Important for reliable encoder signal transmission.
Can I use this for servo motor encoders?
Check servo motor encoder connector type. DCN1-2R for specific Omron encoder models.
What's the cable length?
Connector only. Cable sold separately or as pre-assembled cable set.
