SKU: DRT2-ID16

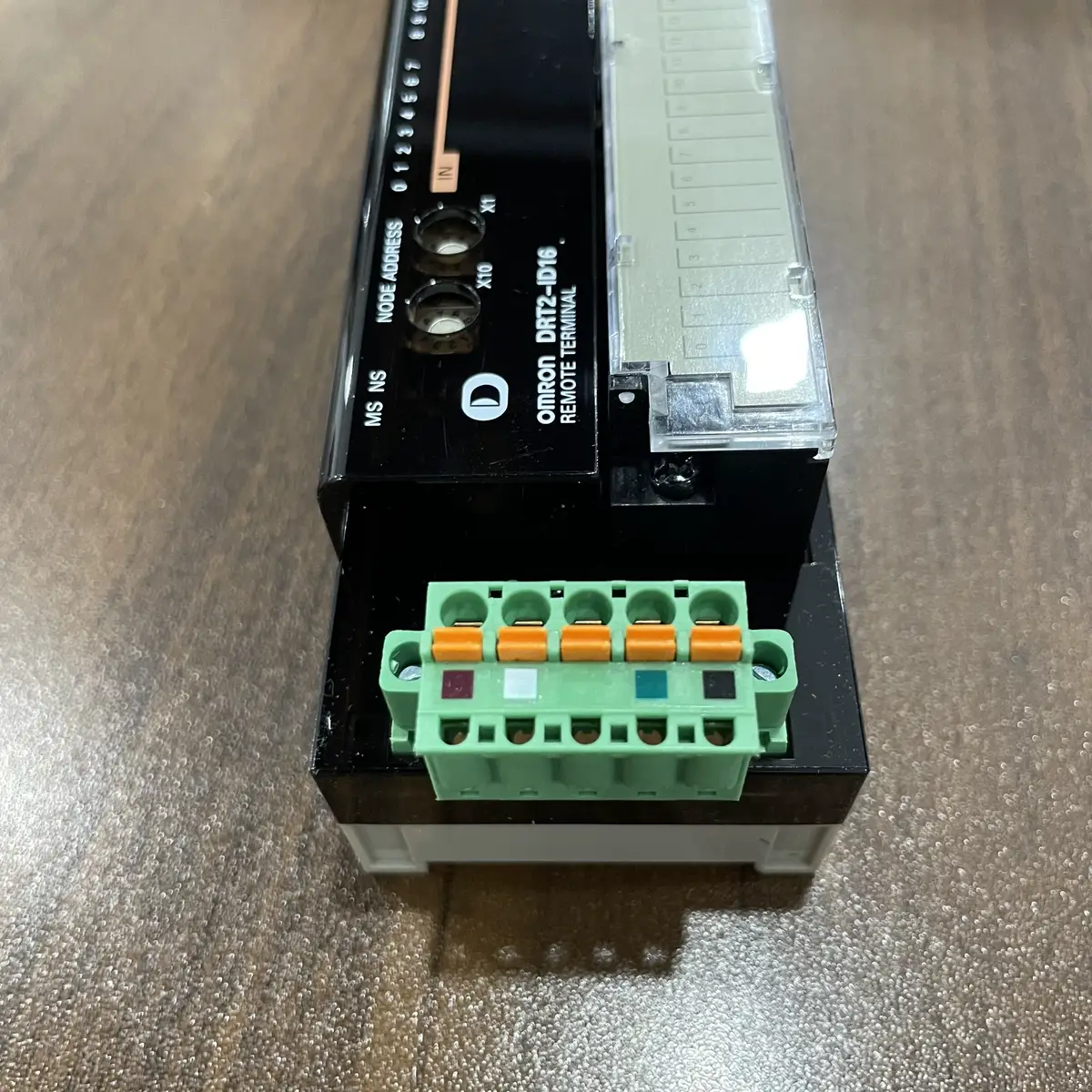

Omron DRT2-ID16 DeviceNet Remote I/O 16-Point Input
Omron DRT2-ID16 is a 16-point DeviceNet remote I/O input module for distributed digital input systems.
USD 70.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Input Points: 16 points
- Input Voltage: DC24V
- Network: DeviceNet
- Protection: IP20
- Operating Temperature: 0 to +55°C
- Mounting: DIN rail
Distributed Input Collection for DeviceNet Architectures
The DRT2-ID16 enables field-level digital input collection over DeviceNet, reducing centralized panel wiring and supporting modular machine design. It is suited to installations where sensor groups are physically distant from the main controller.
16-Channel Digital Input Concentration
Multiple field sensors can be aggregated into a single remote module, simplifying harness routing and making cabinet layouts cleaner in distributed systems.
DeviceNet-Based Network Integration
As a DeviceNet slave module, DRT2-ID16 fits legacy and established industrial networks where deterministic data exchange and rugged fieldbus practices are required.
Maintenance and Expansion Benefits
Distributed I/O architectures reduce troubleshooting complexity by localizing wiring points and enabling incremental expansion at machine sections.
Typical Applications
- Collects multiple discrete field signals near equipment
- Lowers cable tray congestion and installation time
- Supports modular machine section commissioning
- Improves diagnostics by zone-oriented I/O grouping
- Extends legacy network value in retrofit projects
- Simplifies future sensor expansion
Buying Checklist
- 16-channel input density in a remote module format
- Good fit for existing DeviceNet installations
- Reduces centralized wiring complexity
- Supports modular and serviceable automation design
- Reliable Omron remote I/O ecosystem
Technical Specifications
| Model | DRT2-ID16 |
|---|---|
| Series | DRT2 |
| Type | DeviceNet Remote I/O Input |
| Input Points | 16 points |
| Input Voltage | DC24V |
| Network | DeviceNet |
| Protection | IP20 |
| Operating Temperature | 0 to +55°C |
| Mounting | DIN rail |
Frequently Asked Questions
What network does this module use?
DeviceNet device-level network. Connect to DeviceNet master in PLC.
How many nodes can I connect?
Up to 64 nodes on DeviceNet network. Includes all DeviceNet devices.
Do I need to configure this module?
Yes, configure node address via DIP switches. I/O allocation automatic in PLC configuration.
What's the maximum cable length?
DeviceNet: 500m at 125kbps. Shorter at higher baud rates.
