SKU: E2B-M12KN05-WZ-B1

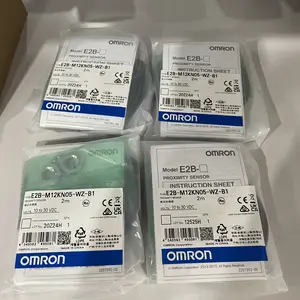

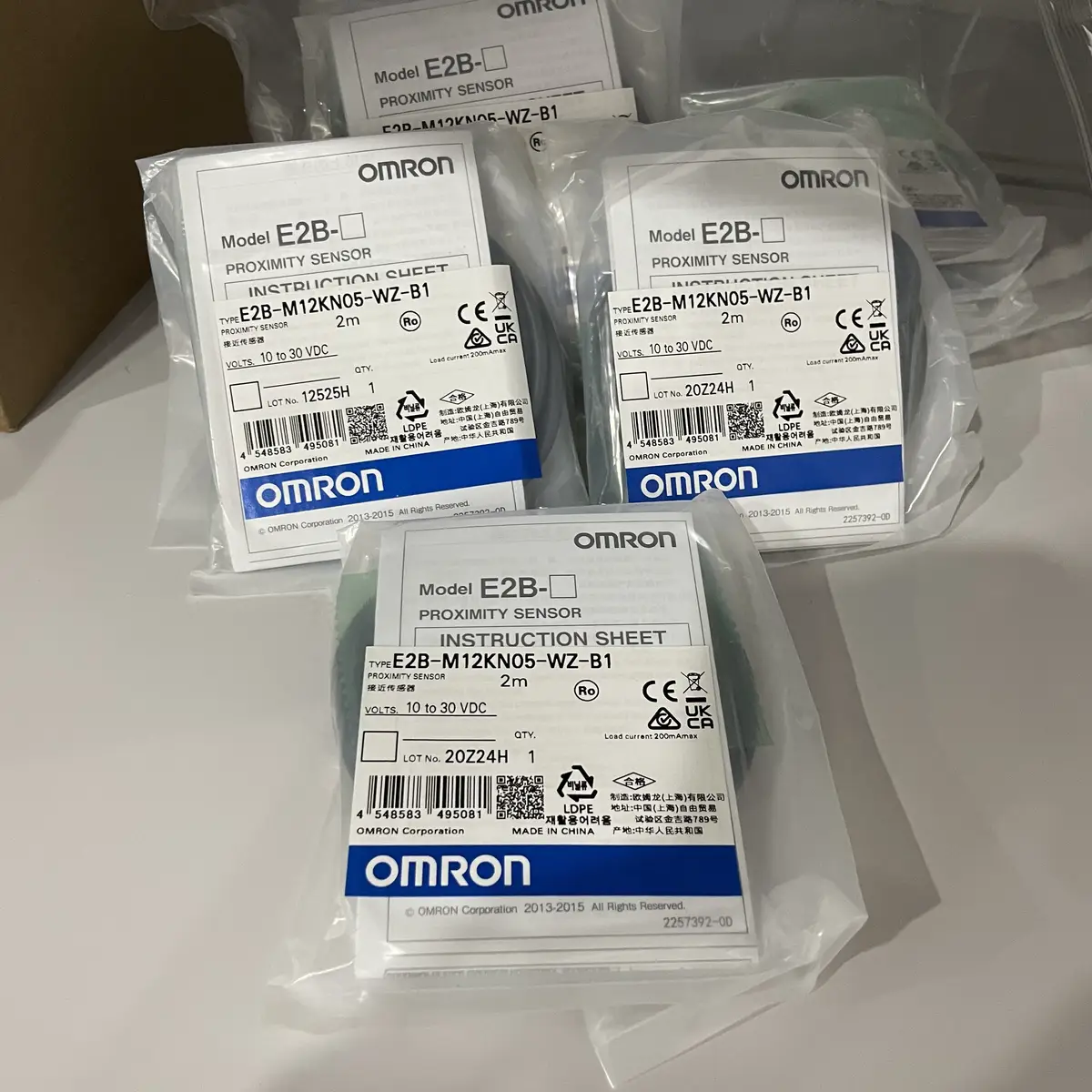

Omron E2B-M12KN05-WZ-B1 Inductive Proximity Sensor M12 5mm NPN Pre-wired
Omron E2B-M12KN05-WZ-B1 is an M12 inductive proximity sensor with 5mm sensing distance, NPN output, pre-wired cable for reliable metal detection.
USD 8.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- M12 inductive sensor body for compact machine integration
- Non-contact metal detection for reliable position feedback
- Suitable for high-cycle industrial automation applications
- Supports stable repetitive switching behavior
- Practical for replacing contact-based limit detection
- Good fit for standardized OEM sensor architectures
M12 Inductive Detection for Compact and Reliable Industrial Sensing
The E2B-M12KN05-WZ-B1 provides stable metal target detection in applications where compact form factor and robust switching are required. It is suitable for fixtures, conveyors, and actuator endpoint sensing in high-cycle machine environments. This sensor supports consistent control signals while reducing wear compared with mechanical contact devices.
Typical Applications
- Detecting metal parts in assembly fixtures
- Monitoring cylinder and actuator endpoints
- Providing machine interlock position signals
- Replacing worn mechanical switch points
- Standardizing M12 detection channels in OEM systems
- Improving reliability in repetitive control cycles
Buying Checklist
- Compact M12 package suits dense machine layouts
- Non-contact sensing reduces wear and maintenance burden
- Reliable for repetitive industrial position monitoring
- Practical spare for common inductive sensor points
- Cost-effective component for broad automation use
Technical Specifications
| Model | E2B-M12KN05-WZ-B1 |
|---|---|
| Series | E2B |
| Type | Inductive Proximity Sensor |
| Size | M12 (12mm diameter) |
| Sensing Distance | 5mm (non-shielded) |
| Output Type | NPN Open Collector |
| Supply Voltage | DC12-24V ±10% |
| Load Current | 200mA max |
| Response Time | 1ms max |
| Cable Length | 2m pre-wired |
| Protection | IP67 |
| Operating Temperature | -25 to +70°C |
| Material | PBT housing |
| Mounting | Non-flush (non-shielded) |
| Indicator | Operation LED (orange) |
Frequently Asked Questions
What's the difference between shielded and non-shielded?
Non-shielded (this model): longer sensing distance, requires non-metallic mounting surface around sensor face. Shielded: can be mounted flush with metal, shorter sensing distance. Choose based on mounting constraints.
Can I use this sensor in wet environments?
Yes, IP67 rating provides dust-tight and temporary water immersion protection. Suitable for washdown areas, outdoor use (with proper enclosure), and wet industrial environments.
What metals can this sensor detect?
Detects all metals. Standard sensing distance is for mild steel. For other metals: stainless steel (70% of rated), brass (60%), aluminum (50%), copper (45%). Apply correction factors for actual sensing distance.
How do I wire this NPN sensor?
Brown wire to DC+, blue wire to DC-, black wire to load (PLC input). Load connects between black wire and DC+. Sensor switches DC- (sinking output).
