SKU: E2E-C03N02-WC-B1 2M

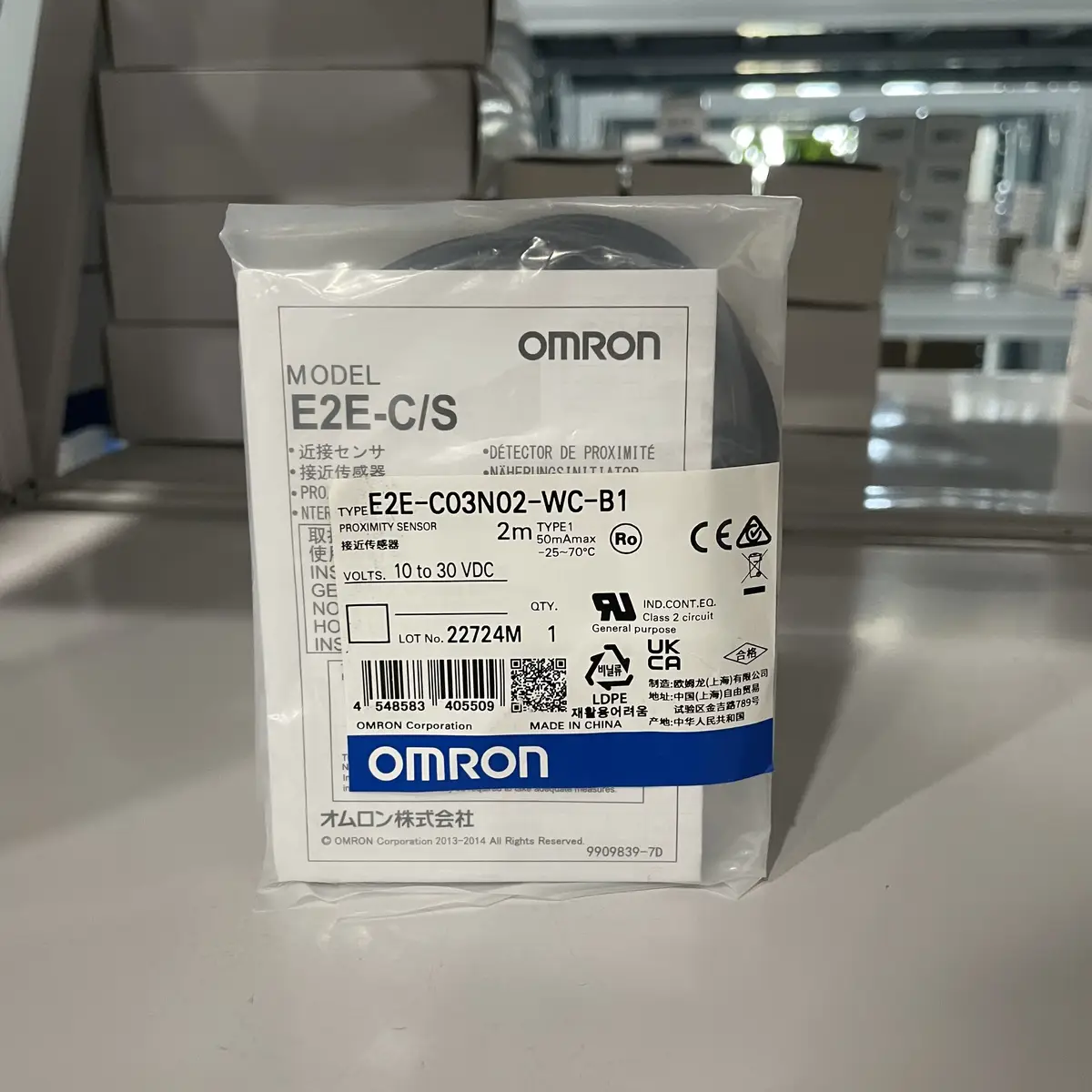

Omron E2E-C03N02-WC-B1 2M Inductive Proximity Sensor M3 2mm 2m Cable
Omron E2E-C03N02-WC-B1 2M is an M3 miniature inductive proximity sensor with 2mm sensing distance, NPN output, 2m cable for very compact metal detection.
USD 36.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Size: M3 (3mm diameter)
- Sensing Distance: 2mm
- Output Type: NPN Open Collector
- Supply Voltage: DC12-24V
- Cable Length: 2m
- Protection: IP67
Compact Inductive Sensing for Short-Range Metal Detection
The E2E-C03N02-WC-B1 2M is designed for reliable non-contact detection of metallic objects in constrained machine layouts. It is commonly used for positioning, counting, and end-of-stroke confirmation tasks.
2 mm Detection for Precision Tasks
Short sensing distance improves positional repeatability in mechanisms where tight trigger points are required.
PNP Output for PLC Compatibility
The PNP transistor output interfaces with many industrial input modules and simplifies integration in standard control architectures.
Industrial Durability in Compact Form
The E2E family is widely used in automation due to robust sensing performance and practical replacement workflows.
Typical Applications
- Detects metallic targets without contact
- Improves repeatability vs mechanical switches
- Supports compact installation near moving parts
- Provides stable trigger signal to PLC logic
- Reduces wear in high-cycle mechanisms
- Enables fast replacement with standardized sensor family
Buying Checklist
- Compact size for tight mechanical spaces
- Reliable 2 mm metal detection
- PNP output fits common PLC schemes
- Non-contact design lowers maintenance
- Widely adopted Omron E2E platform
Technical Specifications
| Model | E2E-C03N02-WC-B1 2M |
|---|---|
| Series | E2E-C |
| Size | M3 (3mm diameter) |
| Sensing Distance | 2mm |
| Output Type | NPN Open Collector |
| Supply Voltage | DC12-24V |
| Cable Length | 2m |
| Protection | IP67 |
| Response Time | 1ms |
| Load Current | 100mA |
| Operating Temperature | -25 to +70°C |
Frequently Asked Questions
What size is this sensor?
M3 (3mm diameter) miniature size for very compact installations and small part detection.
Sensing distance?
2mm for miniature detection applications.
Cable length?
2-meter pre-wired cable.
Output type?
NPN open collector, 100mA load current.
