SKU: E3Z-LR86

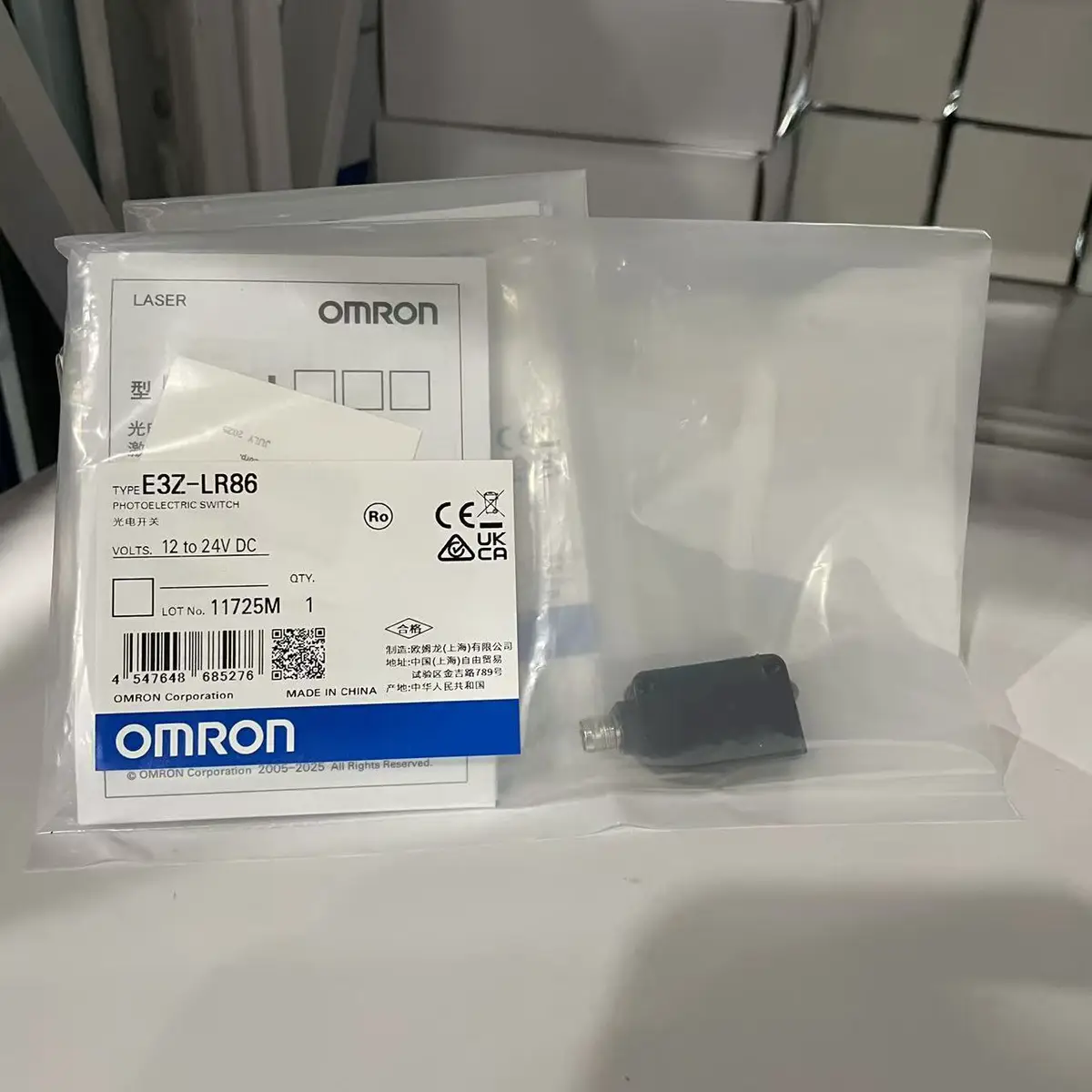

Omron E3Z-LR86 Retro-Reflective Laser Photoelectric Sensor 350mm PNP M8
Omron E3Z-LR86 is a retro-reflective laser photoelectric sensor with 350mm range, PNP output, M8 connector, MSR for detecting reflective targets.
USD 103.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 15m class long-range through-beam detection capability
- PNP output for common PLC input integration
- IP67 durability for industrial environmental reliability
- Suitable for conveyors, logistics, and transfer systems
- Supports stable high-cycle presence sensing
- Improves detection confidence over long installation distances
Long-Range Through-Beam Sensing for Stable High-Speed Detection
The E3Z-LR86 supports dependable object detection across longer distances where compact diffuse sensors are insufficient. Its through-beam principle helps maintain stable switching in conveyor, logistics, and transfer lines. This sensor is suitable for high-cycle environments that require consistent detection over extended spans with minimal false triggering.
Typical Applications
- Detecting cartons on long conveyor sections
- Monitoring pallet transfer lanes
- Triggering sortation events across wide spans
- Replacing short-range sensors in large machine layouts
- Standardizing long-range detection points in OEM systems
- Improving reliability in high-throughput logistics lines
Buying Checklist
- Long range capability supports wide machine geometries
- Through-beam design improves detection stability
- IP67 durability suits demanding production environments
- Strong fit for high-speed material handling applications
- Practical solution for long-distance sensing requirements
Technical Specifications
| Model | E3Z-LR86 |
|---|---|
| Series | E3Z |
| Sensing Range | Up to 350mm |
| Output Type | PNP |
| Connection | M8 connector |
| Supply Voltage | DC12-24V |
| Protection | IP67 |
| Light Source | Red Laser Class 1 |
| MSR Function | Yes |
| Response Time | 1ms |
Frequently Asked Questions
Sensing range?
Up to 350mm with reflector.
Output type?
PNP open collector.
MSR function?
Yes, for shiny object detection.
Connector?
M8 4-pin connector.
