SKU: NA5-12W101B-V1

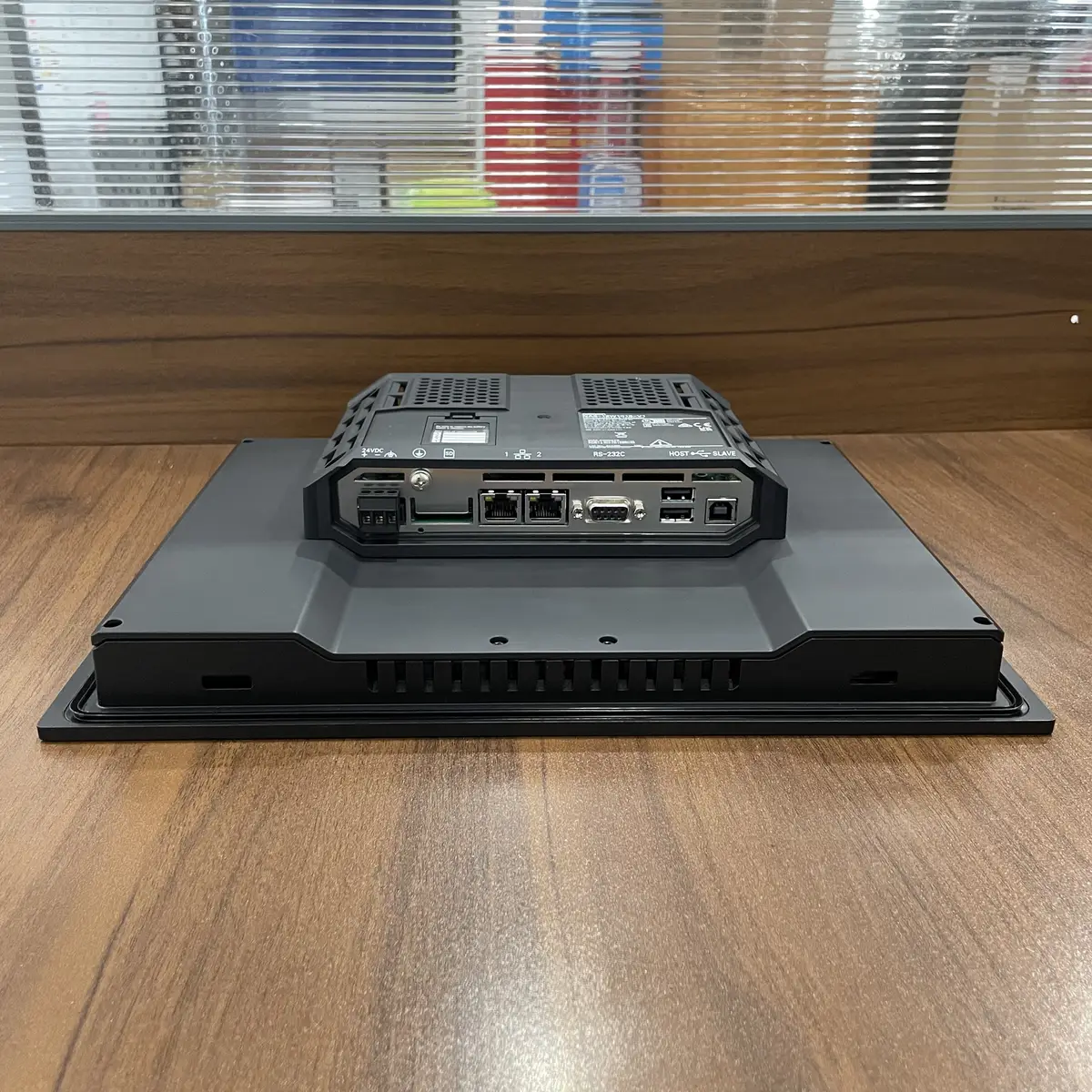

Omron NA5-12W101B-V1 12.1 inch HMI Touchscreen Panel
12.1 inch widescreen HMI with 1280x800 resolution, EtherNet/IP, USB, and advanced visualization
USD 1350.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 12.1 inch widescreen TFT LCD with 1280x800 resolution
- LED backlight for long life (50,000+ hours) and bright display
- Built-in EtherNet/IP for PLC and network connectivity
- Multiple USB ports for data logging and peripheral connection
- Resistive touchscreen works with gloves or stylus
- IP66F front panel rating for harsh environments
- Supports advanced graphics, animations, and trends
- Data logging to USB or network locations
Premium Widescreen HMI for Advanced Machine Visualization
The Omron NA5-12W101B-V1 is a high-performance 12. 1 inch widescreen HMI designed for complex machine visualization and operator interaction. Featuring a bright 1280x800 TFT LCD display with LED backlight, it delivers crisp graphics and clear data presentation even in challenging lighting conditions. The NA5 series runs on a powerful hardware platform supporting advanced visualization, data logging, and connectivity features. With built-in EtherNet/IP, USB ports, and support for multiple communication protocols, it integrates seamlessly with Omron PLCs and third-party devices. The resistive touchscreen ensures reliable operation even with gloves, while the IP66F front panel rating provides protection against water and dust in industrial environments.
Typical Applications
- Packaging machinery operator interface
- Material handling system control panels
- Food processing equipment HMI
- Pharmaceutical manufacturing visualization
- Water treatment plant monitoring
- Automotive assembly line displays
- Building management system interfaces
Buying Checklist
- Verify panel cutout dimensions before ordering for retrofit applications
- Ensure 24VDC power supply capacity meets HMI requirements (18W typical)
- Confirm communication protocol compatibility with PLC (EtherNet/IP standard)
- Consider screen size visibility from operator distance
- Plan USB access for data logging and recipe transfers
- Check ambient lighting conditions for optimal display brightness
Technical Specifications
| Series | NA5 |
|---|---|
| Display Size | 12.1 inches |
| Display Type | TFT LCD color |
| Resolution | 1280 x 800 pixels (WVGA) |
| Backlight | LED (50,000+ hours life) |
| Touch Panel | Analog resistive film |
| Communication Ports | 2x Ethernet (EtherNet/IP), 2x USB |
| Memory | 512 MB RAM, 1 GB Flash |
| Power Supply | 24VDC (19.2-28.8VDC) |
| Power Consumption | Typically 18W |
| Front Panel Protection | IP66F |
| Operating Temperature | 0C to 55C |
| Mounting | Panel mount |
| Dimensions | Approx. 335 x 258 x 57 mm |
| Programming Software | CX-Designer, Sysmac Studio |
Frequently Asked Questions
What software is needed to program the NA5-12W101B-V1?
The NA5 series can be programmed using CX-Designer (traditional) or Sysmac Studio (newer, unified platform). Both support the NA5 series, but Sysmac Studio is recommended for new projects as it provides integrated PLC and HMI programming.
Can this HMI connect to non-Omron PLCs?
Yes, the NA5 series supports multiple communication drivers for third-party PLCs including Allen-Bradley, Siemens, Modbus, and others via EtherNet/IP or serial connections. Check the driver compatibility list for specific models.
Is the touchscreen resistant to chemicals and oils?
Yes, the front panel has IP66F rating providing protection against water jets and oil splashes. The screen surface is also chemically resistant to common industrial cleaning agents, making it suitable for food and pharmaceutical environments.
How do I transfer projects to the HMI?
Projects can be transferred via Ethernet (network download), USB memory stick, or USB cable from PC. For production environments, Ethernet download is recommended for speed and convenience.
