SKU: NB5Q-TW00B-V1

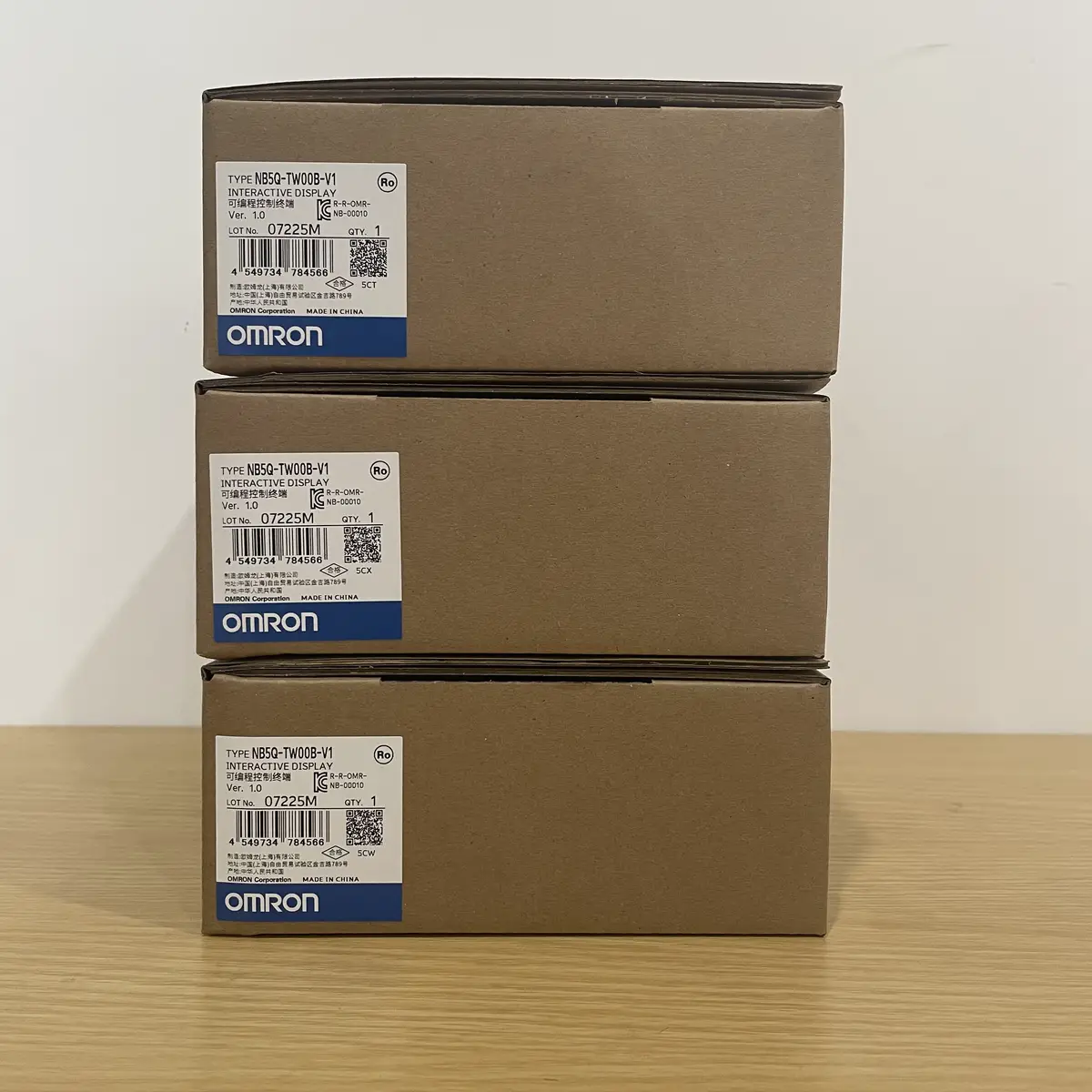

Omron NB5Q-TW00B-V1 NB Series HMI 5.6 Inch
Omron NB5Q-TW00B-V1 is a 5.6 inch NB series HMI with QVGA display, updated model with enhanced features.
USD 152.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- NB-series compact HMI platform
- 5.6-inch class display for space-constrained panels
- Supports operation, alarms, and diagnostic workflows
- Integrates with PLC communication and tag mapping
- Useful for recipe/setpoint entry in compact machines
- Practical for retrofit modernization and new builds
Compact NB Operator Interface for Practical Machine Control
NB5Q-TW00B-V1 belongs to Omron NB HMI family and is used where compact panel space must still deliver clear operator interaction. A 5. 6-inch class interface is commonly selected for machine modules requiring mode control, alarm handling, setpoint entry, and maintenance diagnostics without large cabinet footprint. This model is frequently deployed in packaging, assembly, and utility equipment with moderate UI complexity. Engineering design should confirm communication mapping with PLC tags, page navigation structure, and user access permissions. Installation planning includes panel cutout verification and cable service routing. NB5Q-TW00B-V1 is typically chosen for reliable day-to-day operation where maintainable HMI projects and practical screen density are the primary goals.
Typical Applications
- Operator mode control on compact machines
- Alarm display and acknowledgment workflows
- Setpoint and recipe entry during changeovers
- Maintenance diagnostics pages for service teams
- Runtime counters and machine status display
- Retrofit replacement of older compact operator panels
Buying Checklist
- Validate required UI complexity for 5.6-inch layout.
- Confirm communication compatibility with installed controller.
- Check panel cutout and mounting depth constraints.
- Define user roles and password strategy before launch.
- Maintain project backups for quick field recovery.
Technical Specifications
| Model | NB5Q-TW00B-V1 |
|---|---|
| Series | NB5Q |
| Screen Size | 5.6 inch |
| Display Type | STN Color LCD |
| Resolution | 320 x 240 (QVGA) |
| Communication | Serial |
| Supply Voltage | DC24V |
| Memory | 64MB |
| Operating Temperature | 0 to +55°C |
| Protection | IP65 (front panel) |
| Software | NB-Designer (free) |
Frequently Asked Questions
What's the difference between TW00B and TW00B-V1?
V1 indicates updated version with enhanced features or improved hardware. Same screen size. Check Omron documentation for specific improvements.
Can this HMI connect to barcode reader?
Yes, via serial port. Configure barcode reader protocol in NB-Designer. Display scanned data, trigger actions based on barcode.
What's the maximum data logging capacity?
Depends on memory and logging interval. Typical: thousands of data points. For extensive logging, use external storage or SCADA system.
Can I password-protect screens?
Yes, NB series supports user levels, password protection. Restrict access to certain screens or functions based on user level.
