SKU: NJ101-1000

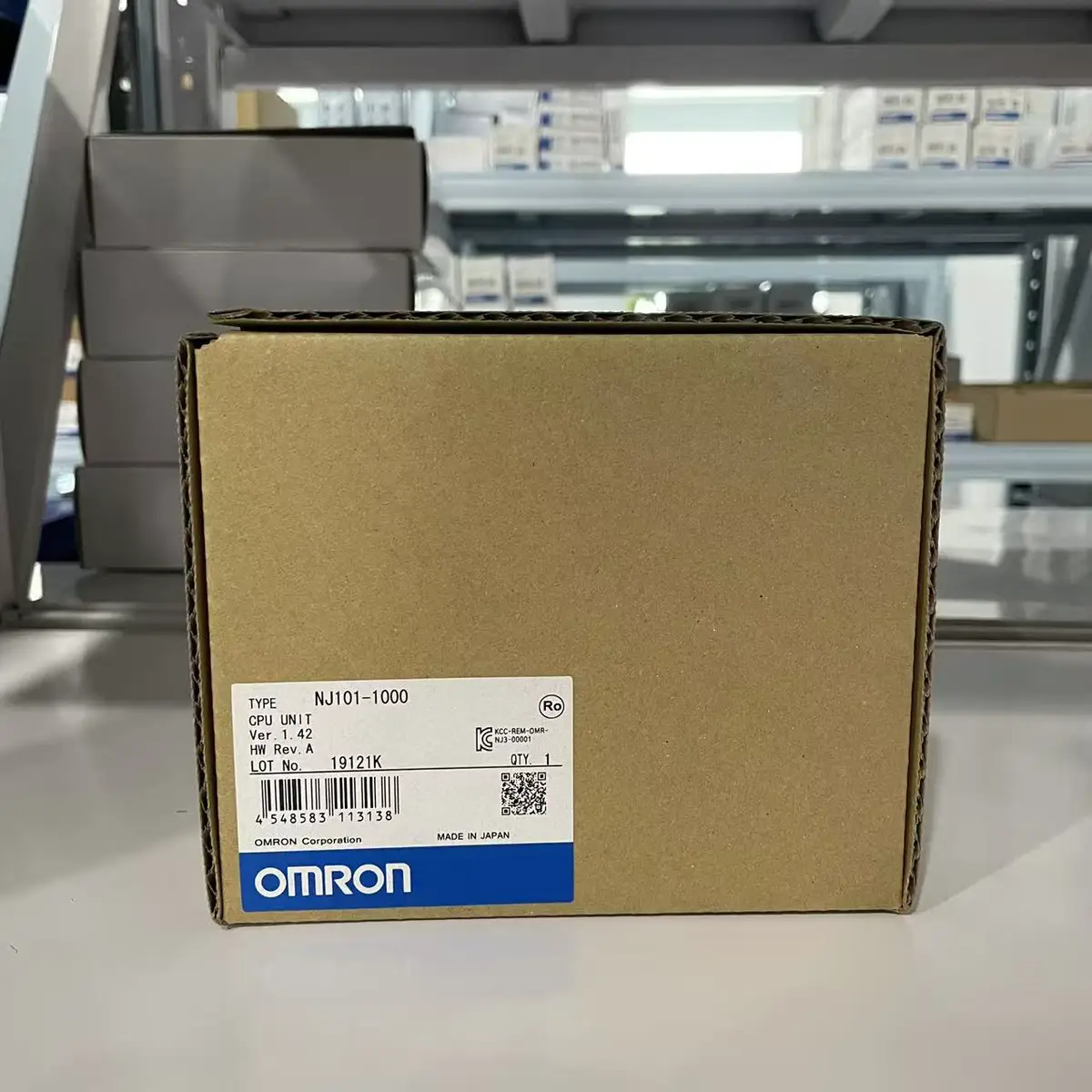

Omron NJ101-1000 Machine Automation Controller CPU Unit
Omron NJ101-1000 is an NJ series machine automation controller combining PLC, motion control, and visualization in one platform.
USD 775.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- NJ-series CPU architecture for deterministic machine control
- Compact controller form for space-efficient panel design
- Supports Sysmac ecosystem integration and scalability
- Suitable for OEM platform standardization strategies
- Provides reliable logic execution in industrial automation
- Useful for modernization of older controller platforms
Compact NJ Control Core for Scalable High-Performance Automation
The NJ101-1000 serves as a central controller for machines requiring dependable sequence control and structured system integration. It is suited for OEM equipment that benefits from Sysmac ecosystem consistency and future expansion capability. This CPU supports practical long-term platform planning in applications where uptime and maintainability are key.
Typical Applications
- Running machine sequence logic in packaging lines
- Coordinating multi-station control in assembly systems
- Supporting connected automation architecture in OEM machines
- Upgrading legacy PLC cores to modern Sysmac platforms
- Standardizing controller hardware across equipment variants
- Improving long-term maintainability in production assets
Buying Checklist
- Strong platform for modern machine control architecture
- Compact format with scalable integration potential
- Reliable controller behavior for uptime-focused operations
- Good fit for OEM standard platform strategies
- Practical replacement and expansion path in Sysmac systems
Technical Specifications
| Model | NJ101-1000 |
|---|---|
| Series | NJ |
| Type | Machine Automation Controller |
| Program Capacity | 20K steps |
| Motion Axes | 4 axes (built-in) |
| EtherCAT Ports | 2 ports (100 Mbps) |
| Ethernet Ports | 2 ports (10/100 Mbps) |
| USB Ports | 2 ports (device, host) |
| Max I/O Points | 2560 points |
| Cycle Time | 4ms (typical) |
| Motion Cycle | 0.5ms |
| Supply Voltage | 24VDC |
| Current Consumption | 500mA at 24VDC |
| Operating Temperature | 0 to +55°C |
| Software | Sysmac Studio |
| Mounting | DIN rail |
Frequently Asked Questions
What's the difference between NJ and NX series?
NJ: integrated controller with CPU, motion, communication in one unit. NX: modular I/O system that connects to NJ or third-party EtherCAT masters. NJ = complete controller, NX = distributed I/O.
What programming languages does NJ support?
IEC 61131-3 languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC), Instruction List (IL). ST and FBD ideal for motion control.
Can this controller run vision systems?
NJ101 is PLC-focused. For integrated vision, consider NJ501 with FQ vision integration or FH series vision system. NJ can communicate with external vision via Ethernet.
How do I program the NJ controller?
Sysmac Studio software: single environment for PLC programming, motion configuration, HMI design, and network setup. Connect via USB or Ethernet. Download program to controller.
