SKU: NS15-TX01B-V2

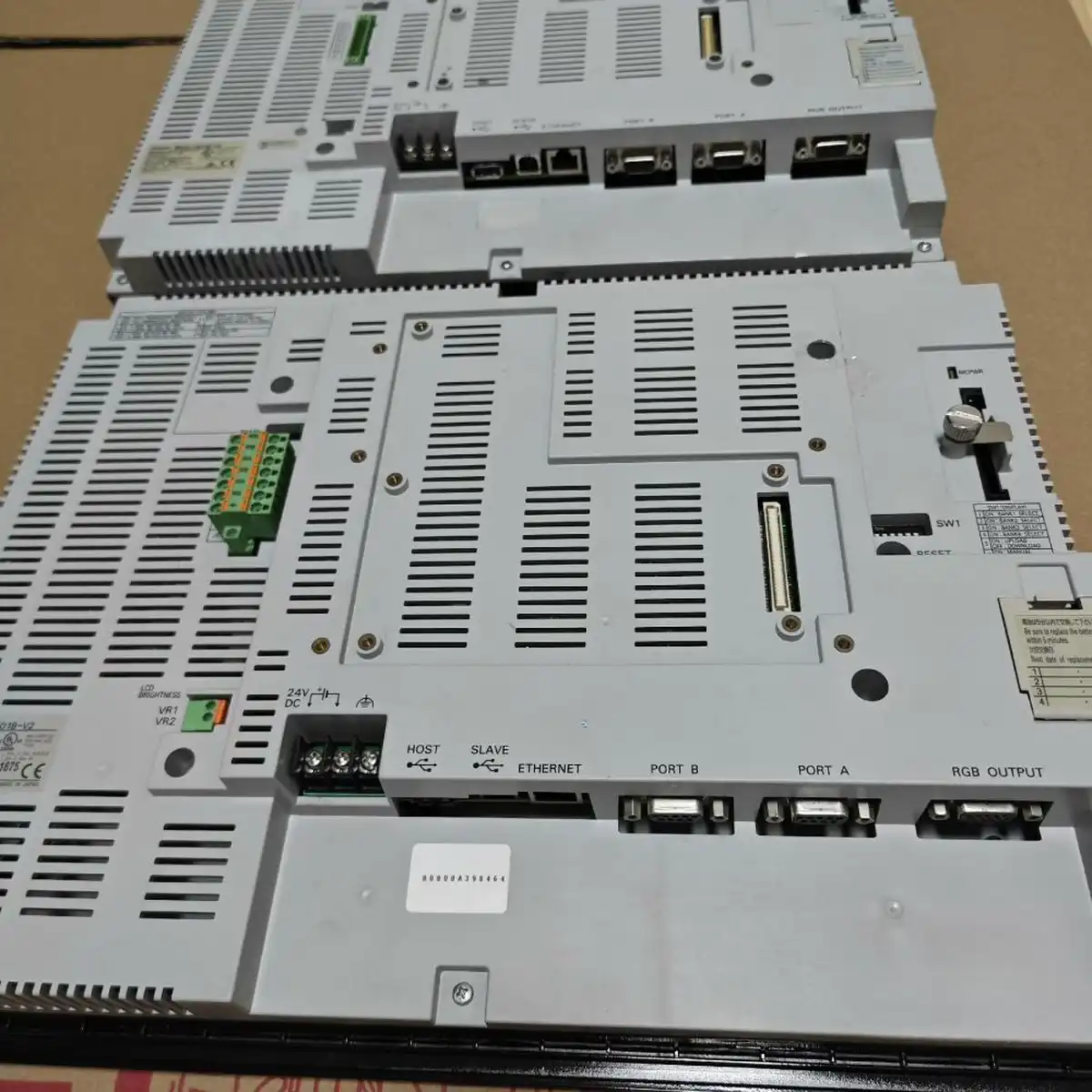

Omron NS15-TX01B-V2 NS Series 15-Inch XGA Touch Screen HMI
Omron NS15-TX01B-V2 is a 15 inch XGA HMI with highest resolution display for complex SCADA visualization and multi-window operator interfaces.
USD 1580.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 15-inch display class for improved operator visibility
- XGA-resolution interface for clear process graphics
- Touch operation for intuitive machine control interaction
- Suitable for detailed alarms, trends, and diagnostics screens
- Designed for integration with Omron PLC control systems
- Useful for modernizing legacy panels with better usability
Large-Format Operator Interface for Clear and Efficient Machine Operation
The NS15-TX01B-V2 provides a spacious touch interface that helps operators monitor process status, alarms, and machine controls with better readability. It is suitable for production equipment requiring detailed screens, recipe workflows, and multi-window diagnostics. This HMI supports cleaner operation and maintenance routines in environments where clear human-machine interaction directly impacts uptime and efficiency.
Typical Applications
- Displaying machine status and diagnostics for operators
- Managing alarms and event acknowledgment workflows
- Running recipe or format selection interfaces
- Visualizing trends and production counters on large panels
- Upgrading small legacy HMIs to larger operator interfaces
- Standardizing high-visibility control screens in OEM platforms
Buying Checklist
- Large display improves operator situational awareness
- XGA clarity supports more informative control screens
- Enhances usability on complex machine processes
- Strong fit for modernization of legacy interface panels
- Supports faster troubleshooting through better visualization
Technical Specifications
| Model | NS15-TX01B-V2 |
|---|---|
| Series | NS15 |
| Screen Size | 15 inch |
| Display Type | TFT Color LCD |
| Resolution | 1024 x 768 pixels (XGA) |
| Communication | Ethernet, 2x Serial |
| Supply Voltage | DC24V |
| Protection | IP65 front panel |
| Operating Temperature | 0 to +55°C |
| Dimensions | 398 x 307 x 57mm |
| Software | CX-Designer |
Frequently Asked Questions
What applications benefit from 15" display?
Large systems requiring: full P&ID display, multiple trend windows, alarm summary, production dashboard, and control panel simultaneously. Common in: water/wastewater SCADA, building management, large packaging lines, central control rooms.
Can I display full-size schematics?
Yes, 1024x768 XGA resolution displays full-size electrical schematics, P&IDs, and machine layouts without excessive zooming. Ideal for troubleshooting and maintenance screens.
What's the viewing distance for 15" HMI?
Optimal viewing: 0.5-2 meters. Large display and high resolution readable from control room distance. Consider touch extension or mouse/keyboard for distant operation.
Can I connect keyboard and mouse?
Yes, via USB port (on some models) or use virtual keyboard on screen. Useful for data entry (batch numbers, quality data) and precise cursor control for complex graphics.
