SKU: NS5-SQ10B-ECV2

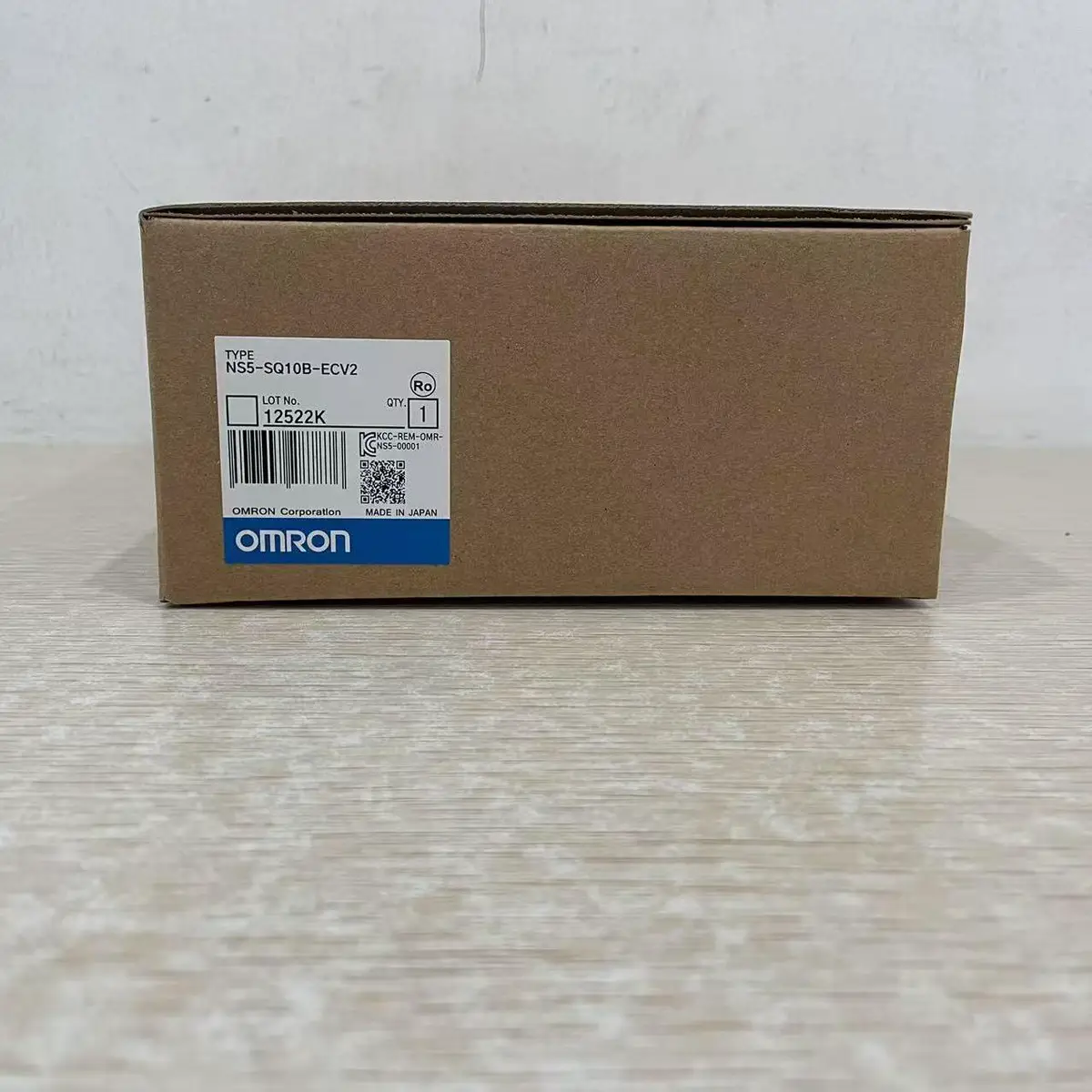

Omron NS5-SQ10B-ECV2 NS Series HMI 5.7 Inch
Omron NS5-SQ10B-ECV2 is a 5.7 inch NS series HMI with enhanced features for compact operator interface.
USD 415.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- NS-series compact HMI platform
- 5.7-inch display for space-limited panels
- Supports control, alarms, and diagnostics tasks
- Integrates with PLC tags and communication mapping
- Useful for recipe and parameter entry screens
- Suitable for retrofit and new-build machine UIs
Compact NS Operator Panel for Practical Daily Operations
NS5-SQ10B-ECV2 belongs to Omron NS HMI family and is used where panel space is constrained but robust operator interaction is still required. A 5. 7-inch class interface supports machine mode control, alarm acknowledgment, setpoint entry, and service diagnostics in packaging and assembly equipment. This model is often selected for standardized OEM panels and retrofit updates requiring dependable HMI behavior. Engineering teams should validate communication mappings, user access levels, and alarm-page clarity to reduce operator errors. Mechanical installation should include cutout verification, cable routing service loops, and environmental suitability checks. NS5-SQ10B-ECV2 is generally chosen for maintainable compact-machine interfaces where stable operation and clear operator workflow are priorities.
Typical Applications
- Machine start/stop and mode selection pages
- Alarm list display and acknowledgement actions
- Setpoint and recipe entry workflows
- Maintenance diagnostics and manual controls
- Status pages with counters and runtime indicators
- Replacement of legacy compact HMI devices
Buying Checklist
- Check UI complexity versus 5.7-inch readability limits.
- Verify PLC protocol support and tag volume constraints.
- Confirm panel cutout fit and cabinet depth clearance.
- Define user permissions and operation security strategy.
- Keep project backups for rapid field replacement.
Technical Specifications
| Model | NS5-SQ10B-ECV2 |
|---|---|
| Series | NS5 |
| Screen Size | 5.7 inch |
| Display Type | STN Color LCD |
| Resolution | 320 x 240 (QVGA) |
| Communication | Ethernet, Serial |
| Supply Voltage | DC24V |
| Memory | 16MB |
| Operating Temperature | 0 to +55°C |
| Protection | IP65 (front panel) |
| Software | CX-Designer |
Frequently Asked Questions
What does EC in model number mean?
EC indicates Ethernet connectivity. NS5-SQ10B-EC has Ethernet port. Standard NS5-SQ10B has serial only.
Can this HMI connect to multiple PLCs?
Yes, NS5 can connect to multiple PLCs via Ethernet or serial. Different protocols, different manufacturers.
Can I backup HMI program?
Yes, CX-Designer can upload/download HMI program. Backup to PC or memory card. Restore when needed.
What's the maximum number of alarms?
NS5 supports up to 500 alarm messages. Sufficient for most compact HMI applications.
