SKU: R88D-KN06F-ECT-Z

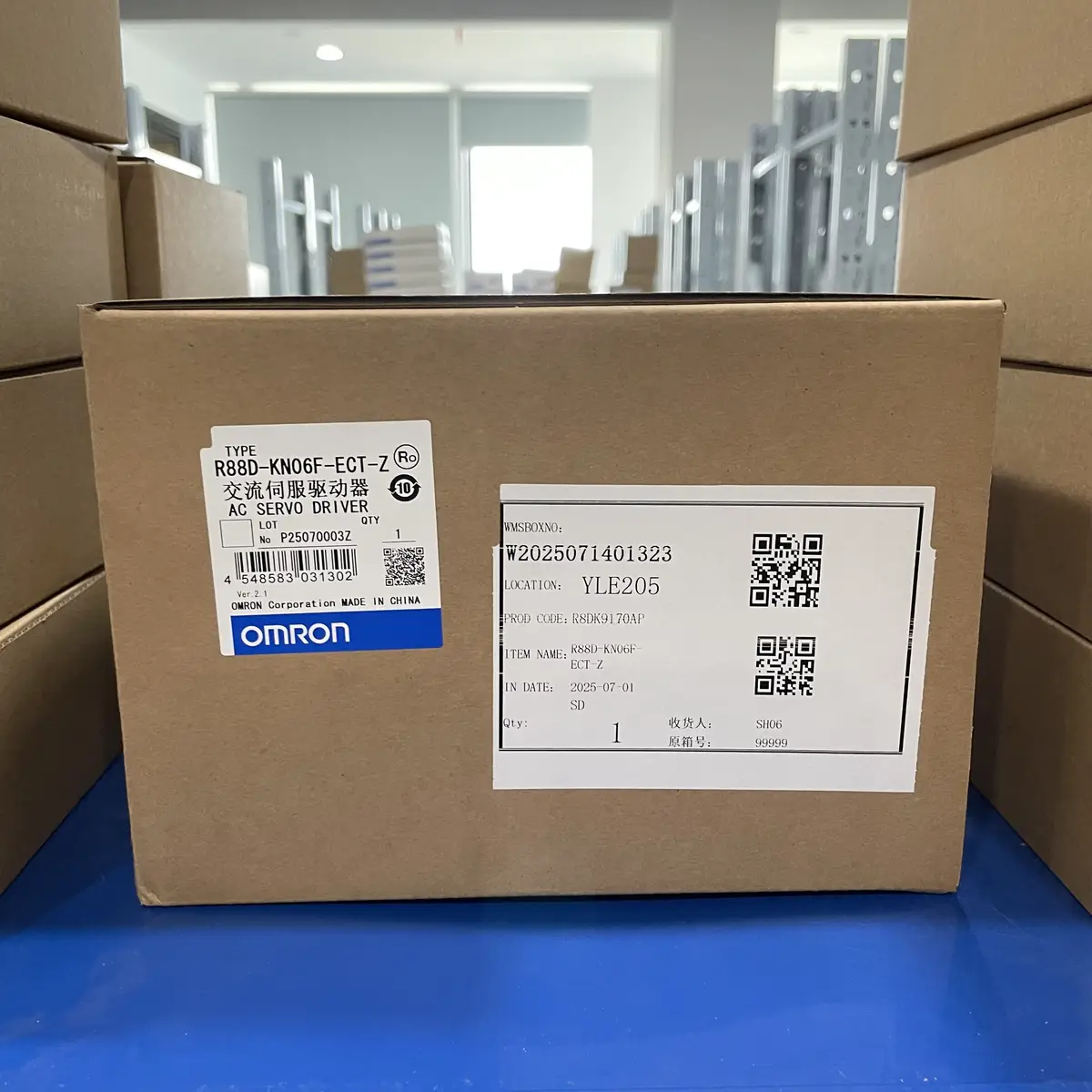

Omron R88D-KN06F-ECT-Z Accurax G5 Servo Drive, 600 W, 400 VAC, EtherCAT, with Safety
Omron R88D-KN06F-ECT-Z Accurax G5 servo drive, 600 W output, three-phase 400 VAC, EtherCAT, with STO/SS1/SLS safety functions (-Z variant) for safety-rated motion axes.
USD 515.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 600 W continuous output at 3000 rpm motor class
- Three-phase 380–480 VAC input (industrial 400 V class)
- EtherCAT CoE — CIA 402 drive profile
- Integrated safety: STO, SS1, SLS per IEC 61800-5-2 (SIL 3 / PL e capable)
- Safety activated over EtherCAT FSoE (Fail Safe over EtherCAT)
- 20-bit absolute encoder feedback with the matching R88M-K motor
- One-button auto-gain tuning plus manual tuning
- Vibration-suppression mode for low-rigidity mechanisms
600 W 400 V G5 servo drive with EtherCAT and integrated safety
The Omron R88D-KN06F-ECT-Z is a 600 W, three-phase 400 VAC G5 servo drive with EtherCAT and the safety option. The "KN" prefix in the R88D ordering code denotes the 400 V class — the industrial three-phase supply used in most European panels. The "06" gives 600 W output, "F" denotes the three-phase 400 V input variant, "ECT" EtherCAT, and "-Z" the safety option.
The 400 V class is preferred for higher-power G5 axes (typically 1 kW and up) because the input current is roughly half of the equivalent 200 V drive — smaller breakers, smaller contactors, and thinner cable. At 600 W the 400 V class is borderline but is commonly used to standardise the cabinet on one input voltage across all servo drives.
The "-Z" safety option implements STO (Safe Torque Off), SS1 (Safe Stop 1) and SLS (Safely Limited Speed) per IEC 61800-5-2. STO cuts drive output torque without removing power; SS1 ramps the axis to a controlled stop and then cuts torque; SLS monitors shaft speed and trips if the configured limit is exceeded. These functions are activated over EtherCAT FSoE (Fail Safe over EtherCAT) and meet SIL 3 / PL e when wired into a suitable safety controller.
Matching motor: R88M-K40030H (no brake) or R88M-K40030H-B (with brake), both 200 V / 400 V class 3000 rpm. The 20-bit absolute encoder in the motor pairs with the drive's high-resolution feedback loop. The drive supports auto-gain tuning, manual tuning, and a full vibration-suppression mode for low-rigidity mechanisms.
Typical Applications
- Safety-rated motion axes on robotic cells (with FSoE-capable safety controller)
- Press and stamping machines requiring SLS-limited speed for setup mode
- 400 V cabinet standardisation across all G5 axes
- Indexing tables and rotary cutters with STO protection
- High-inertia vertical axes where SS1 controlled-stop matters
Buying Checklist
- Verify the input voltage is 400 V class (KN) and not 200 V class (SN/KT) — they are not interchangeable
- The safety functions require an FSoE-capable safety controller (e.g. Omron NX-SL3300 / NX-SL3500) on the same EtherCAT network
- For a standard drive without safety, order the R88D-KN06F-ECT (no -Z suffix)
- Match the motor to the 400 V 600 W class
- Use Omron's specified EtherCAT cable — generic Cat 5e is not rated for FSoE duty
Technical Specifications
| Series | Accurax G5 (R88D-KN) |
|---|---|
| Model | R88D-KN06F-ECT-Z |
| Drive type | EtherCAT servo drive with safety |
| Continuous output | 600 W |
| Applicable motor | R88M-K40030H / R88M-K40030H-B (3000 rpm) |
| Input voltage | Three-phase 380–480 VAC, 50/60 Hz |
| Control method | PWM sine-wave, IGBT |
| Encoder feedback | 20-bit absolute serial encoder |
| Communication | EtherCAT (CoE, CIA 402 drive profile) |
| Cycle time | 250 µs / 500 µs / 1 ms / 2 ms / 4 ms |
| Safety functions | STO, SS1, SLS per IEC 61800-5-2 |
| Safety bus | EtherCAT FSoE |
| Safety rating | SIL 3 / PL e (with suitable safety controller and wiring) |
| Control modes | PP, PV, PT, HM, IP, CSP, CSV, CST (per CIA 402) |
| Gain tuning | Auto (one-button), manual, vibration-suppression |
| Protective functions | Overcurrent, overload, overvoltage, undervoltage, overspeed, encoder error, regenerative discharge, communication error |
| Operating temperature | 0 °C to +55 °C |
| Storage temperature | -20 °C to +65 °C |
| Mounting | DIN rail or panel mount |
Frequently Asked Questions
What is the difference between -ECT and -ECT-Z?
The -Z variant adds the safety option: STO, SS1, SLS per IEC 61800-5-2, activated over EtherCAT FSoE. The -Z drive is more expensive but required for any application where the drive participates in a functional safety circuit.
What safety controller do I need?
An FSoE-capable safety controller on the same EtherCAT network. The Omron NX-SL3300 / NX-SL3500 safety slices paired with an NX102 / NX502 controller are the typical choice. Third-party FSoE masters are also supported.
Can I retrofit a -Z drive into an existing line that uses standard drives?
Yes — the standard CIA 402 motion control behaviour is identical between the -ECT and -ECT-Z variants. The -Z just adds the FSoE safety layer. Existing motion programs do not need to change.
What is FSoE?
Fail Safe over EtherCAT — a black-channel safety protocol carried as a separate EtherCAT frame. The safety controller and the -Z drive exchange safety PDOs over FSoE while normal motion PDOs continue to flow on the same bus. It is standardised in IEC 61784-3.
