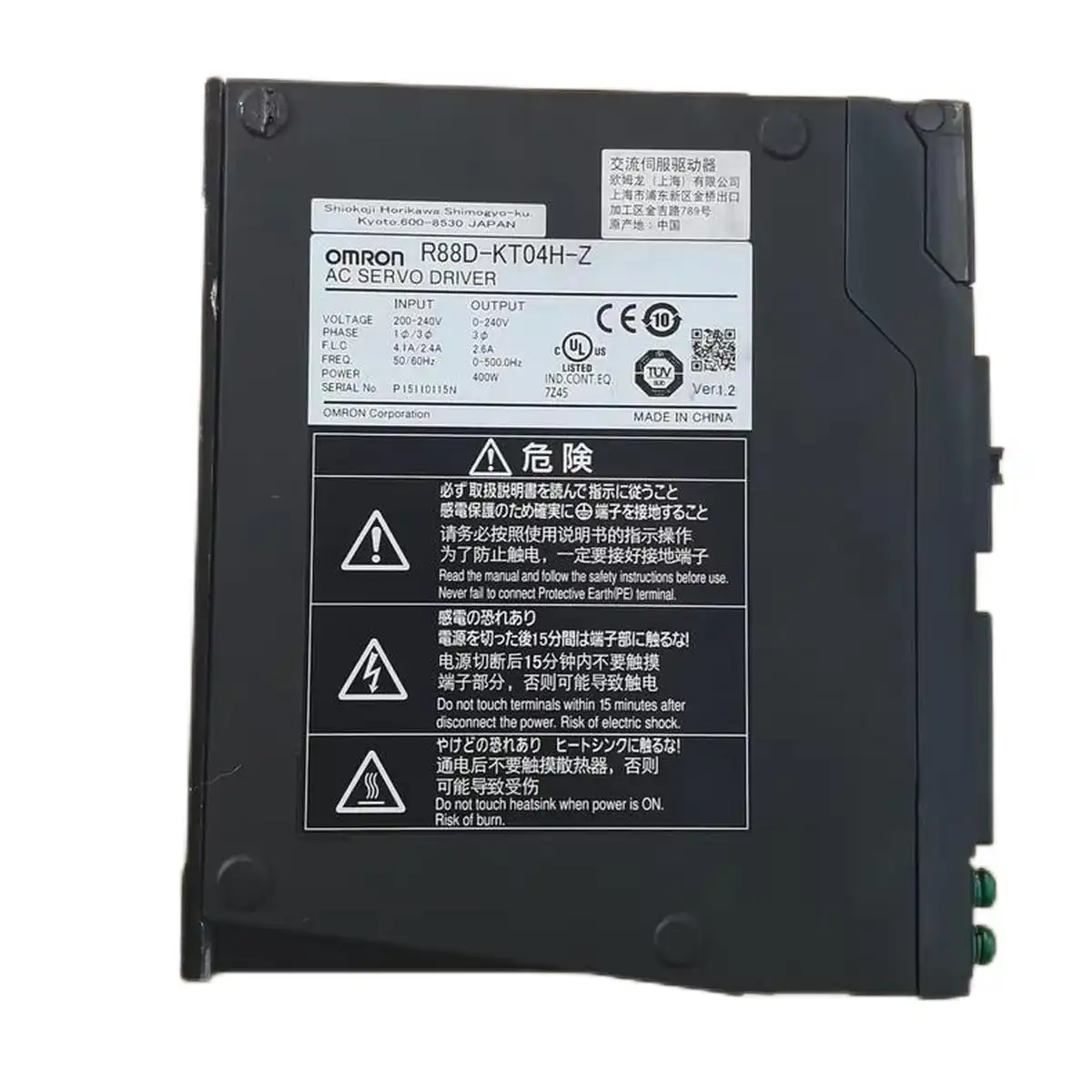

Omron R88D-KT04H-Z Servo Drive 400W 200V G5 Series Analog/Pulse with Safety — front view

SKU: R88D-KT04H-Z

Omron R88D-KT04H-Z Accurax G5 Servo Drive 400 W 200 V with STO

Omron R88D-KT04H-Z Accurax G5 servo drive, 400 W, single-phase 200–240 VAC, analog/pulse command input, with built-in STO/SS1/SLS safety functions for medium-power motion axes.

USD 360.00 per unit, volume discounts available

In stock, ships in 24h
100% genuine Omron
1-year manufacturer warranty
Worldwide delivery

Request a Quote WhatsApp Us

Key Features

400 W rated output for Accurax G5 (R88M-K) servo motors up to 400 W
Single-phase 200–240 VAC input
Analog ±10 V and pulse-train command input
Position, velocity, and torque control modes
20-bit absolute encoder feedback — no homing required on power-up
Built-in functional safety: STO, SS1, SLS — SIL3 / PLe per IEC 61800-5-2
Auto-tuning, vibration suppression, and notch filters
CX-Drive commissioning via USB

01 / Overview

400 W Accurax G5 Servo Drive with Built-in Safety

The Omron R88D-KT04H-Z is a 400 W servo drive from the Accurax G5 family, designed to control Accurax G5 servo motors up to 400 W on single-phase 200–240 VAC supplies. The drive accepts analog ±10 V velocity/torque commands or pulse-train position commands, making it a direct fit for retrofit applications replacing older G-Series or G3-Series drives, and for new systems where the controller is a PLC with analog or pulse outputs.

Three control modes are supported — position, velocity, and torque — selectable per axis. Auto-tuning of gains, real-time load-inertia estimation, and a built-in vibration-suppression filter simplify commissioning on packaging, labelling, and small-assembly machines. The drive reads 20-bit absolute encoders on the matching R88M-K motors, eliminating the need for an origin-return routine on every power-up.

Functional safety is built in. STO (Safe Torque Off), SS1 (Safe Stop 1), and SLS (Safely-Limited Speed) are rated SIL3 / PLe per IEC 61800-5-2, allowing direct integration into category-3 / PL d and higher machine-safety circuits without external contactors or safety relays. The compact book-style chassis saves panel space and side-by-side mounting keeps multi-axis cabinets dense.

Protective functions include overcurrent, overload, overvoltage, undervoltage, regen-overload, encoder-error, and heatsink-overtemperature detection. CX-Drive (Omron's servo commissioning software) handles parameter setup, monitoring, and waveform capture over USB.

Typical Applications

Packaging machinery — labelling, capping, and cut-to-length axes
Conveyor synchronisation and indexing tables
Small assembly and pick-and-place stations
X-Y positioning stages and gantries up to 400 W per axis
Retrofit of legacy G-Series or G3-Series servo systems
Machine-tool accessory drives and feeder mechanisms
Any 200 V class motion axis requiring certified functional safety (STO / SS1 / SLS)

Buying Checklist

Confirm supply: single-phase 200–240 VAC. For three-phase input use the R88D-KT04H (no -Z) variant.
Match motor series: pair with R88M-K 200 V class servomotor rated 400 W or below.
Verify functional-safety wiring: STO is a dual-channel input — both channels must be driven from a safety relay or safety PLC.
Plan panel cooling: derate above 40 °C ambient, allow ≥ 30 mm clearance top/bottom for airflow.
Use CX-Drive (USB) for commissioning, gain tuning, and waveform capture during FAT.
Order a CX-Drive cable (R88A-CCG001P) if your PC does not have a USB mini-B port.

02 / Specifications

Technical Specifications

Technical specifications for Omron R88D-KT04H-Z Accurax G5 Servo Drive 400 W 200 V with STO
Model	R88D-KT04H-Z
Series	Accurax G5
Rated Output	400 W
Input Voltage	Single-phase 200–240 VAC, ±10%
Input Frequency	50/60 Hz ±5%
Control Input	Analog ±10 V (velocity / torque) or pulse-train (position)
Control Modes	Position, Velocity, Torque
Encoder Support	20-bit absolute (incremental equivalent 1,048,576 pulses/rev)
Compatible Motors	R88M-K series Accurax G5 servomotors up to 400 W (200 V class)
Safety Functions	STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely-Limited Speed) — SIL3 / PLe per IEC 61800-5-2
Communication	USB (CX-Drive); analog / pulse-train command
Protective Functions	Overcurrent, overload, overvoltage, undervoltage, regen-overload, encoder error, heatsink overtemperature
Operating Temperature	0 °C to +55 °C (with derating above 40 °C)
Mounting	Book-style chassis, panel mount, side-by-side stackable
Commissioning Software	Omron CX-Drive (USB)
