SKU: R88M-1L1K530C-S2

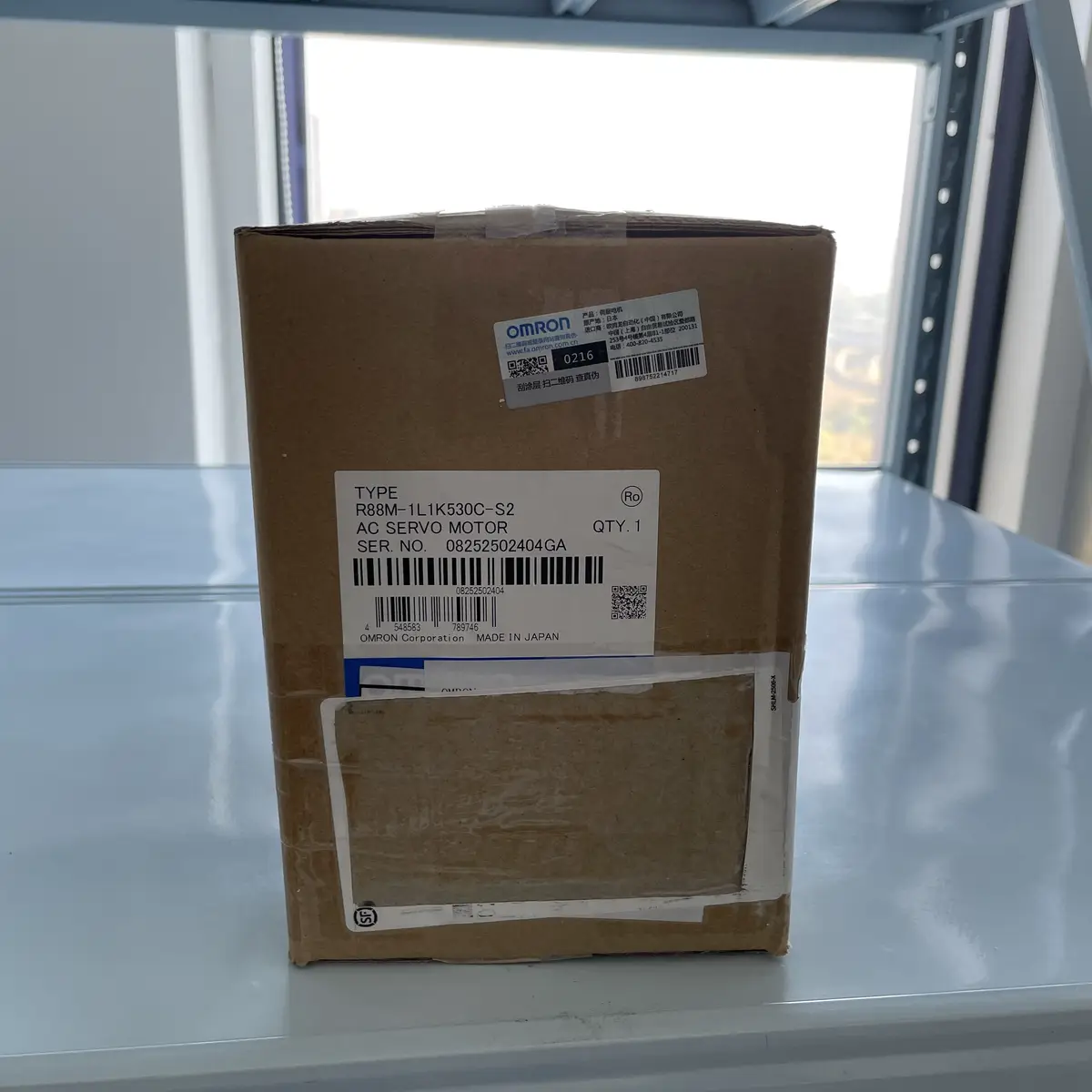

Omron R88M-1L1K530C-S2 AC Servo Motor 1.5kW 3000rpm 1S Series Large Frame
Omron R88M-1L1K530C-S2 is a 1S series AC servo motor with 1.5kW power, 3000rpm, large frame size for high-torque applications in industrial machinery and material handling.
USD 365.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 1.5kW servo class for demanding axis load profiles
- 400VAC design for industrial high-power motion architectures
- Supports high-torque, precision positioning tasks
- Suitable for high-cycle manufacturing automation systems
- Integrates with advanced servo drive ecosystems
- Reliable performance for long-duty production operations
High-Torque 1.5kW Servo Motor for Dynamic Industrial Motion Control
The R88M-1L1K530C-S2 is suited for motion axes that require strong torque, responsive acceleration, and repeatable positioning in high-throughput machinery. Its 400VAC class supports robust industrial installations and performance-driven applications. This motor is a strong fit for packaging, transfer, and precision automation lines where motion quality directly affects output consistency.
Typical Applications
- Driving heavy indexing tables and transfer axes
- Powering robotics and precision handling channels
- Supporting high-load packaging and assembly motion
- Replacing underperforming legacy high-power servos
- Standardizing 1.5kW channels across OEM machine ranges
- Improving throughput consistency through stronger motion control
Buying Checklist
- High-power class supports challenging motion demands
- Strong torque and precision for quality-critical processes
- 400VAC compatibility for industrial machine infrastructure
- Reliable long-term component for heavy-duty axis channels
- Good strategic fit for performance-focused OEM designs
Technical Specifications
| Model | R88M-1L1K530C-S2 |
|---|---|
| Series | 1S Series (Large Frame) |
| Rated Output | 1.5kW (1500W) |
| Rated Speed | 3000rpm |
| Rated Voltage | 200V AC |
| Rated Torque | 4.8 Nm |
| Peak Torque | 14.3 Nm |
| Shaft Type | Key shaft |
| Shaft Diameter | 24mm |
| Brake | Without brake |
| Encoder | 17-bit incremental |
| Frame Size | 130mm (Large) |
| Mass | Approx. 4.5kg |
| Protection | IP65 |
Frequently Asked Questions
What is the power rating?
1.5kW (1500W) at 3000rpm for high-torque industrial applications.
What frame size is this?
Large frame (L series) 130mm for high torque capacity.
Does this have a brake?
No, without brake. For brake model, select R88M-1L1K530C-BS2.
What drives work with this?
R88D-1SN15F-ECT or higher rated 1S series drives.
