SKU: SS-5GL13

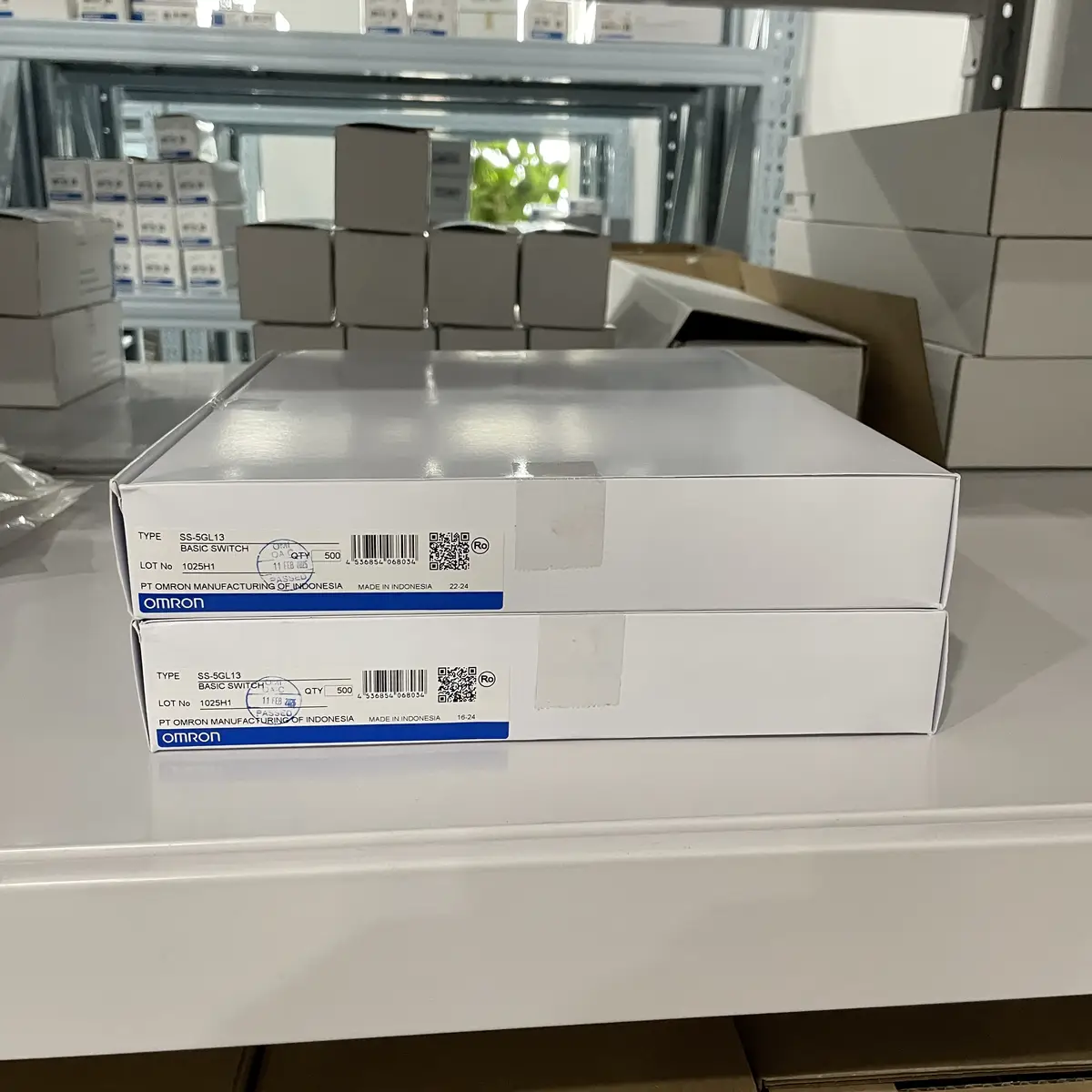

Omron SS-5GL13 Miniature Basic Switch
Omron SS-5GL13 is a miniature basic switch for low-current switching in compact industrial and consumer applications.
USD 0.50 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- SPDT contact form for flexible control logic wiring
- Snap-action switching mechanism for crisp contact response
- 5A 250VAC rating class for broad control applications
- Compact micro-switch format for tight mechanical integration
- Suitable for position sensing and interlock confirmation
- Reliable performance in repetitive machine operations
Compact Snap-Action Switch for Precise Mechanical Position Sensing
The SS-5GL13 is designed for mechanism end-position feedback, interlock confirmation, and contact-triggered control actions. Its snap-action behavior provides clear switching performance in repetitive operation. This switch is widely applied in industrial machinery, appliance-grade mechanisms, and automation fixtures where durable mechanical sensing is still preferred for specific motion interfaces.
Typical Applications
- Detecting mechanism end-of-stroke positions
- Providing safety and access interlock feedback
- Triggering control events on cam or lever movement
- Monitoring fixture clamp open/close states
- Replacing worn micro switches in maintenance cycles
- Standardizing position switch hardware in machine assemblies
Buying Checklist
- Proven snap-action behavior for reliable switching
- Compact size enables versatile mechanical integration
- SPDT contacts support diverse control circuit designs
- Widely applicable in industrial and automation equipment
- Cost-effective switch for maintenance and OEM stock
Technical Specifications
| Model | SS-5GL13 |
|---|---|
| Series | SS |
| Type | Miniature Basic Switch |
| Contact Configuration | SPDT (1 Form C) |
| Contact Rating | 0.1A at 125VAC |
| Actuator Type | Simulated roller lever |
| Operating Force | 0.98N max |
| Travel | 0.25mm OT |
| Mechanical Life | 10 million operations |
| Electrical Life | 100,000 operations |
| Operating Temperature | -25 to +85°C |
| Protection | IP40 |
| Terminal Type | Solder or quick-connect |
Frequently Asked Questions
What applications use miniature basic switches?
Low-current switching: signal circuits, indicator circuits, low-power relays, consumer appliances, office equipment. Not for power switching.
What's the maximum current rating?
0.1A at 125VAC (resistive). For higher currents, use Z series basic switches (up to 15A) or power relays.
What's the advantage of simulated roller lever?
Smooth operation, reduced wear, consistent operating force. Simulated roller provides roller-like feel without actual rolling element.
Can I use this switch for safety applications?
No, SS series is not certified for safety applications. For safety interlocks, use D4 series safety switches with direct opening action.
