SKU: Z-15GQ22-B

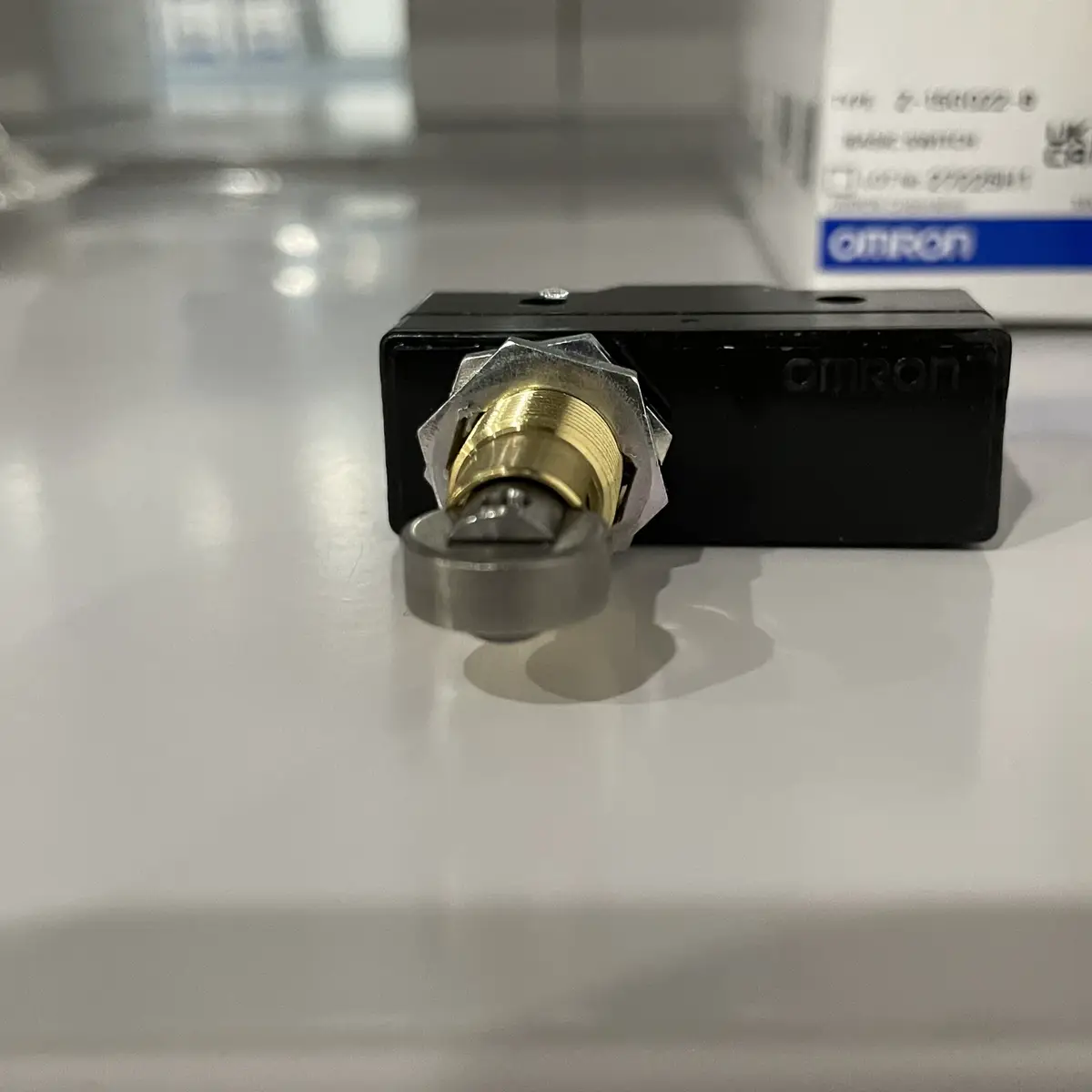

Omron Z-15GQ22-B Basic Switch SPDT 15A Simulated Roller Plunger
Omron Z-15GQ22-B is a SPDT basic switch with simulated roller plunger actuator, 15A rating for general purpose industrial switching.
USD 5.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Contact Configuration: SPDT (1 Form C)
- Contact Rating: 15A at 250VAC
- Actuator Type: Simulated roller plunger
- Operating Force: 2.94N max
- Mechanical Life: 10 million operations
- Electrical Life: 50,000 operations
Reliable Detection Layer for Sequence Accuracy and Process Stability
The Z-15GQ22-B is used to deliver repeatable machine-state detection for sequencing, interlocks, and process confirmation. Whether in packaging, handling, or assembly systems, this sensing class helps reduce false triggers and improves control confidence under continuous operation.
Repeatable State Detection
Accurate detection at the right process moment improves sequence integrity and reduces quality escapes caused by timing uncertainty or missed events.
Fit for Demanding Machine Environments
Industrial sensing components are selected for stability under vibration, contamination, and repetitive duty where consumer-grade devices are not suitable.
Faster Commissioning and Replacement
Standardized sensor families simplify spare strategy, reduce replacement errors, and support quicker return to production after maintenance events.
Typical Applications
- Provides stable detection signals to PLC logic
- Improves sequence timing accuracy
- Reduces dependence on mechanical contact methods
- Supports high-cycle production operation
- Enables better fault isolation at machine stations
- Simplifies maintenance through standard sensor families
Buying Checklist
- Repeatable industrial detection behavior
- Designed for continuous machine duty
- Improves process timing confidence
- Serviceable and standardizable selection
- Reliable fit for automation sensing layers
Technical Specifications
| Model | Z-15GQ22-B |
|---|---|
| Series | Z |
| Contact Configuration | SPDT (1 Form C) |
| Contact Rating | 15A at 250VAC |
| Actuator Type | Simulated roller plunger |
| Operating Force | 2.94N max |
| Mechanical Life | 10 million operations |
| Electrical Life | 50,000 operations |
| Operating Temperature | -25 to +80°C |
| Protection | IP00 |
| Terminal Type | Screw terminals |
Frequently Asked Questions
What's simulated roller plunger?
Plunger with roller-like tip for smooth operation. Provides roller benefit (reduced friction) without actual rolling element. Cost-effective alternative to roller lever.
What applications use this switch?
General purpose switching: machine interlocks (non-safety), position detection, limit sensing, control circuits. 15A rating suits moderate power loads.
Can I use this switch for safety applications?
No, Z series is not certified for safety applications. For safety interlocks, use D4 series safety switches with direct opening action.
What's the maximum switching frequency?
For resistive loads: up to 1800 operations/hour. For inductive loads: reduce to 600 operations/hour. For higher frequency, consider solid state switching.
