SKU: 3G3MX2-AB004-V2

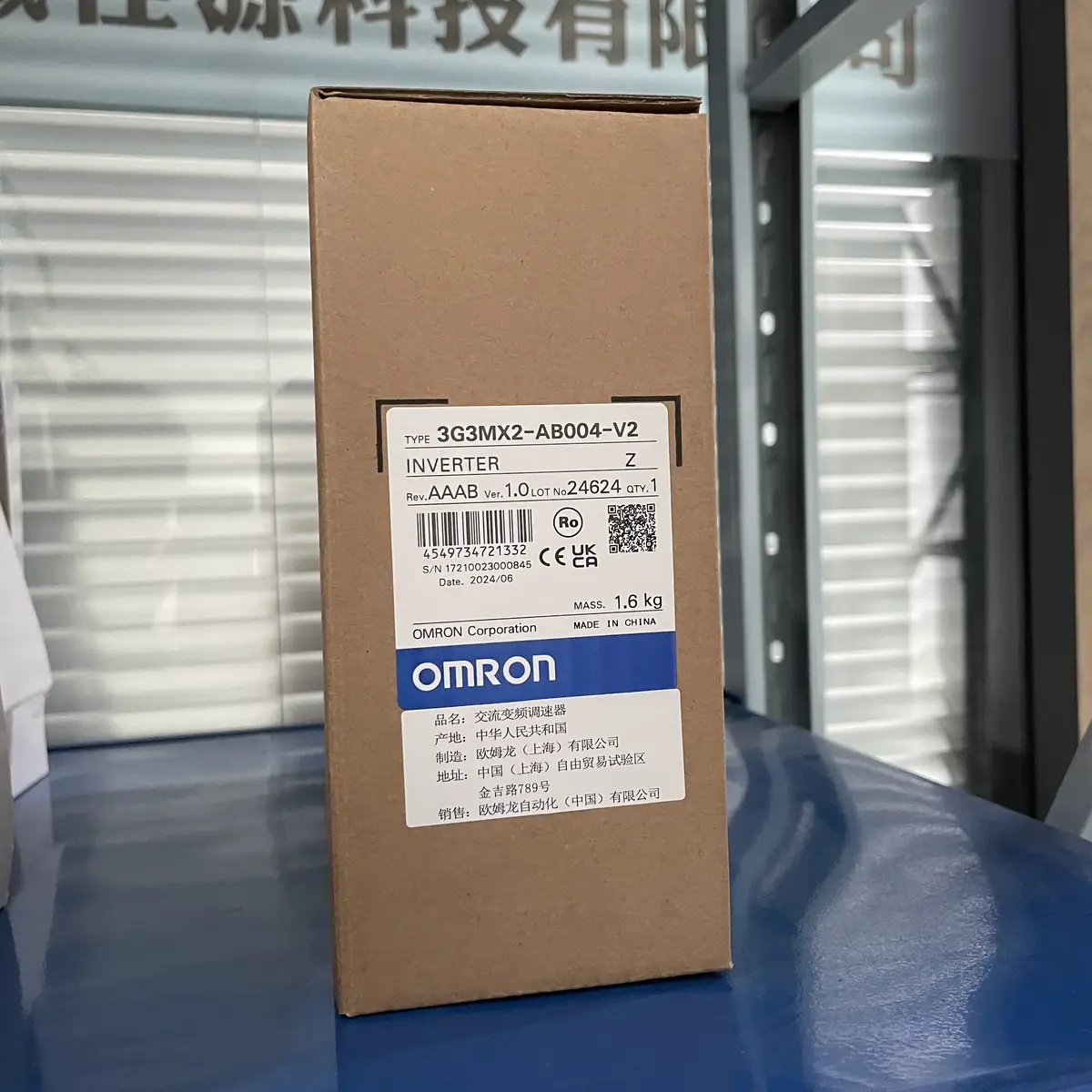

Omron 3G3MX2-AB004-V2 MX2 Inverter Drive 0.4kW 230V
Omron 3G3MX2-AB004-V2 is a 0.4kW MX2 VFD with 230V single/three-phase input for small motor speed control applications.
USD 155.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 0.4kW inverter class for compact motor control applications
- 230V input class for common single-machine integrations
- Supports variable speed operation for process optimization
- Suitable for conveyors, pumps, and auxiliary drive tasks
- Improves energy efficiency and motor control flexibility
- Practical MX2 family platform for OEM standardization
Compact Variable Speed Motor Control for OEM and Retrofit Systems
The 3G3MX2-AB004-V2 provides flexible AC motor control in applications requiring adjustable speed and smooth acceleration behavior. It is well suited for conveyors, pumps, fans, and compact machine mechanisms where energy efficiency and process tuning are important. As part of the MX2 family, this drive supports practical commissioning workflows and dependable long-term operation in industrial settings.
Typical Applications
- Controlling conveyor motor speed in packaging lines
- Adjusting pump flow behavior in utility skids
- Running fan motors with variable speed profiles
- Improving startup and stop control on compact machinery
- Retrofitting fixed-speed systems with VFD control
- Standardizing small drive channels in OEM machine designs
Buying Checklist
- Compact 0.4kW class fits many auxiliary motor tasks
- Variable speed control improves process flexibility
- Can reduce energy usage compared with fixed-speed operation
- Reliable MX2 platform supports maintainable deployment
- Strong option for both new builds and modernization projects
Technical Specifications
| Model | 3G3MX2-AB004-V2 |
|---|---|
| Series | 3G3MX2 (MX2) |
| Rated Output | 0.4kW (0.5 HP) |
| Input Voltage | Single/Three-phase 200-240VAC |
| Output Current | 2.5A (ND), 2A (HD) |
| Control Method | V/f, Sensorless Vector |
| Built-in EMC Filter | Yes |
| Communication | Modbus RTU |
| Operating Temperature | -10 to +50°C |
| Mounting | DIN rail or panel |
| Mass | Approx. 0.7kg |
Frequently Asked Questions
What size motor can this VFD drive?
0.4kW (0.5 HP) at 240V. On single-phase input, derate to approximately 0.3kW. Check motor nameplate full-load current - must not exceed VFD output current rating.
Can this VFD control 3-phase motor from single-phase?
Yes, common application. VFD converts single-phase input to three-phase output. Motor must be three-phase. Derate VFD output by 30% for single-phase input.
Do I need external brake resistor?
Built-in brake chopper accepts external brake resistor. For high-inertia loads or frequent stopping, add brake resistor. Calculate resistor value based on deceleration requirements.
What's the minimum speed?
0.1 Hz minimum output frequency. For standard motors, minimum continuous speed is typically 10-20 Hz (300-600 rpm) without forced cooling. Below this, motor overheats.
