SKU: 61F-G3 AC100-220V

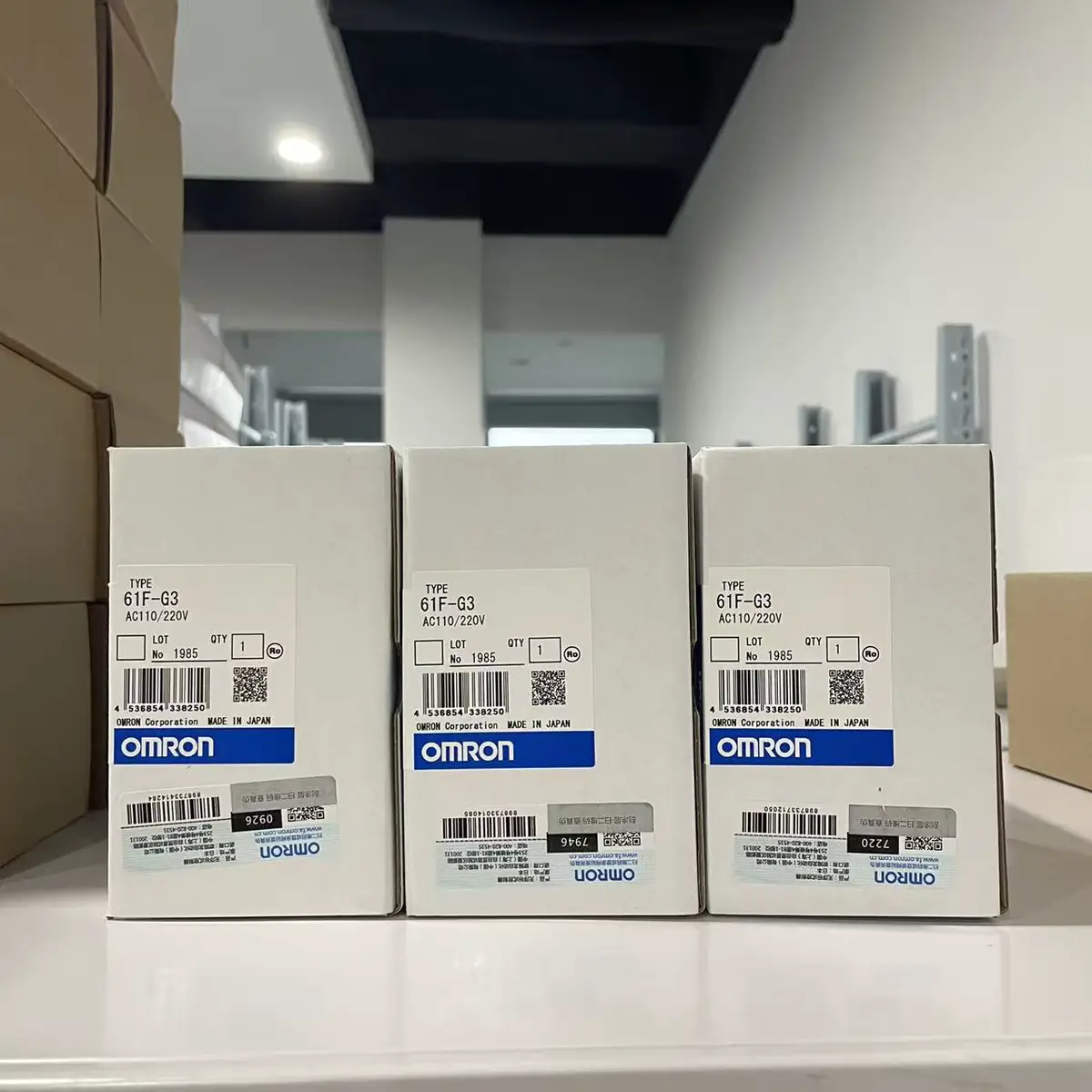

Omron 61F-G3 AC100-220V Floatless Level Controller for Conductive Liquid Monitoring
Omron 61F-G3 AC100-220V is a floatless level controller for conductive liquids, providing reliable pump control without mechanical floats.
USD 90.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Floatless control concept using conductive liquid electrodes
- Wide AC supply compatibility at 100-220V class
- Suitable for automatic pump start/stop level management
- Reduces dependence on mechanical float switch assemblies
- Proven Omron level-control platform for utility applications
- Good fit for tank, sump, and reservoir monitoring panels
Electrode-Based Tank Level Control Without Mechanical Floats
The 61F-G3 AC100-220V is designed for stable level regulation in water and conductive-liquid applications where mechanical float devices are prone to wear or contamination. Using electrode inputs, it provides practical control for filling and draining operations in utility and process-support systems. This controller is widely used in panel-based pump automation, offering a proven approach for maintaining liquid levels with reduced moving parts and straightforward maintenance procedures.
Typical Applications
- Controlling make-up water tank filling pumps
- Monitoring sump level in plant utility rooms
- Automating reservoir refill cycles in production facilities
- Managing cooling-water service tank level
- Providing high/low level supervision in auxiliary process tanks
- Replacing mechanical float methods in retrofit projects
Buying Checklist
- Electrode method improves durability versus mechanical floats
- Simple panel integration for pump-level automation
- Trusted device family for long-term maintenance continuity
- Practical solution for conductive-liquid applications
- Supports stable unattended tank management
Technical Specifications
| Model | 61F-G3 AC100-220V |
|---|---|
| Series | 61F |
| Type | Floatless Level Controller |
| Supply Voltage | AC100-220V 50/60Hz |
| Sensing Method | Conductive electrode |
| Control Output | Relay (SPDT) |
| Contact Rating | 5A at 250VAC |
| Control Mode | Fill or drain control |
| Electrode Current | 1mA max (AC) |
| Liquid Conductivity | 100μS/cm min |
| Response Time | 0.5 seconds |
| Mounting | Panel or DIN rail |
| Operating Temperature | -10 to +55°C |
| Protection | IP20 |
| Applications | Water, conductive liquids |
Frequently Asked Questions
What liquids can this controller detect?
Conductive liquids only: water, wastewater, chemicals with conductivity >100μS/cm. Cannot detect non-conductive liquids: oils, solvents, distilled water, deionized water.
How does floatless level control work?
Three electrodes detect liquid level: common (always submerged), low level, high level. When liquid bridges electrodes, control circuit activates relay. No moving parts, no mechanical wear.
What electrodes do I need?
61F series electrodes (sold separately). Choose based on tank depth, liquid type, mounting method. Common configurations: rod electrodes for tanks, cable electrodes for deep wells.
Can this controller pump in and out?
Yes, configurable for fill control (pump in when low) or drain control (pump out when high). Set via wiring configuration. Some models support both modes.
