SKU: CJ1M-CPU12

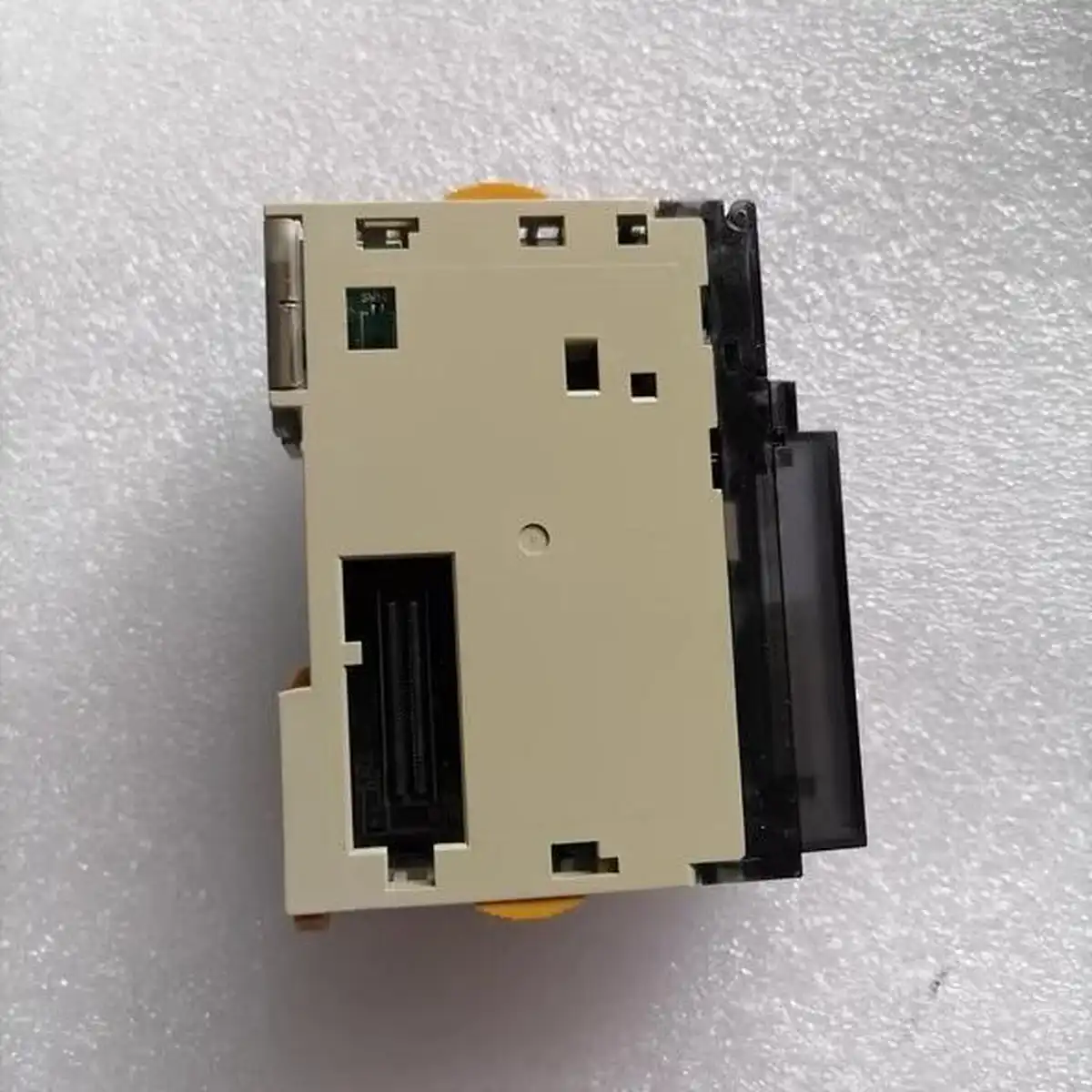

Omron CJ1M-CPU12 PLC CPU Unit for CJ1M Series Machine Control
Omron CJ1M-CPU12 is a CJ1M series PLC CPU unit with built-in pulse I/O for precision positioning and machine control applications.
USD 135.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- CJ1M series CPU architecture for machine control execution
- Supports modular I/O and communication expansion in CJ platform
- Widely used in legacy and long-life industrial installations
- Provides deterministic logic processing for discrete automation
- Strong serviceability due to broad technician familiarity
- Suitable for retrofit continuity and staged modernization
Central Controller for Proven CJ1M Automation Platforms
The CJ1M-CPU12 serves as the processing core of CJ1M PLC systems, coordinating sequence logic, I/O handling, and communication tasks for machine automation. It is frequently selected for projects that require a reliable, maintainable controller with broad installed-base familiarity. For plants running legacy but mission-critical equipment, this CPU provides a practical path to sustain operations, preserve application knowledge, and execute upgrades incrementally through compatible CJ expansion components.
Typical Applications
- Running core sequence logic in packaging and handling machines
- Coordinating station interlocks in assembly production cells
- Maintaining legacy lines where controller replacement risk is high
- Serving as control core in retrofit projects with CJ expansion
- Managing mixed I/O and communication tasks in mature systems
- Supporting spare-part continuity in installed CJ1M fleets
Buying Checklist
- Proven platform choice for reliability-focused operations
- Preserves validated machine logic and existing engineering assets
- Enables phased modernization without full controls redesign
- Strong availability of field knowledge and maintenance practices
- Strategic fit for plants balancing uptime with upgrade budgets
Technical Specifications
| Model | CJ1M-CPU12 |
|---|---|
| Series | CJ1M |
| Type | PLC CPU Unit |
| Program Capacity | 5K steps |
| Data Memory | 8K words |
| Max I/O Points | 256 points |
| Built-in Pulse I/O | 2-axis 100kHz |
| High-Speed Counter | 100kHz 2-axis |
| LD Instruction Time | 0.1μs |
| Built-in Ports | RS-232C |
| Expandable Units | Up to 10 units |
| Battery Life | 5 years at 25°C |
| Operating Temperature | 0 to +55°C |
| Software | CX-Programmer |
Frequently Asked Questions
What's the advantage of CJ1M series?
Built-in pulse I/O for positioning (2-axis 100kHz), compact size, cost-effective for small machines. Ideal for applications requiring simple motion control without additional modules.
What motion control capabilities does this CPU have?
Built-in 2-axis 100kHz pulse output for stepper/servo control. Supports independent positioning, speed control. For interpolation or more axes, add CJ1W-NC position control units.
How many expansion units can I add?
Maximum 10 expansion units (I/O, analog, communication). Limited by CPU's I/O capacity (256 points max) and power budget.
Is CJ1M series still available?
CJ1M is approaching end-of-life. For new designs, consider CP2E or NX1P2 series. For existing CJ1M systems, contact Omron for migration path.
