SKU: CJ1W-DA041

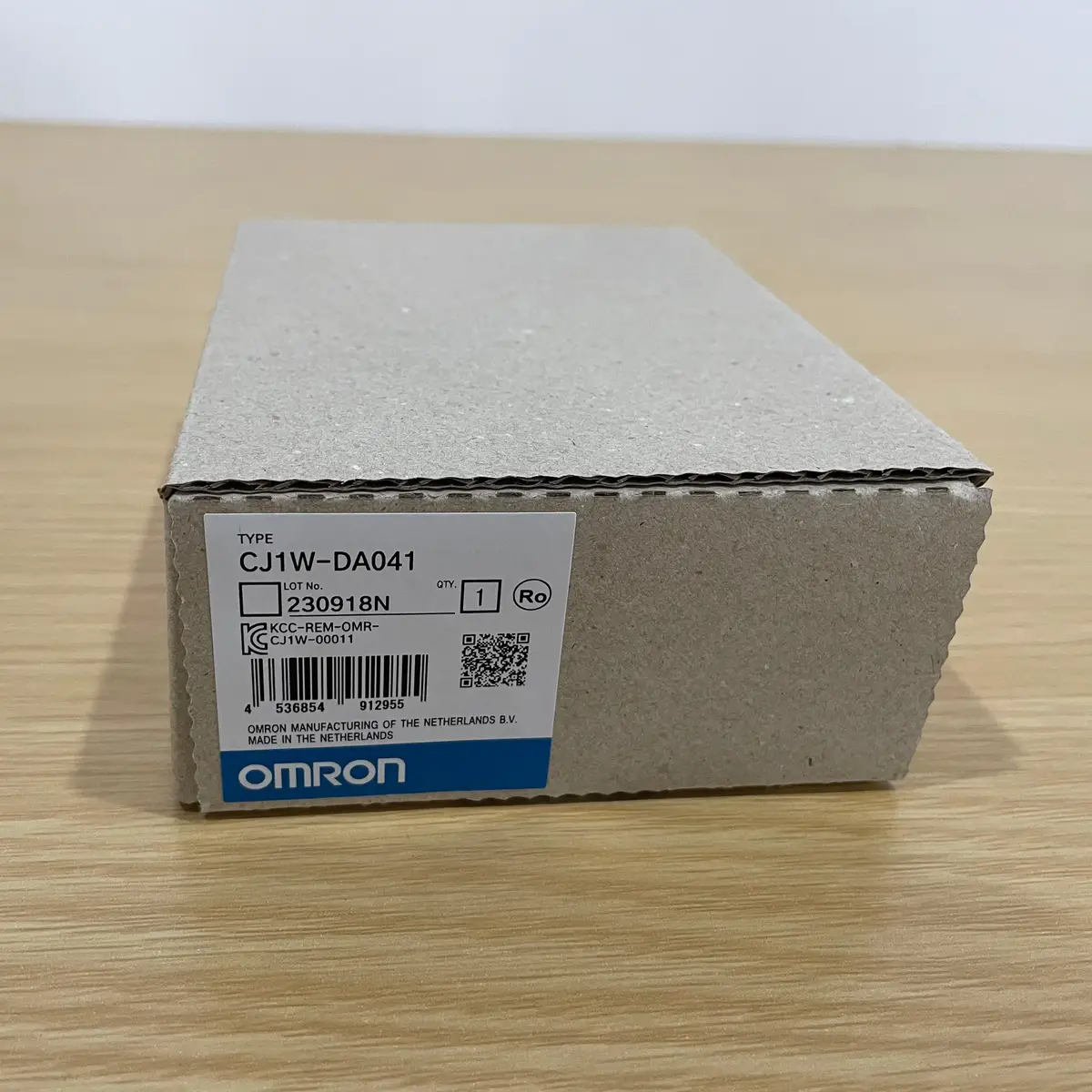

Omron CJ1W-DA041 Analog Output Unit 4-Channel Voltage/Current
Omron CJ1W-DA041 is a 4-channel analog output unit for CJ series PLCs, providing voltage or current output for process control.
USD 160.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- CJ1W analog output expansion module
- Supports process command signal generation from PLC logic
- Suitable for inverter, valve, and analog control interfaces
- Integrates with CJ-series modular rack architectures
- Useful for retrofit and process-loop expansion projects
- Supports structured scaling and commissioning workflows
Analog Signal Output Expansion for CJ-Series Process Control
CJ1W-DA041 belongs to Omron CJ1W special I/O family and is used where PLC logic must drive analog command signals to external devices such as inverters, proportional valves, and control loops. In real machine and utility panels, analog output units are selected when stable setpoint transmission and structured scaling are required. This model is often used in retrofit and expansion projects where existing CJ architecture is preserved while process control capability is extended. Engineering teams should validate output range expectations, load impedance, channel scaling, and fail-safe behavior in case of communication or power disturbances. Commissioning should include output calibration checks, loop response verification, and alarm handling for abnormal channel conditions. CJ1W-DA041 is generally chosen when deterministic analog command output is needed in a maintainable modular controller platform.
Typical Applications
- Analog speed reference output to inverters
- Valve position command in process skid control
- Setpoint transmission for temperature/pressure loops
- Machine tuning outputs for proportional control sections
- Retrofit analog channel expansion in CJ installations
- Distributed process command channels in utility panels
Buying Checklist
- Confirm required output range and receiving device compatibility.
- Validate channel scaling strategy in PLC logic design.
- Check load impedance and wiring practices for stable signals.
- Define fail-safe behavior for abnormal communication states.
- Document calibration baseline for maintenance repeatability.
Technical Specifications
| Model | CJ1W-DA041 |
|---|---|
| Series | CJ1W |
| Type | Analog Output Unit |
| Output Channels | 4 channels |
| Output Types | Voltage: 0-10V, ±10V; Current: 0-20mA, 4-20mA |
| Resolution | 1/4000 |
| Accuracy | ±0.3% full scale |
| Conversion Time | 1ms per channel |
| Load Resistance | 1kΩ min (voltage), 600Ω max (current) |
| Isolation | Channel-to-channel isolated |
| Connection | Removable terminal block |
| Current Consumption | 150mA at 5VDC |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What devices can I control with analog output?
VFD speed reference (0-10V or 4-20mA), proportional valves (0-10V), temperature controller setpoint (4-20mA), chart recorders, analog indicators, and any device accepting standard analog signals.
How do I configure voltage vs current output?
Set via DIP switches on unit front. Each channel independently configurable. Voltage: connect to V+ and COM. Current: connect to I+ and COM. Refer to unit manual for switch settings.
What's the output update rate?
1ms per channel. For 4 channels: 4ms total update time. Sufficient for most process control applications. For faster update, consider high-speed analog units.
Can I use this for closed-loop control?
Yes, common application. PLC reads process variable (analog input), calculates PID, writes output (analog output) to control valve/VFD. CJ series CPUs have built-in PID instructions.
Related Products
Customers who viewed CJ1W-DA041 often pair it with these.
Need CJ1W-DA041 pricing or lead time?
Email sales@hyx-automation.com or send your inquiry via the form. We respond same business day.
Send Inquiry
