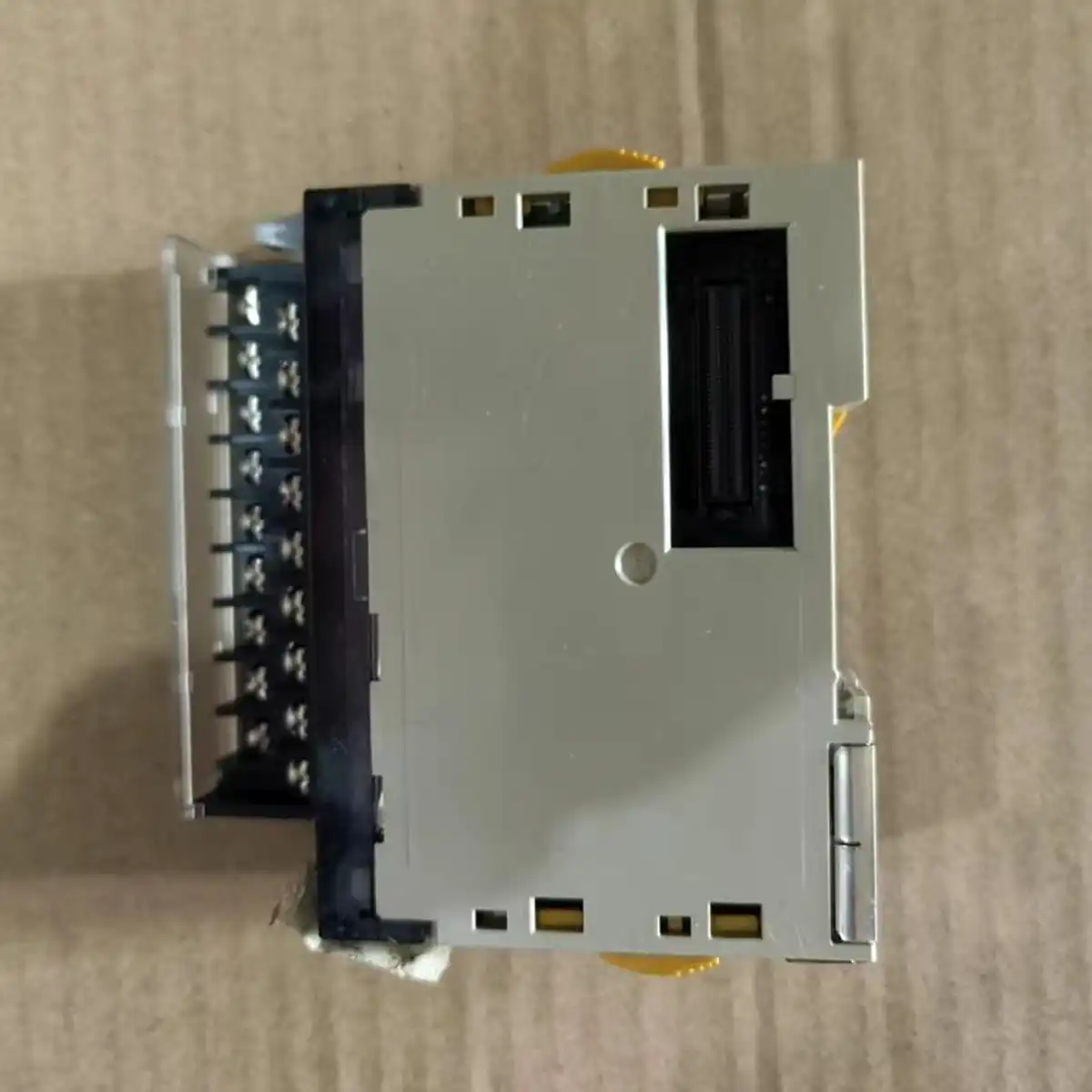

Omron CJ1W-AD081-V1 Analog Input Unit 8-Channel 0-10V/4-20mA

Analog Signal Acquisition for CJ-Series Process Monitoring

CJ1W-AD081-V1 belongs to Omron CJ1W analog I/O family and is used when process values must be captured from field transmitters in a modular PLC architecture. Analog input modules are commonly selected for temperature, pressure, flow, and level monitoring tasks where control quality depends on stable measurement acquisition. This model is often used in machine utilities and process skids requiring structured channel scaling and diagnostics. Engineering teams should validate input range mapping, signal conditioning, channel filtering, and grounding strategy. Commissioning includes calibration checks, scaling verification, and alarm limit validation. CJ1W-AD081-V1 is generally chosen when dependable analog measurement integration is required without changing core CJ controller standards.

Typical Applications

• Temperature and pressure signal acquisition
• Flow and level transmitter integration
• Utility skid process monitoring channels
• Machine condition analog feedback collection
• Retrofit expansion of analog measurement capability
• Distributed process variable capture in CJ systems

Buying Checklist

• Confirm transmitter signal range compatibility.
• Validate channel scaling and engineering-unit mapping.
• Use proper grounding/shielding to minimize noise.
• Check alarm threshold strategy for process protection.
• Document calibration and maintenance verification routines.
