SKU: CJ1W-NC233

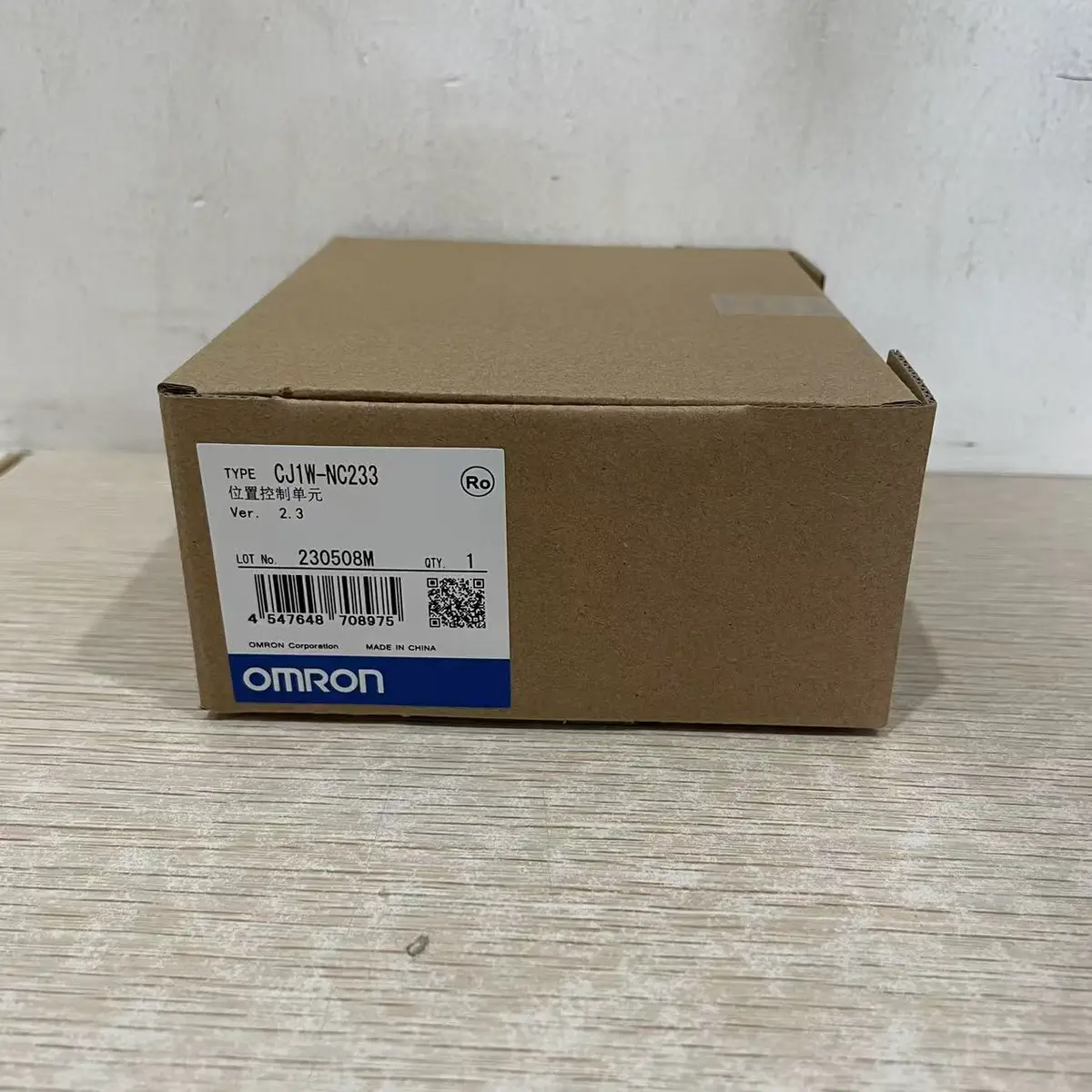

Omron CJ1W-NC233 Position Control Unit 2-Axis Pulse Output
Omron CJ1W-NC233 is a 2-axis position control unit for CJ series PLCs, providing pulse output for stepper and servo motor control.
USD 335.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- CJ1W position control expansion module
- Supports pulse-train based axis command tasks
- Suitable for indexing and feed-length applications
- Integrates with CJ-series modular PLC architectures
- Useful for retrofit motion capability upgrades
- Supports documented commissioning and tuning workflow
Pulse Motion Expansion for CJ-Series Machine Platforms
CJ1W-NC233 is part of Omron CJ1W special function module range and is used when CJ-based systems need dedicated position control capability. Position modules in this class are commonly selected for indexing, feed control, and synchronized sequence movement in packaging and assembly equipment. This model supports modular motion expansion while preserving existing CJ controller architecture, which is valuable in retrofit and lifecycle extension projects. Engineering teams should validate drive interface requirements, pulse scaling, acceleration/deceleration constraints, and axis coordination logic. Commissioning should include profile verification, repeatability checks, and fault-recovery behavior tests before production release. CJ1W-NC233 is typically used where robust modular motion control is required without full platform migration.
Typical Applications
- Index table and turret positioning in machines
- Feed and registration control in packaging equipment
- Coordinated motion steps in assembly lines
- Retrofit of legacy axis control in CJ platforms
- Length-based cut and move sequences
- Synchronized positioning in transfer mechanisms
Buying Checklist
- Confirm drive compatibility and pulse interface requirements.
- Validate motion profile limits against mechanical dynamics.
- Plan software coordination with sensor and interlock events.
- Test positioning repeatability under production loads.
- Back up axis parameters for maintenance continuity.
Technical Specifications
| Model | CJ1W-NC233 |
|---|---|
| Series | CJ1W |
| Type | Position Control Unit |
| Control Axes | 2 axes |
| Max Pulse Frequency | 500kHz |
| Output Type | Line driver (RS-422) |
| Control Modes | Position, speed, torque |
| Interpolation | Linear, circular |
| Electronic Gear | 1/100 to 100/1 |
| Accel/Decel | S-curve, trapezoidal |
| Home Return | Multiple methods |
| Connection | Connector |
| Current Consumption | 200mA at 5VDC |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What motors can this unit control?
Stepper motors and servo motors with pulse/direction input. Max 500kHz pulse frequency. Compatible with Omron and third-party drives accepting pulse train input.
What's the difference between NC233 and NC413?
NC233: 2 axes, 500kHz max. NC413: 4 axes, 500kHz max. Same features, different axis count. Choose based on number of axes needed.
Can I do linear interpolation with 2 axes?
Yes, NC233 supports 2-axis linear interpolation for diagonal motion. Also supports circular interpolation for arc motion. Programmed via PLC positioning instructions.
How do I configure homing sequence?
Multiple homing methods: limit switch + Z-phase, limit switch only, Z-phase only, current detection. Configure in CX-Position software. Homing parameters stored in unit memory.
