SKU: CJ1W-NC413

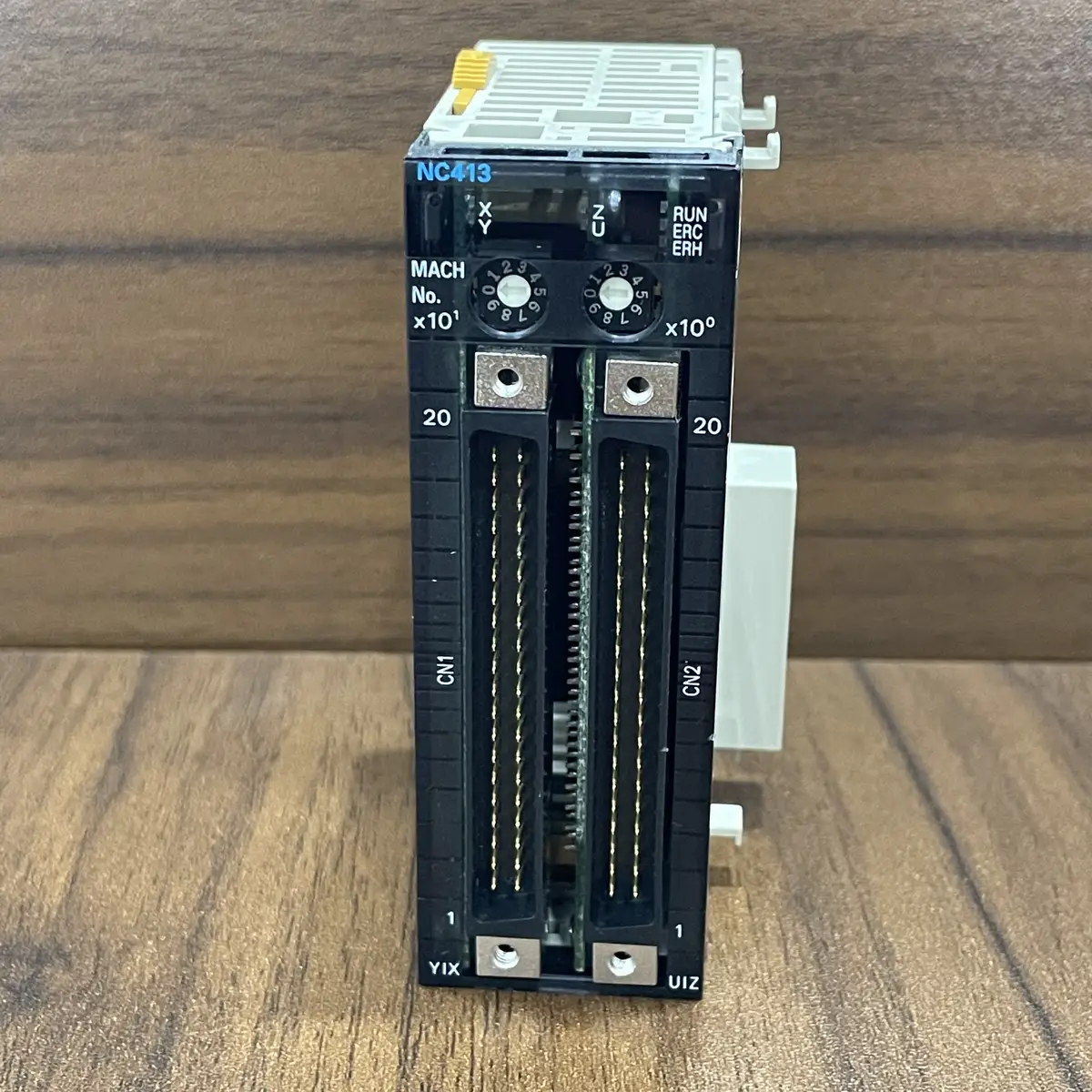

Omron CJ1W-NC413 Position Control Unit 4-Axis Pulse Output
Omron CJ1W-NC413 is a 4-axis position control unit for CJ series PLCs, providing pulse output for multi-axis motion control.
USD 237.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- CJ1W special function position control module
- Supports deterministic pulse-based axis control workflows
- Suitable for indexing and length-based motion tasks
- Integrates with CJ-series modular PLC architectures
- Useful for retrofits requiring modular motion expansion
- Supports maintainable motion commissioning procedures
Modular Position Control for CJ-Series Motion Applications
CJ1W-NC413 is part of Omron CJ1W special function module family and is used in CJ-series systems that require deterministic position control beyond standard PLC outputs. Position control units in this class are commonly deployed for indexing, feed-length control, cutoff synchronization, and multi-axis sequence steps where pulse-train control and repeatability are critical. This model is selected in packaging, conversion, and assembly equipment where machine throughput depends on precise axis commands coordinated with logic and sensor events. During engineering, teams should validate axis profiles, acceleration limits, pulse resolution, and synchronization behavior with upstream/downstream mechanisms. Commissioning should include dry-run verification, position tolerance checks, and fault-recovery sequence tests. CJ1W-NC413 is typically chosen when machine builders need maintainable modular motion capability while preserving established CJ-series control standards.
Typical Applications
- Index table and turret positioning control
- Cut-to-length feed synchronization in converting lines
- Registration movement in packaging systems
- Axis movement coordination with sensor-triggered events
- Retrofit motion expansion on CJ-based machine platforms
- Stepwise positioning in assembly and transfer stations
Buying Checklist
- Confirm required axis profile and resolution versus mechanical design.
- Validate pulse interface compatibility with selected drives.
- Plan emergency stop and fault-recovery sequence behavior in software.
- Test positioning accuracy under actual production load conditions.
- Document and back up motion parameters for service continuity.
Technical Specifications
| Model | CJ1W-NC413 |
|---|---|
| Series | CJ1W |
| Type | Position Control Unit |
| Control Axes | 4 axes |
| Max Pulse Frequency | 500kHz |
| Output Type | Line driver (RS-422) |
| Interpolation | Linear (2-axis), circular |
| Electronic Gear | 1/100 to 100/1 |
| Accel/Decel | S-curve, trapezoidal |
| Connection | Connector |
| Current Consumption | 250mA at 5VDC |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
Can I control 4 independent axes simultaneously?
Yes, all 4 axes can move simultaneously with independent positioning. Each axis has dedicated pulse output and control logic.
What's the maximum interpolation axes?
2-axis linear or circular interpolation. For 3-axis or more interpolation, use CJ1W-NCF71 multi-axis position control unit.
Can I use this for gantry control?
Yes, configure two axes as gantry pair with electronic gearing. Master/slave configuration ensures synchronized motion. Useful for large X-axis gantries.
How do I program motion profiles?
CX-Position software: create motion profiles, set parameters, download to unit. PLC program triggers motion via positioning instructions. Status feedback to PLC.
