SKU: CJ1W-OD232

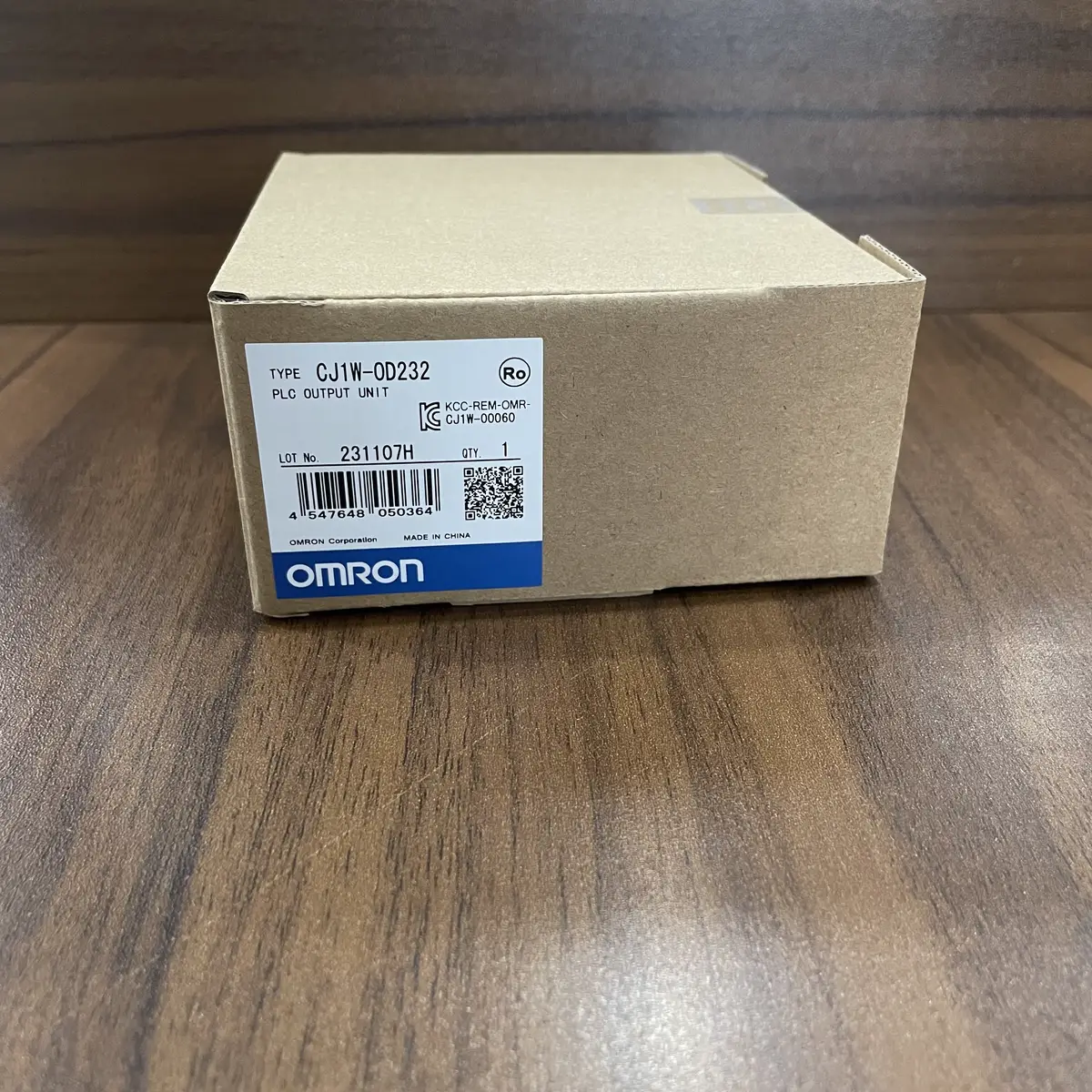

Omron CJ1W-OD232 Digital Output Unit 32 Points for CJ Series PLC
Omron CJ1W-OD232 is a 32-point transistor output unit for CJ series PLCs, providing high-density DC output for industrial automation.
USD 75.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 32 digital output points for high channel density
- CJ-series compatible modular expansion format
- Supports actuator, relay, and indicator command outputs
- Useful for both new machine builds and retrofit projects
- Improves panel standardization in OEM control designs
- Channel-based structure aids commissioning and maintenance
High-Density Digital Output Expansion for CJ Platform Systems
The CJ1W-OD232 adds 32 discrete output channels to CJ controllers, allowing machine builders to control larger groups of valves, relays, and indicators without major architecture changes. It is suitable for both new panel builds and lifecycle maintenance of installed CJ systems. This module helps maintain consistent wiring standards, predictable addressing, and efficient fault diagnosis across production lines.
Typical Applications
- Driving pneumatic solenoids in packaging stations
- Controlling relay interfaces in machine power sections
- Operating tower lights and status indicators
- Expanding output capacity in legacy CJ control racks
- Standardizing high-output sections in OEM equipment
- Implementing additional command channels in retrofit upgrades
Buying Checklist
- 32-point density reduces module count in large output applications
- Proven CJ compatibility lowers integration risk
- Practical replacement path for installed CJ fleets
- Supports clearer panel organization and documentation
- Reliable option for high-channel discrete control needs
Technical Specifications
| Model | CJ1W-OD232 |
|---|---|
| Series | CJ1W |
| Type | Digital Output Unit |
| Output Points | 32 points |
| Output Type | NPN (sinking) |
| Load Voltage | DC12-24V |
| Output Current | 0.5A per point, 4A per unit |
| Response Time | 0.5ms ON, 1ms OFF |
| Common | 16 points/common, 2 circuits |
| Connection | Removable terminal block |
| Current Consumption | 200mA at 5VDC |
| Mounting | CJ series backplane |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
What's the advantage of 32-point unit?
Higher density: 32 points in same width as 16-point unit. More cost-effective per point. Reduces number of units needed for large I/O counts.
How many commons does this unit have?
2 commons (16 points each). Allows grouping outputs by voltage source or function. Each common can be wired to different 24VDC sources if needed.
What's the power consumption?
200mA at 5VDC (internal from backplane). External: varies by load. For 32 outputs ON at 0.5A each: 16A external current (ensure adequate 24VDC supply capacity).
Can I use this for high-speed output?
Standard transistor output: 0.5ms response (approximately 1kHz). For high-speed pulse output, use CJ1W-NC position control unit.
