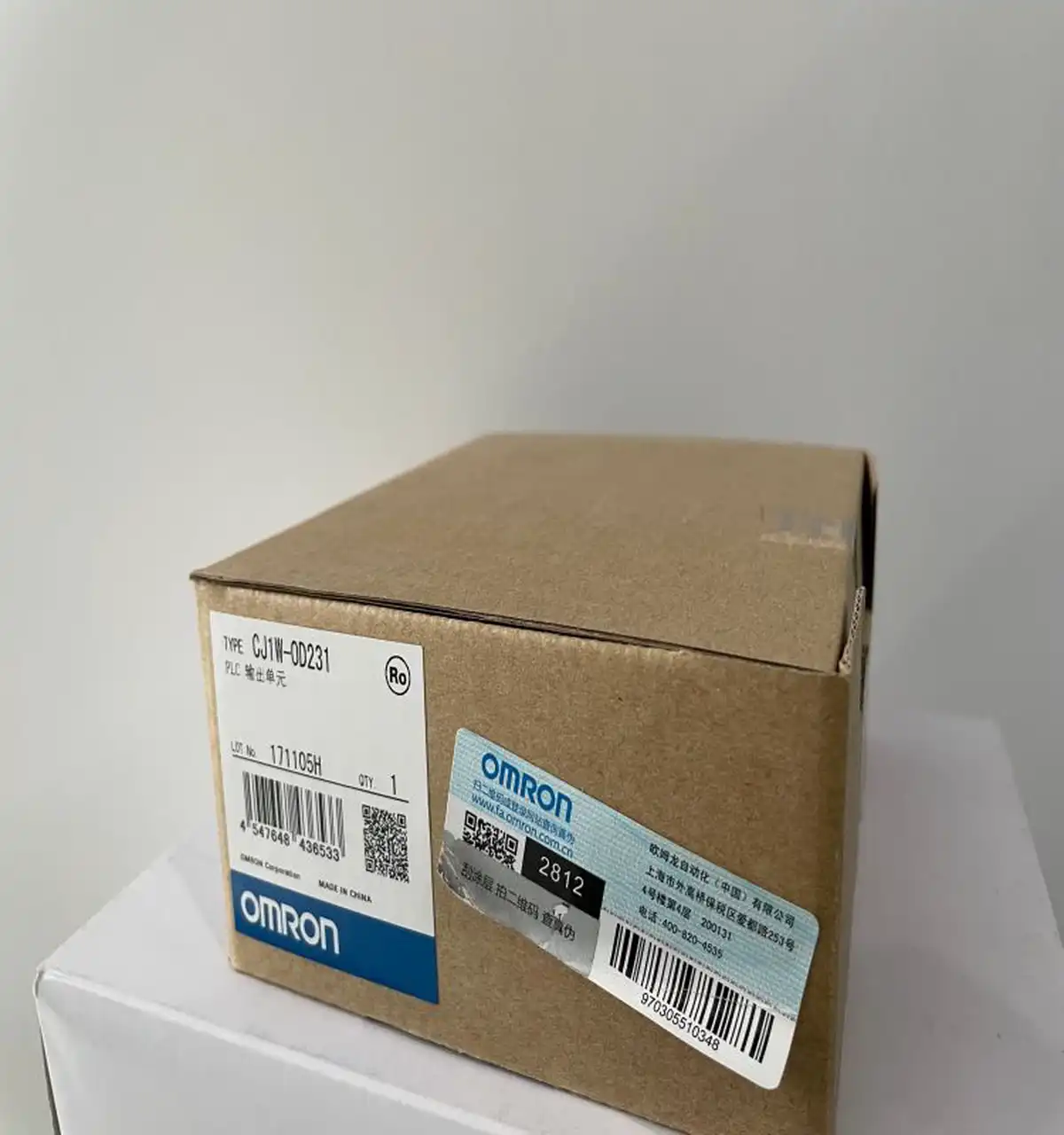

Omron CJ1W-OD231 CJ Series Transistor Output Unit 8-Points 2A 12-24VDC

Omron CJ1W-OD231 High-Current Output Module

The Omron CJ1W-OD231 is an 8-point high-current transistor output module for CJ1 series PLCs, designed for applications requiring direct drive of higher-current DC loads without interposing relays. This module features NPN (sinking) transistor outputs rated at 2A per point, providing substantial current capacity for driving solenoids, contactors, motor starters, and other DC loads that would otherwise require relay intermediation. The 2A per point rating represents a significant increase over standard 0. 5A output modules, reducing system complexity and cost by enabling direct connection of higher-power devices. The CJ1W-OD231 operates on 12-24VDC load voltage, compatible with common industrial control voltages. Each output point includes individual LED status indicators, enabling immediate visual verification of output states during setup, operation, and troubleshooting. Built-in protection features include short circuit protection and overload protection, safeguarding the module and connected equipment from damage due to wiring faults or excessive loads. The fast response time of 0. 5ms or less ensures precise timing control in high-speed applications. The module connects through a standard 20-pin connector, providing organized field wiring connections. Applications include direct drive of hydraulic and pneumatic valves, high-power indicator systems, motor starter control, and any application requiring robust DC output capability.
