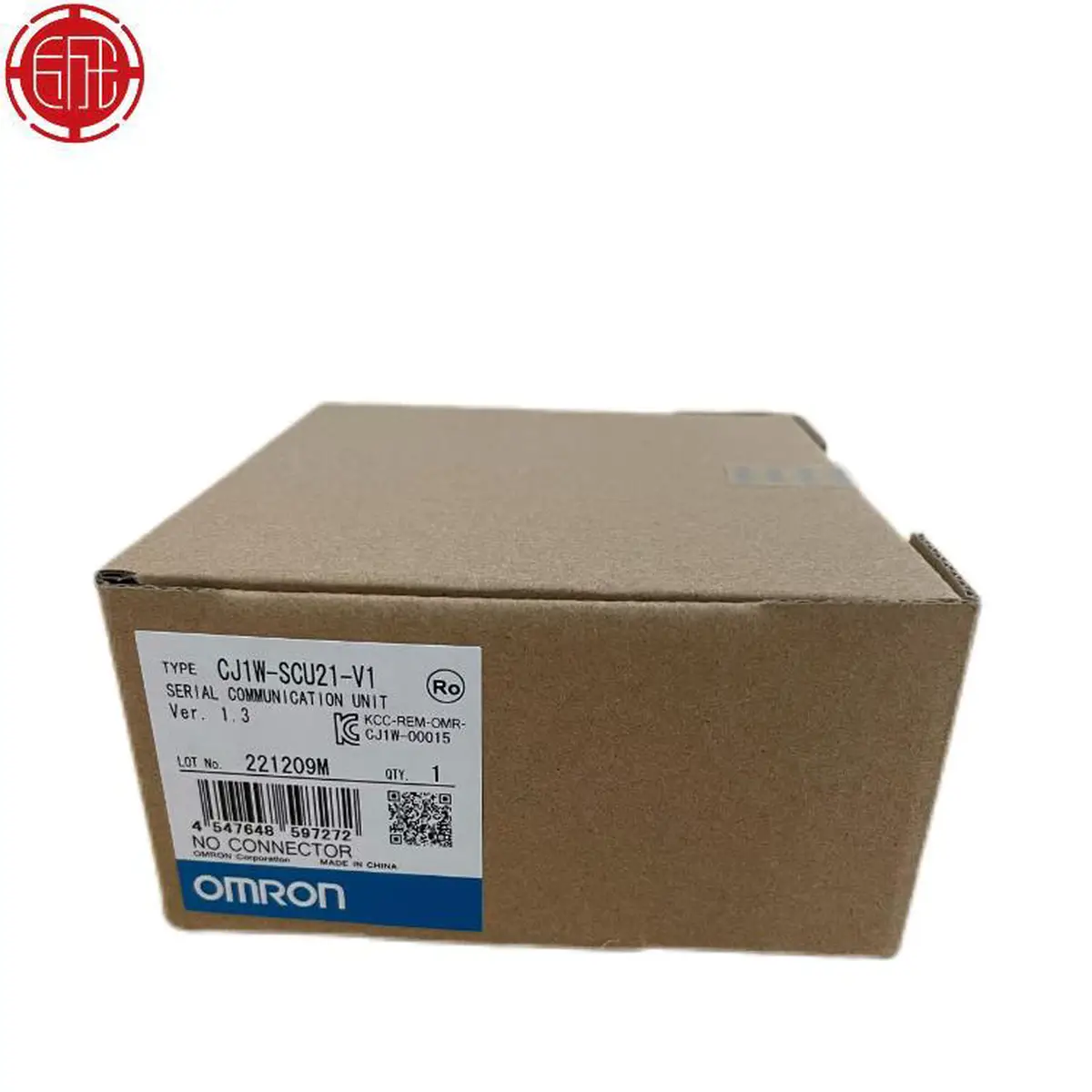

Omron CJ1W-SCU21-V1 Serial Communication Unit RS-232C

Omron CJ1W-SCU21-V1 Serial Communication Module

The Omron CJ1W-SCU21-V1 is a compact serial communication module for CJ1 series PLCs, providing reliable RS-232C connectivity for industrial automation systems requiring interface to serial devices. This module features one RS-232C port, enabling connection to devices such as HMI terminals, barcode scanners, weigh scales, variable frequency drives, and programming tools. The CJ1W-SCU21-V1 supports multiple protocols including Omron-specific protocols for connection to Omron devices, Modbus RTU for third-party device integration, and general ASCII communication for custom device interfaces. The module includes buffer memory for handling data exchange without impacting PLC scan time, ensuring reliable communication even at high baud rates. Configuration is easily achieved through CX-Programmer or the module front panel switches, allowing quick setup of communication parameters including baud rate, data bits, stop bits, and parity. The CJ1W-SCU21-V1 is hot-swappable, allowing module replacement without powering down the entire PLC system, minimizing downtime during maintenance. LED status indicators provide at-a-glance monitoring of communication activity and error conditions. Applications include connection to VFDs for motor speed control, barcode scanner integration for product tracking, serial HMI connections, and legacy equipment interface in modernization projects.
