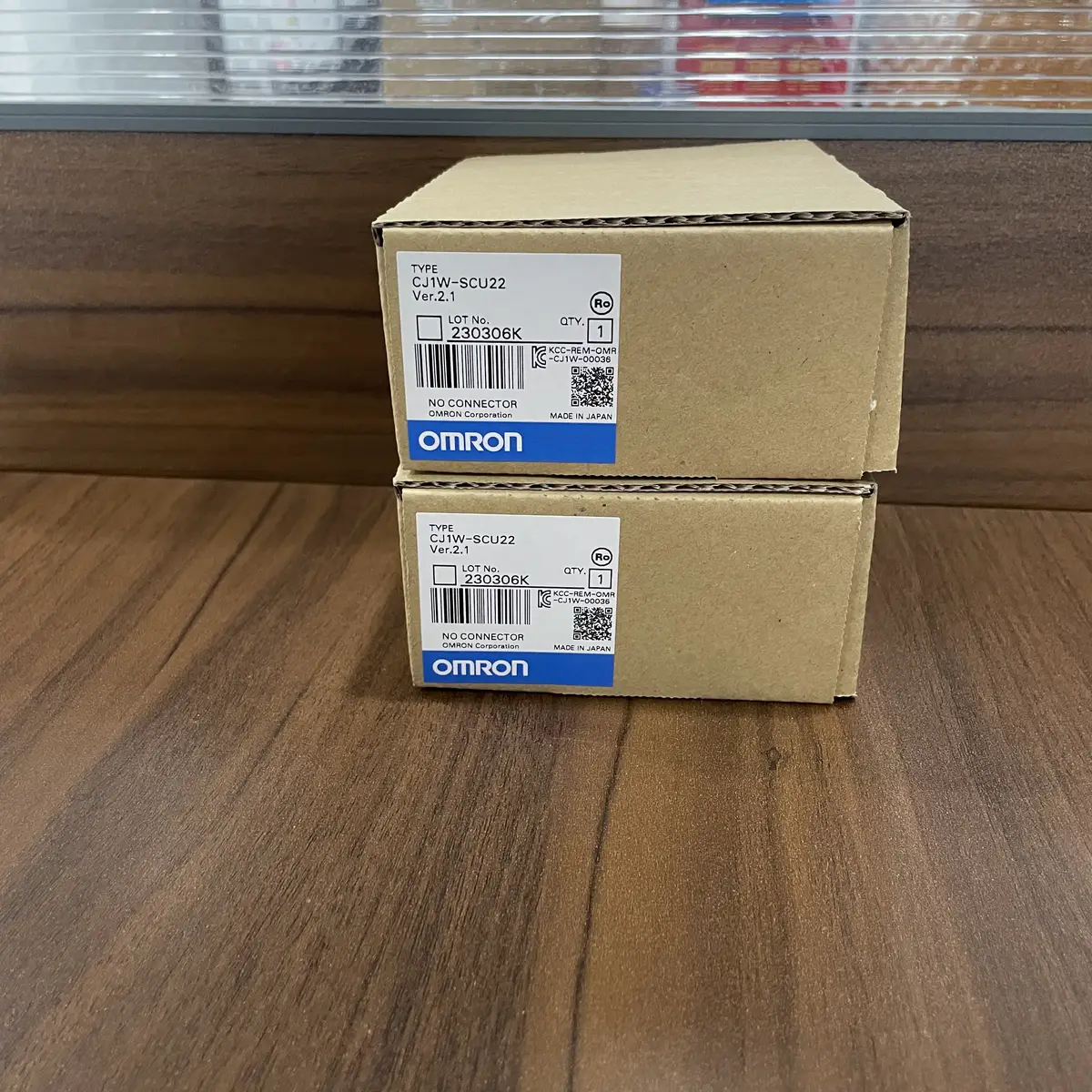

Omron CJ1W-SCU22 Serial Communication Unit RS-422/RS-485

Omron CJ1W-SCU22 Serial Communication Module

The Omron CJ1W-SCU22 is a serial communication module for CJ1 series PLCs, providing reliable RS-422 or RS-485 connectivity for industrial automation systems. This module supports RS-422 and RS-485 standards, enabling connection to multiple devices in multi-drop network configurations. The RS-485 port supports up to 32 devices, making it ideal for networked applications requiring multiple nodes. The CJ1W-SCU22 supports multiple protocols including Omron-specific protocols, Modbus RTU for third-party device integration, and general ASCII communication. The module includes buffer memory for handling data exchange without impacting PLC scan time, ensuring reliable communication. Configuration is easily achieved through CX-Programmer or the module front panel switches. The CJ1W-SCU22 is hot-swappable, allowing module replacement without powering down the PLC system. LED status indicators provide monitoring of communication activity and error conditions. Applications include connection to multiple VFDs, networked sensor systems, legacy device interface, and any application requiring multi-drop serial connectivity.
