Omron CJ1W-SCU32 CJ Series Serial Communication Unit RS-232 RS-485

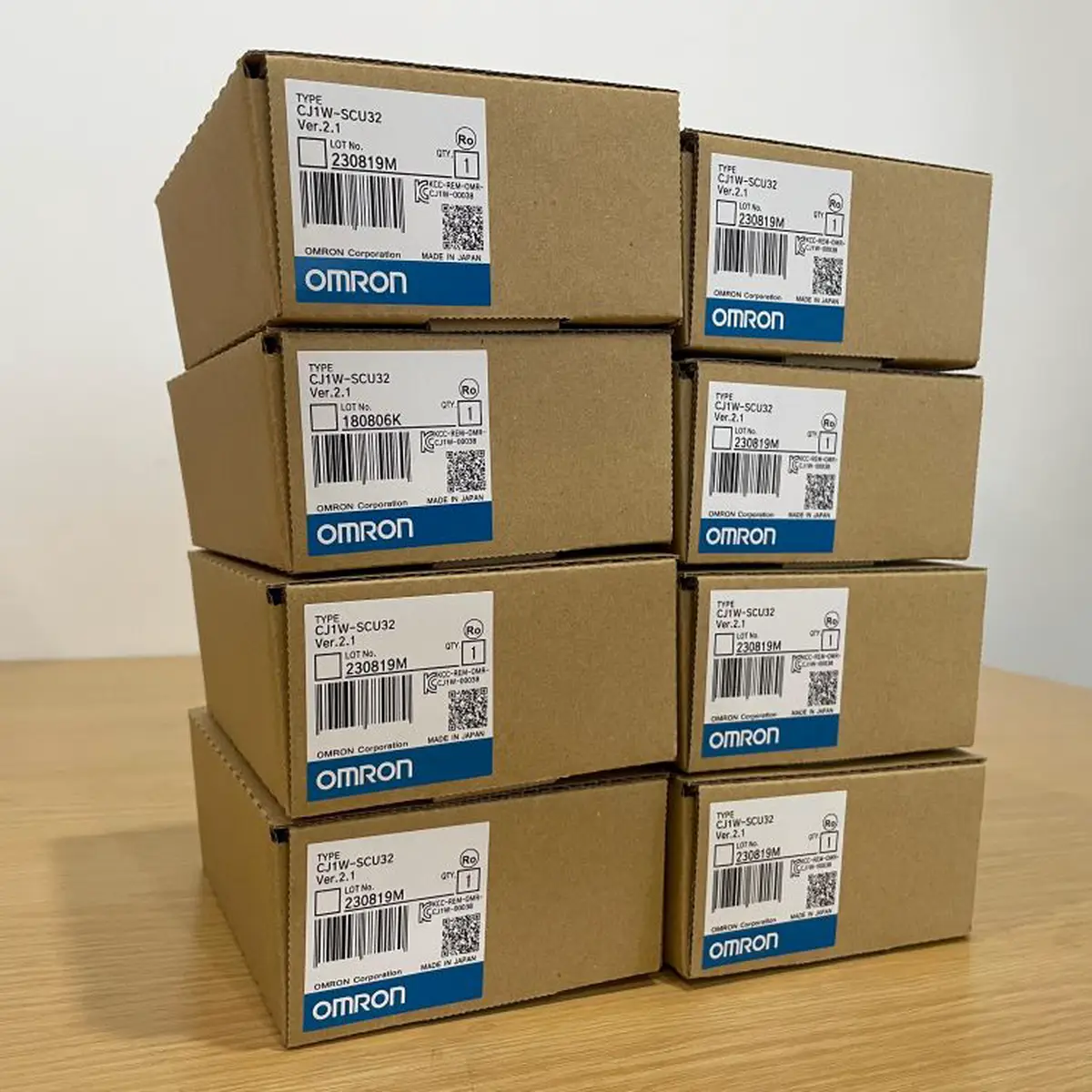

Omron CJ1W-SCU32 Serial Communication Module

The Omron CJ1W-SCU32 is a dual-port serial communication module for CJ1 series PLCs, providing flexible connectivity for industrial automation systems requiring interface to serial devices. This module features two independent serial ports: one RS-232C port and one RS-485 port, enabling connection to a wide variety of field devices including barcode scanners, weigh scales, variable frequency drives, and legacy equipment. The RS-232C port supports point-to-point communication with devices such as HMI terminals, programming tools, and serial printers. The RS-485 port supports multi-drop connections for up to 32 devices, ideal for networks of drives, sensors, or other serial-equipped equipment. The CJ1W-SCU32 supports multiple protocols including Omron-specific protocols, Modbus RTU, and general ASCII communication, providing flexibility for integrating diverse automation equipment. The module includes comprehensive buffer memory for handling high-speed data exchange without impacting PLC scan time. Easy configuration is achieved through CX-Programmer or the module front panel switches, allowing quick setup of communication parameters such as baud rate, data bits, and parity. The CJ1W-SCU32 is hot-swappable, allowing module replacement without powering down the entire PLC system. Applications include connection to VFDs for motor speed control, barcode scanner integration for tracking, serial HMI connections, and legacy device interface in modernization projects.
