SKU: CP1H-X40DT-D

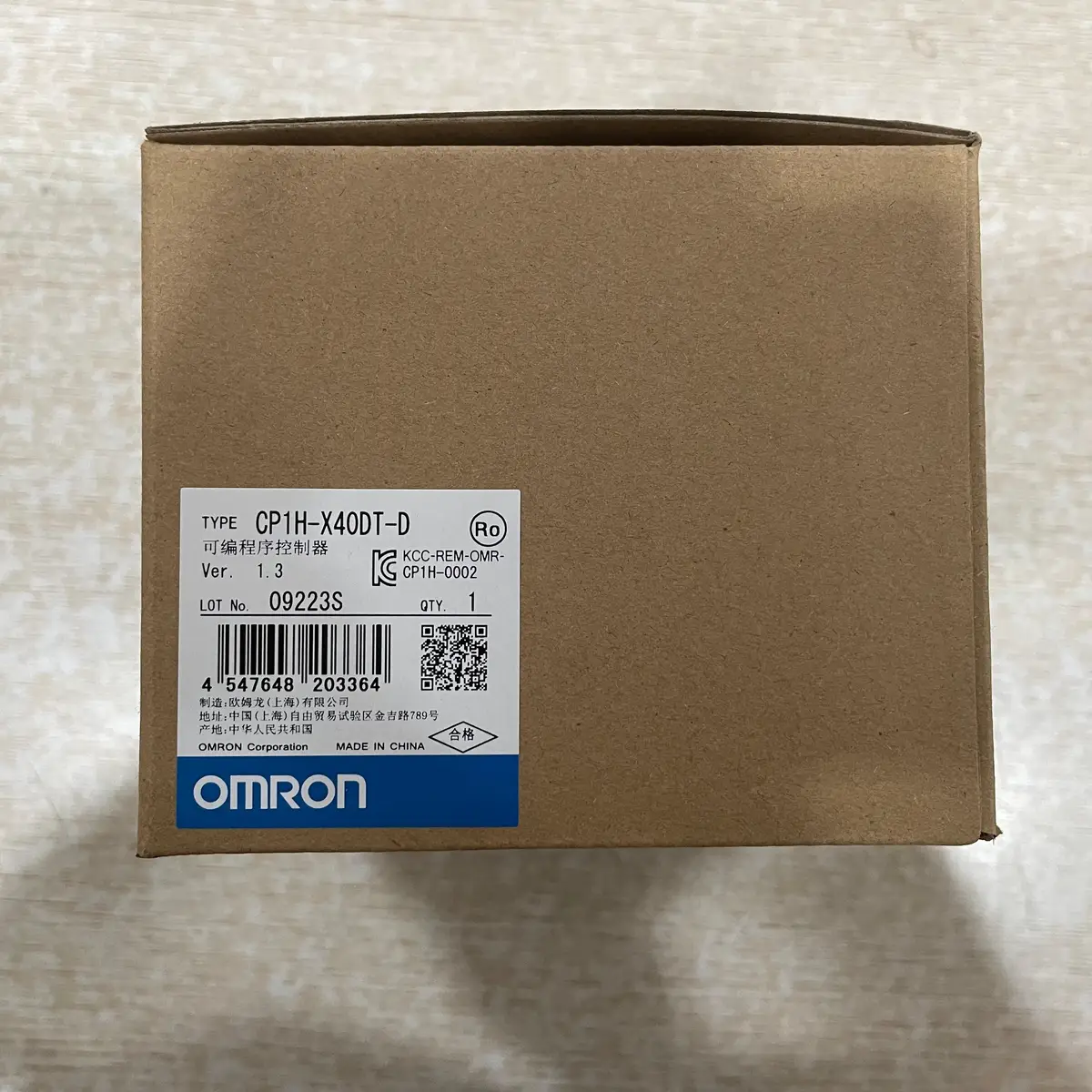

Omron CP1H-X40DT-D Compact PLC 40 I/O Transistor Output
Omron CP1H-X40DT-D is a CP1H-X series high-performance PLC with 40 I/O points, transistor output for high-speed machine automation.
USD 130.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Total I/O Points: 40 points
- Output Type: Transistor (NPN)
- Power Supply: DC24V
- Program Capacity: 10K steps
- High-Speed Counter: 100kHz 4-axis
- Pulse Output: 100kHz 4-axis
Scalable PLC Control Foundation for OEM and Retrofit Projects
The CP1H-X40DT-D fits industrial control projects that require dependable logic execution, maintainable programming workflows, and architecture growth over the equipment lifecycle. It supports standardized automation design across machine families while preserving serviceability in production environments.
Deterministic Logic and Sequence Control
This controller class supports predictable scan-driven execution for interlocks, sequencing, alarms, and coordinated device handling. Deterministic behavior is essential for consistent machine output and repeatable cycle performance.
Platform Reuse Across Equipment Variants
Standardizing on a proven PLC/controller family enables software reuse, reduced engineering lead time, and easier support across multiple machine models or production lines.
Lifecycle Service and Maintainability
A maintainable control architecture with documented I/O mapping, diagnostics, and modular expansion strategy reduces troubleshooting time and improves long-term ownership value.
Typical Applications
- Executes deterministic control logic
- Coordinates multi-device machine behavior
- Supports reusable software structures
- Improves fault diagnostics and recovery time
- Enables modular feature growth over time
- Standardizes control strategy across equipment
Buying Checklist
- Strong fit for scalable machine control
- Maintains deterministic automation behavior
- Supports long-term maintainability
- Good platform standardization candidate
- Reliable industrial controller ecosystem
Technical Specifications
| Model | CP1H-X40DT-D |
|---|---|
| Series | CP1H-X |
| Total I/O Points | 40 points |
| Output Type | Transistor (NPN) |
| Power Supply | DC24V |
| Program Capacity | 10K steps |
| High-Speed Counter | 100kHz 4-axis |
| Pulse Output | 100kHz 4-axis |
| Expansion | Up to 7 expansion units |
| Operating Temperature | 0 to +55°C |
| Software | CX-Programmer |
Frequently Asked Questions
What's the advantage of transistor output?
Faster response (0.5ms vs 10ms relay), longer life, silent operation, suitable for PWM and high-speed switching. Essential for pulse output applications.
Can this PLC control servo motors?
Yes, 100kHz pulse output suitable for servo motor control. Use pulse/direction signals. For advanced servo control, consider EtherCAT-based controllers.
What's the maximum pulse frequency?
100kHz per axis. Sufficient for most stepper and servo applications. For higher frequency, consider CJ2M or NJ series with higher pulse output.
Can I use this for high-speed counting?
Yes, 4-axis 100kHz high-speed counter inputs. Suitable for encoder feedback, multi-axis position monitoring, high-speed counting applications.
