SKU: CP1H-X40DR-A

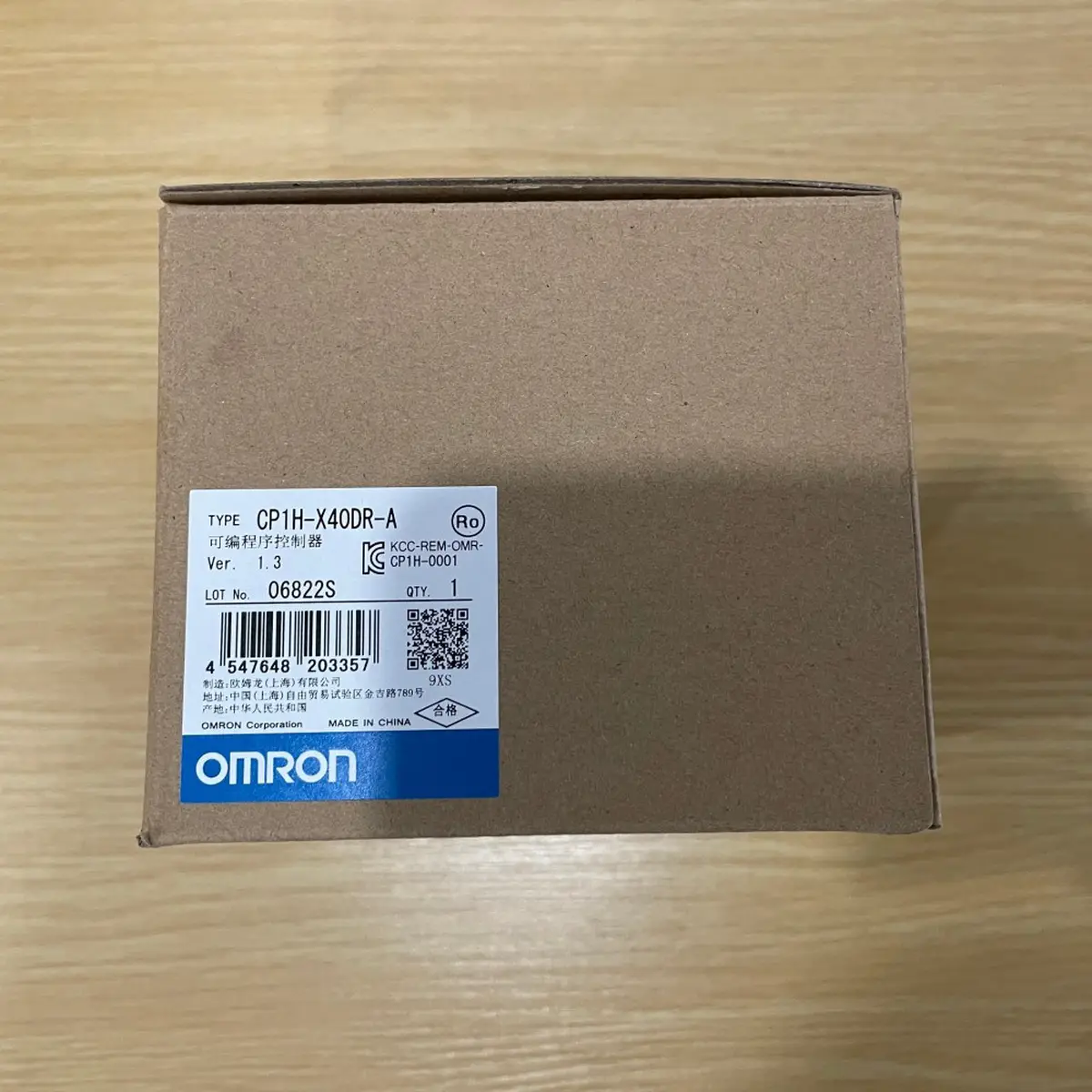

Omron CP1H-X40DR-A High-Performance PLC with 40 I/O Relay Output
Omron CP1H-X40DR-A is a CP1H-X series high-performance PLC with 40 I/O points, relay output for advanced machine automation applications.
USD 130.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- High-performance PLC in the CP1H family
- 40-point class built-in I/O architecture
- Relay-output type for broad load compatibility
- Supports machine sequencing and station coordination logic
- Suitable for OEM standard platform deployments
- Expandable design for growing control requirements
Versatile CP1H Controller for Reliable OEM Machine Sequencing
The CP1H-X40DR-A is widely used in machine automation where dependable control, straightforward maintenance, and scalable expansion are required. Its relay-output style supports broad compatibility with common industrial loads and interface devices. This PLC is frequently selected for packaging, handling, and utility control tasks, especially when OEMs need a proven platform that can be standardized across multiple machine variants.
Typical Applications
- Sequencing conveyor and actuator operations in packaging equipment
- Controlling machine interlocks and process utility devices
- Standard control core for OEM multi-model machine ranges
- Retrofit replacement in older relay-output control systems
- Coordinating station-level I/O in semi-automatic assembly cells
- Managing timed operations and logic in auxiliary plant equipment
Buying Checklist
- Relay outputs provide flexible load interface compatibility
- Proven CP1H family reduces commissioning and training risk
- Good balance of I/O capacity and panel footprint
- Supports long-term maintenance and parts continuity
- Practical platform for repeatable OEM machine builds
Technical Specifications
| Model | CP1H-X40DR-A |
|---|---|
| Series | CP1H-X |
| Type | High-Performance Compact PLC |
| Total I/O Points | 40 points (24 input, 16 output) |
| Output Type | Relay |
| Power Supply | AC100-240V |
| Program Capacity | 10K steps |
| High-Speed Counter | 100kHz 4-axis |
| Pulse Output | 100kHz 4-axis |
| Expansion | Up to 7 expansion units |
| Option Boards | 2 option board slots |
| Operating Temperature | 0 to +55°C |
| Software | CX-Programmer |
Frequently Asked Questions
What's the difference between CP1H-X and CP1H-XA?
CP1H-X: digital I/O only. CP1H-XA: includes 4 analog inputs + 2 analog outputs built-in. Choose XA for applications needing analog I/O.
How many axes can this PLC control?
4-axis 100kHz pulse output. Suitable for multi-axis positioning, XY tables, simple robotics. Each axis independent or coordinated.
Can I add more I/O?
Yes, up to 7 expansion units. Also 2 option board slots for serial communication. Flexible configuration for various I/O requirements.
What motion control functions are available?
Independent positioning, speed control, home return, electronic gear. Programmed via PLC positioning instructions. For interpolation, add motion control unit.
