SKU: CP1L-EL20DR-D

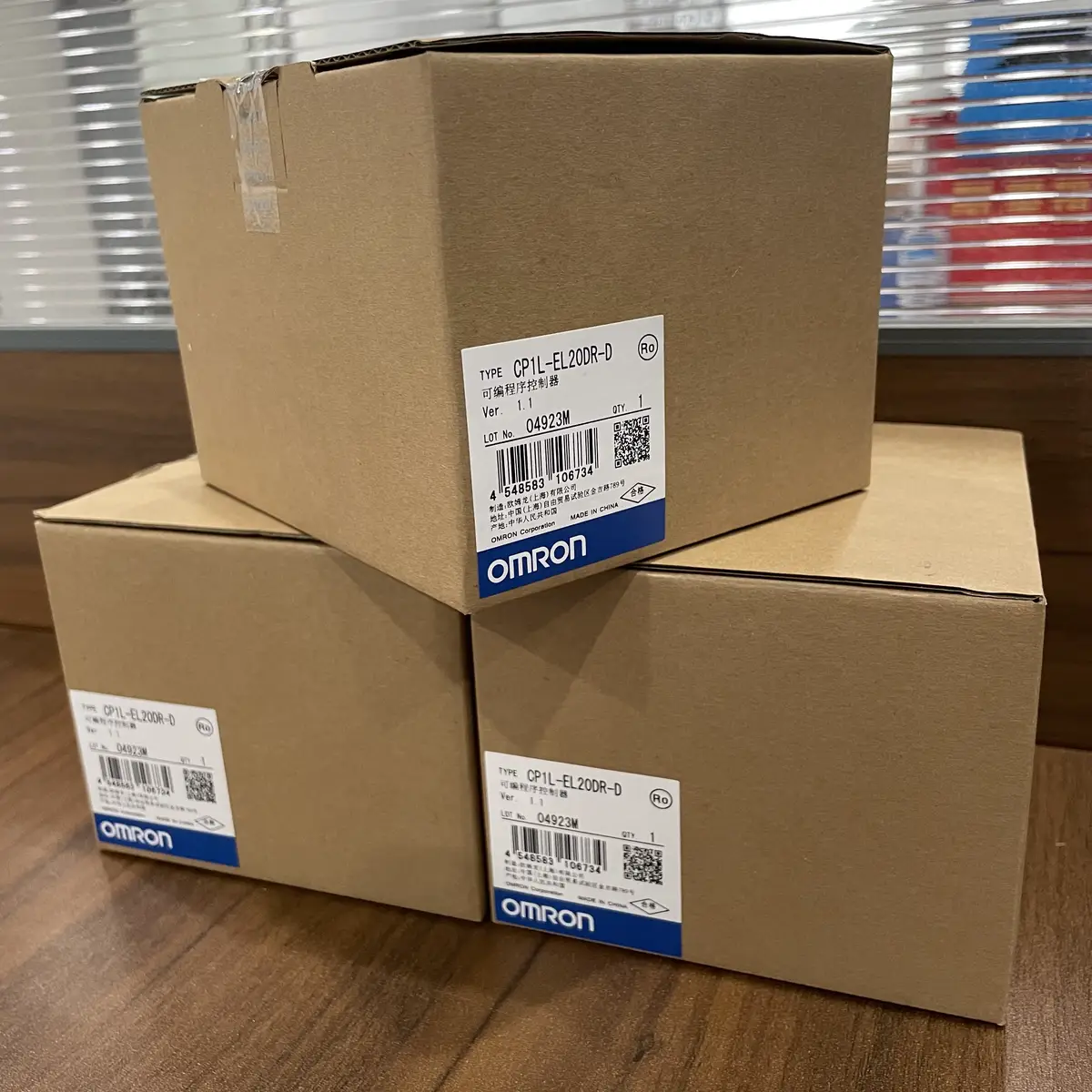

Omron CP1L-EL20DR-D Compact PLC with Built-In Ethernet and Relay Outputs
Omron CP1L-EL20DR-D is a CP1L-EL series compact PLC with 20 I/O points, built-in Ethernet, relay output for networked small machine control.
USD 185.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Compact PLC architecture with built-in Ethernet capability
- Relay output configuration for versatile load compatibility
- Suitable for small and medium standalone machine control
- Supports remote diagnostics and integration workflows
- Space-efficient platform for cabinet-constrained projects
- Popular choice for OEM standard machine families
Network-Ready Compact PLC for OEM and Retrofit Automation
The CP1L-EL20DR-D provides reliable control logic with integrated Ethernet communication, reducing the need for additional networking hardware in smaller systems. Relay outputs make it compatible with a broad range of field loads and interface circuits. It is suitable for packaging, utility, and standalone machine applications where control simplicity, maintainability, and network visibility are all required.
Typical Applications
- Controlling compact packaging and transfer machines
- Managing utility skid logic with remote status visibility
- Interfacing with HMIs over Ethernet networks
- Retrofit replacement for legacy compact PLC platforms
- Coordinating relay-based outputs in mixed-load panels
- Standardizing Ethernet-enabled controller platforms in OEM lines
Buying Checklist
- Built-in Ethernet lowers total system complexity
- Relay outputs simplify integration with varied loads
- Compact format suits small cabinets and retrofit spaces
- Good balance of connectivity and cost for OEM use
- Improves service workflow through network access
Technical Specifications
| Model | CP1L-EL20DR-D |
|---|---|
| Series | CP1L-EL |
| Type | Compact PLC CPU Unit |
| Total I/O Points | 20 points (12 input, 8 output) |
| Output Type | Relay |
| Power Supply | DC24V |
| Built-in Ethernet | Yes |
| Program Capacity | 5K steps |
| High-Speed Counter | 100kHz 1-axis |
| Pulse Output | 100kHz 1-axis |
| Operating Temperature | 0 to +55°C |
| Software | CX-Programmer |
Frequently Asked Questions
What's the advantage of built-in Ethernet?
Direct network connectivity without additional modules. Connect to HMI, SCADA, other PLCs. Remote monitoring and programming capability.
Can this PLC connect to multiple devices?
Yes, Ethernet port supports multiple connections: HMI, SCADA, PLC-to-PLC communication. Flexible networked automation.
What's the difference between CP1L-EL and CP1L-EM?
CP1L-EL: relay output. CP1L-EM: transistor output. Same Ethernet connectivity. Choose based on load type.
Can I program this PLC over Ethernet?
Yes, CX-Programmer connects via Ethernet. Faster than USB. Allows remote programming and monitoring.
