SKU: CP1E-N30DR-A

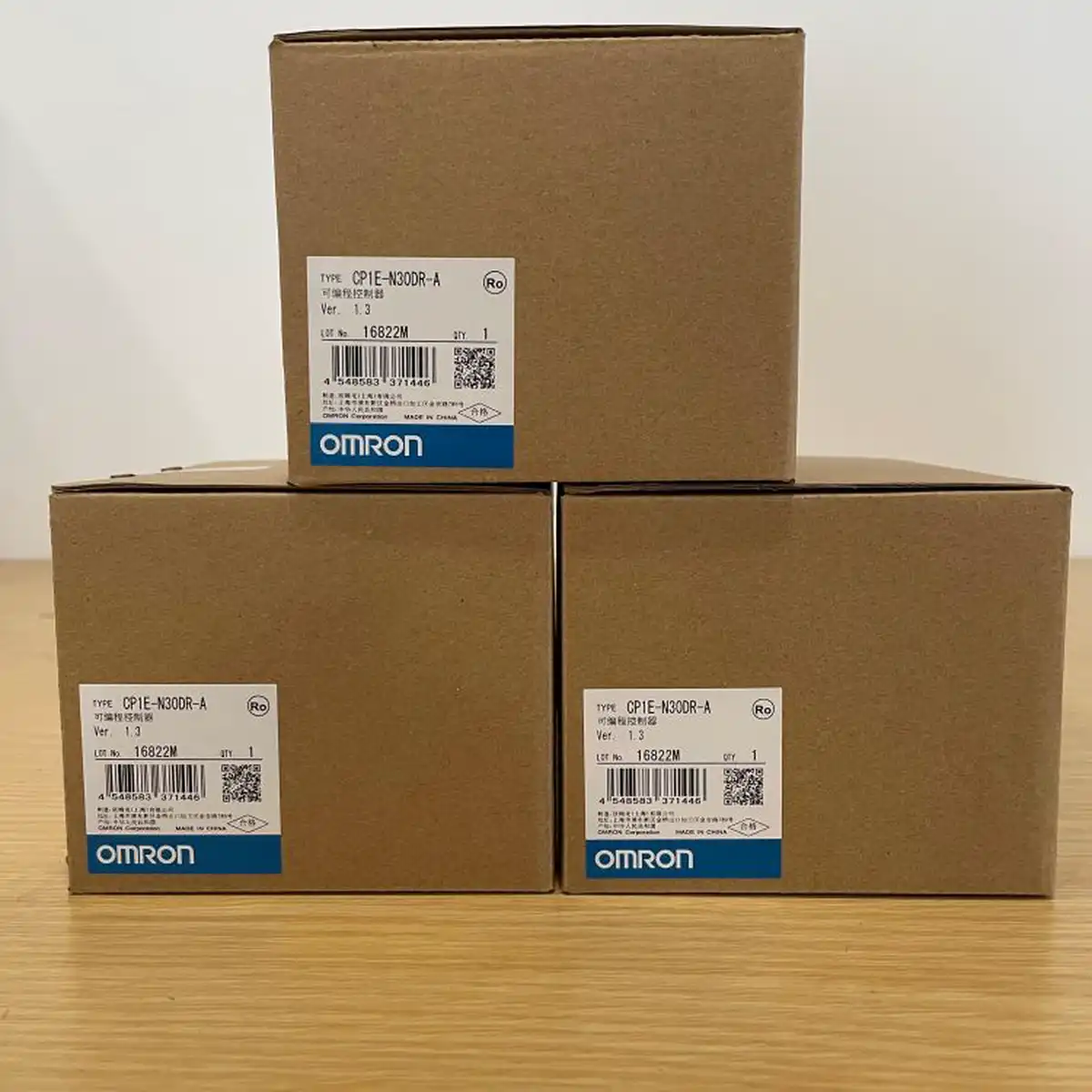

Omron CP1E-N30DR-A Compact PLC 30 I/O Relay Output AC Power
Omron CP1E-N30DR-A is a CP1E-N series compact PLC with 30 total I/O points (18 input, 12 relay output), AC power for small machine automation.
USD 115.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Total I/O Points: 30 points (18 input, 12 output)
- Output Type: Relay
- Power Supply: AC100-240V
- Program Capacity: 5K steps
- High-Speed Counter: 100kHz 1-axis
- Pulse Output: 100kHz 1-axis
Scalable PLC Control Foundation for OEM and Retrofit Projects
The CP1E-N30DR-A fits industrial control projects that require dependable logic execution, maintainable programming workflows, and architecture growth over the equipment lifecycle. It supports standardized automation design across machine families while preserving serviceability in production environments.
Deterministic Logic and Sequence Control
This controller class supports predictable scan-driven execution for interlocks, sequencing, alarms, and coordinated device handling. Deterministic behavior is essential for consistent machine output and repeatable cycle performance.
Platform Reuse Across Equipment Variants
Standardizing on a proven PLC/controller family enables software reuse, reduced engineering lead time, and easier support across multiple machine models or production lines.
Lifecycle Service and Maintainability
A maintainable control architecture with documented I/O mapping, diagnostics, and modular expansion strategy reduces troubleshooting time and improves long-term ownership value.
Typical Applications
- Executes deterministic control logic
- Coordinates multi-device machine behavior
- Supports reusable software structures
- Improves fault diagnostics and recovery time
- Enables modular feature growth over time
- Standardizes control strategy across equipment
Buying Checklist
- Strong fit for scalable machine control
- Maintains deterministic automation behavior
- Supports long-term maintainability
- Good platform standardization candidate
- Reliable industrial controller ecosystem
Technical Specifications
| Model | CP1E-N30DR-A |
|---|---|
| Series | CP1E-N |
| Total I/O Points | 30 points (18 input, 12 output) |
| Output Type | Relay |
| Power Supply | AC100-240V |
| Program Capacity | 5K steps |
| High-Speed Counter | 100kHz 1-axis |
| Pulse Output | 100kHz 1-axis |
| Operating Temperature | 0 to +55°C |
| Dimensions | 130 x 90 x 85mm |
Frequently Asked Questions
When should I choose 30-point over 40-point CP1E?
Choose 30-point when your application requires 18 or fewer inputs and 12 or fewer outputs with room for 20% spare capacity. The 30-point model is more compact and cost-effective for smaller machines.
Can this PLC control a VFD (variable frequency drive)?
Yes, via serial communication (RS-485) using the optional CP1W-CIF11 or CP1W-CIF12 communication board. Supports Modbus-RTU protocol for VFD speed control and monitoring.
What happens during a power outage?
The PLC stops execution. Relay outputs de-energize (open). On power restoration, the PLC restarts from the beginning of the program. For critical applications, consider adding a UPS or using retentive memory for important data.
Is battery backup required for this PLC?
No, the CP1E-N uses flash memory for program storage and doesn't require a battery. Program and parameters are retained without power. Only volatile data (timers, counters, working bits) is lost on power loss.
