SKU: CP1L-L20DR-A

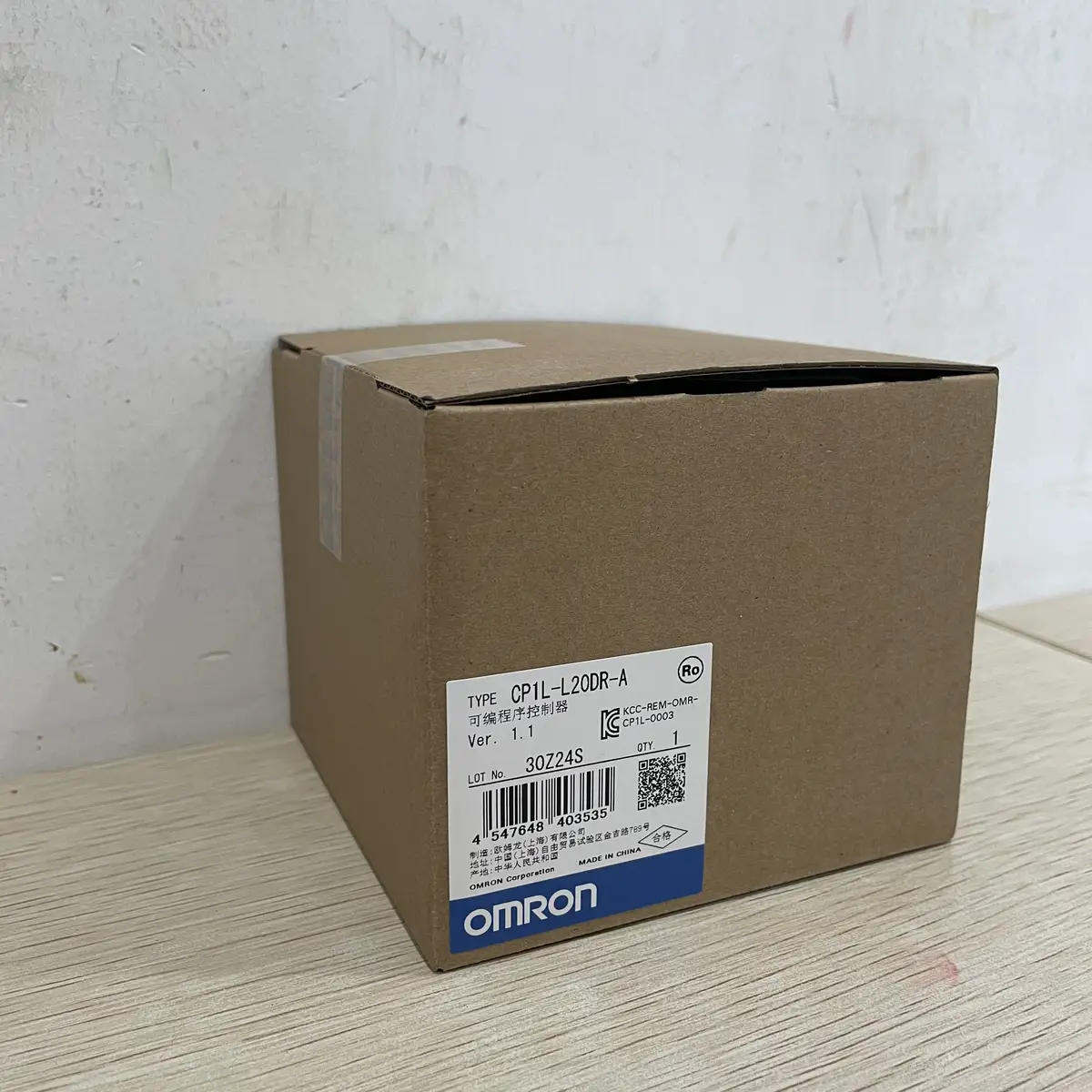

Omron CP1L-L20DR-A CP1L Compact PLC 20 I/O Relay Output AC Power
Omron CP1L-L20DR-A is a CP1L-L series compact PLC with 20 I/O points, relay output, AC power supply for cost-effective small machine control.
USD 151.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- CP1L compact PLC family model
- Relay-output class suitable for mixed field interfaces
- Practical footprint for compact control cabinets
- Supports scalable machine control planning
- Common in OEM and retrofit applications
- Maintains predictable commissioning and service workflow
CP1L Compact Control for Reliable OEM Machine Logic
CP1L-L20DR-A belongs to Omron CP1L family and is used for compact machine control where dependable sequence execution and maintainability are priorities. The L20DR-A class is commonly selected in standalone equipment and retrofit projects that require straightforward field interfacing. CP1L architecture provides a practical balance between compact footprint and scalable control planning. Engineering teams should verify I/O count, output behavior, communication needs, and future expansion before finalizing design. Commissioning should include I/O verification, timing checks, and abnormal-condition response tests. CP1L-L20DR-A is generally selected for robust day-to-day control tasks in small to mid-scale industrial equipment.
Typical Applications
- Compact standalone machine controller
- Utility and support panel sequence automation
- Retrofit replacement of older PLC hardware
- Conveyor and handling process logic
- Interlock and timer-based operation control
- OEM machine platform standardization
Buying Checklist
- Validate I/O count against actual machine signal demand.
- Confirm relay output suitability for load switching profile.
- Plan expansion and communication requirements early.
- Ensure software/toolchain compatibility in maintenance team.
- Maintain spare strategy for high-availability assets.
Technical Specifications
| Model | CP1L-L20DR-A |
|---|---|
| Series | CP1L-L |
| Total I/O Points | 20 points |
| Output Type | Relay |
| Power Supply | AC100-240V |
| Program Capacity | 5K steps |
| High-Speed Counter | 100kHz 1-axis |
| Pulse Output | 100kHz 1-axis |
| Operating Temperature | 0 to +55°C |
| Software | CX-Programmer |
Frequently Asked Questions
What's the difference between CP1L-L and CP1L-M?
CP1L-L: basic model, limited expansion. CP1L-M: enhanced model, more expansion options, faster processing.
Can this PLC control stepper motors?
Yes, 100kHz pulse output suitable for stepper motor control. Use pulse/direction signals.
What power supply does this PLC require?
AC100-240V 50/60Hz. Universal AC input for worldwide use.
Is CP1L series still available?
CP1L is mature product line. For new designs, consider CP2E series. For existing CP1L systems, contact Omron for migration path.
