SKU: CP1W-CIF11

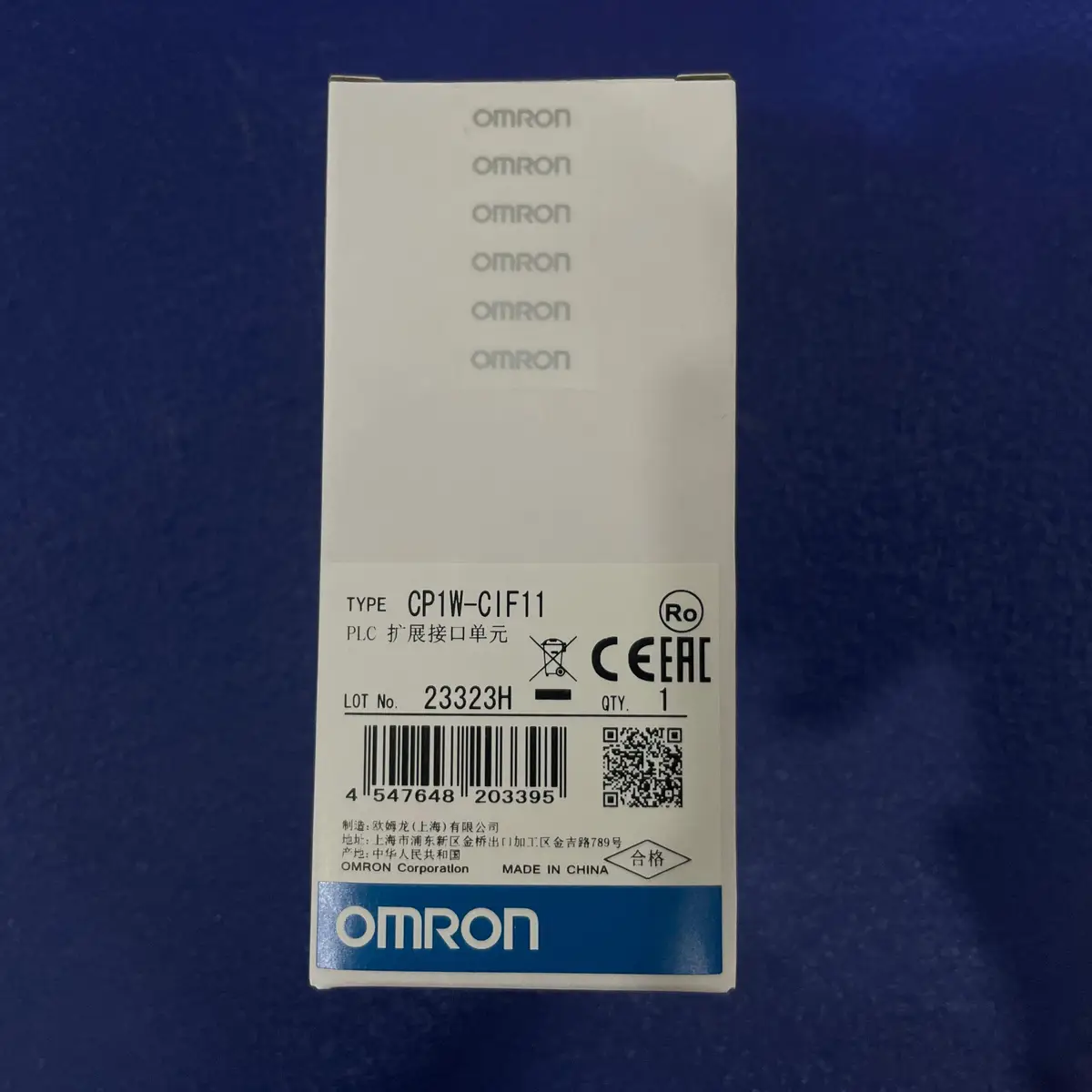

Omron CP1W-CIF11 RS485 Option Board for CP1 Series
Omron CP1W-CIF11 is an RS485 option board for CP1 series PLCs, enabling serial communication for Modbus-RTU networking.
USD 13.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- RS485 communication expansion for CP1 controller platforms
- Supports integration with serial devices and networks
- Useful for HMIs, meters, drives, and instrumentation links
- Helps extend lifecycle value of existing CP1 systems
- Suitable for retrofit communication upgrades
- Practical modular add-on for scalable control architecture
RS485 Communication Expansion for Flexible CP1 System Integration
The CP1W-CIF11 adds RS485 connectivity to CP1 controllers where machine applications require serial communication with external devices. It is useful for integrating HMIs, meters, drives, and multi-drop networks in both new and retrofit projects. This module helps preserve existing controller platforms while expanding practical communication options.
Typical Applications
- Connecting CP1 PLCs to serial HMIs
- Integrating panel meters and instrumentation
- Adding RS485 communication in retrofit machine panels
- Supporting multi-device serial networks in compact systems
- Standardizing communication expansion in OEM designs
- Improving data exchange options without controller migration
Buying Checklist
- Expands CP1 communication without replacing controller
- RS485 support enables broad industrial device integration
- Useful for cost-effective modernization projects
- Supports scalable machine connectivity strategies
- Practical long-term component for maintained CP1 systems
Technical Specifications
| Model | CP1W-CIF11 |
|---|---|
| Series | CP1W |
| Type | Serial Option Board |
| Ports | 1x RS-485 |
| Protocols | Modbus-RTU (master/slave), Host Link |
| Baud Rate | 9.6k to 115.2 kbps |
| Max Stations | 32 stations (multi-drop) |
| Max Distance | 500m |
| Isolation | Non-isolated |
| Connection | Terminal block |
| Slot | Option board slot (right side) |
| Compatible CPUs | CP1E, CP1L, CP1H |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
Where does this option board install?
Installs in option board slot on CP1 CPU right side (between CPU and expansion units, if any). One option board per CPU.
What's the difference between CIF11 and CIF12?
CIF11: non-isolated RS-485. CIF12: isolated RS-485 (higher noise immunity). Choose CIF12 for noisy environments or when ground potential differences exist.
Can I use this for VFD communication?
Yes, common application. Configure as Modbus-RTU master, VFDs as slaves. Control speed, monitor status, read parameters. Most VFDs support Modbus-RTU.
How do I configure Modbus master?
Configure in CX-Programmer: set baud rate, parity, slave addresses. Use Modbus instructions (MODRD, MODWR) in PLC program to read/write slave registers.
