SKU: CP1W-8ET

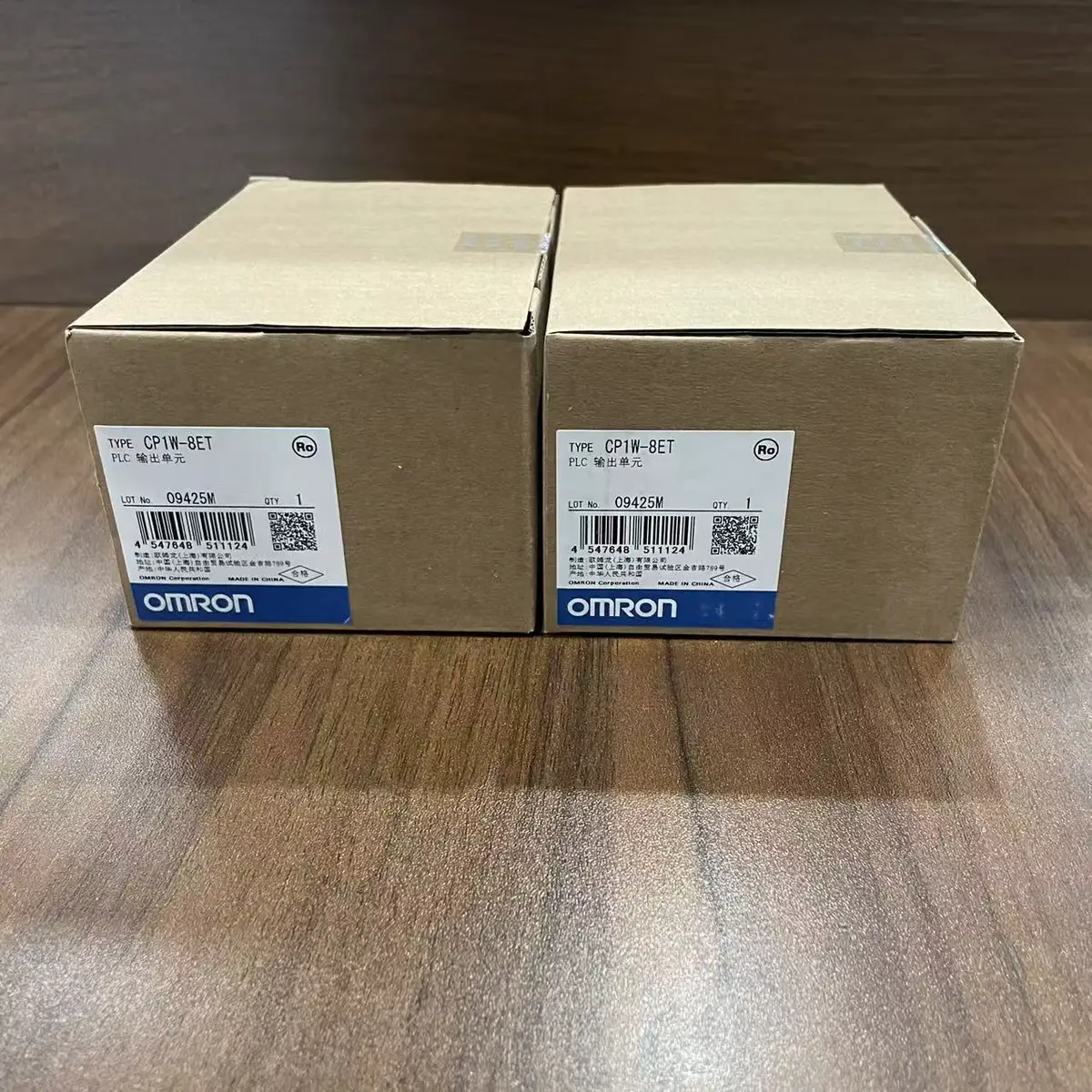

Omron CP1W-8ET Expansion Unit 8-Point Transistor Output NPN
Omron CP1W-8ET is an 8-point NPN transistor output expansion unit for CP1 series PLCs.
USD 35.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Output Points: 8 NPN transistor outputs
- Output Current: 0.3A per point
- Load Voltage: DC12-24V
- Response Time: 0.5ms ON, 1ms OFF
- Connection: Removable terminal block
- Current Consumption: 50mA at 5VDC
Scalable PLC Control Foundation for OEM and Retrofit Projects
The CP1W-8ET fits industrial control projects that require dependable logic execution, maintainable programming workflows, and architecture growth over the equipment lifecycle. It supports standardized automation design across machine families while preserving serviceability in production environments.
Deterministic Logic and Sequence Control
This controller class supports predictable scan-driven execution for interlocks, sequencing, alarms, and coordinated device handling. Deterministic behavior is essential for consistent machine output and repeatable cycle performance.
Platform Reuse Across Equipment Variants
Standardizing on a proven PLC/controller family enables software reuse, reduced engineering lead time, and easier support across multiple machine models or production lines.
Lifecycle Service and Maintainability
A maintainable control architecture with documented I/O mapping, diagnostics, and modular expansion strategy reduces troubleshooting time and improves long-term ownership value.
Typical Applications
- Executes deterministic control logic
- Coordinates multi-device machine behavior
- Supports reusable software structures
- Improves fault diagnostics and recovery time
- Enables modular feature growth over time
- Standardizes control strategy across equipment
Buying Checklist
- Strong fit for scalable machine control
- Maintains deterministic automation behavior
- Supports long-term maintainability
- Good platform standardization candidate
- Reliable industrial controller ecosystem
Technical Specifications
| Model | CP1W-8ET |
|---|---|
| Series | CP1W |
| Type | Expansion Output Unit |
| Output Points | 8 NPN transistor outputs |
| Output Current | 0.3A per point |
| Load Voltage | DC12-24V |
| Response Time | 0.5ms ON, 1ms OFF |
| Connection | Removable terminal block |
| Current Consumption | 50mA at 5VDC |
| Compatible CPUs | CP1E, CP1L, CP1H |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
When should I use 8-point vs larger units?
8ET: when you need few additional outputs. Cost-effective for small expansion. For 10+ outputs, larger units (20, 32, 40-point) more cost-effective per point.
What's the power consumption?
50mA at 5VDC (lowest among output units). Ideal when power budget is limited. External: 7mA per output when ON.
Can I use this for high-speed output?
Standard transistor output: 0.5ms response (approximately 1kHz). For high-speed pulse output, use CPU built-in pulse outputs.
Do I need external fuse?
Yes, external fusing recommended. Use 0.5A fast-blow fuse per output or per common group.
