SKU: CP1W-CIF12-V1

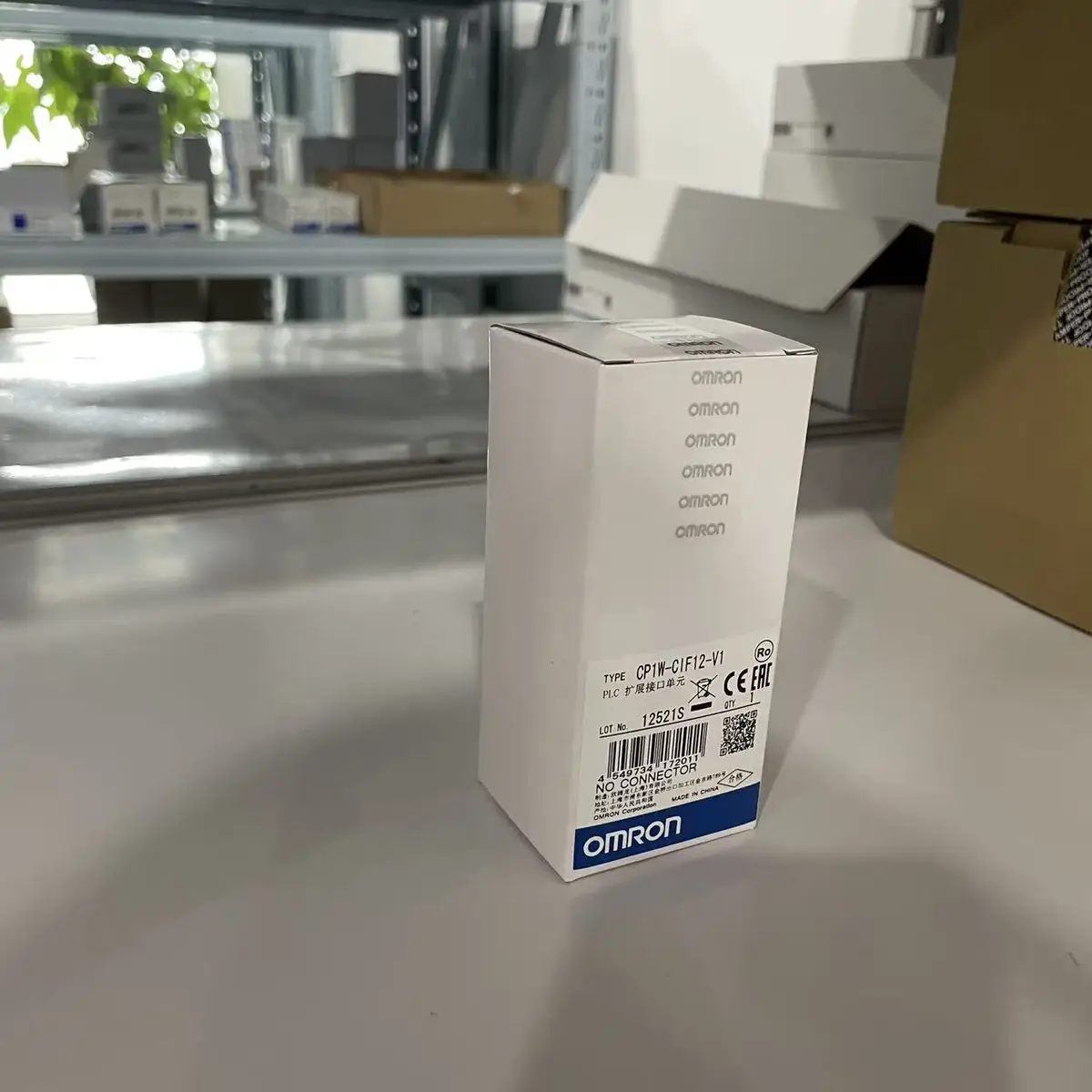

Omron CP1W-CIF12-V1 Isolated RS485 Option Board
Omron CP1W-CIF12-V1 is an isolated RS485 option board for CP1 series PLCs, providing noise-immune serial communication.
USD 28.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Ports: 1x Isolated RS-485
- Protocols: Modbus-RTU, Host Link
- Baud Rate: 9.6k to 115.2 kbps
- Isolation Voltage: 500VAC
- Max Stations: 32 stations
- Max Distance: 500m
Scalable PLC Control Foundation for OEM and Retrofit Projects
The CP1W-CIF12-V1 fits industrial control projects that require dependable logic execution, maintainable programming workflows, and architecture growth over the equipment lifecycle. It supports standardized automation design across machine families while preserving serviceability in production environments.
Deterministic Logic and Sequence Control
This controller class supports predictable scan-driven execution for interlocks, sequencing, alarms, and coordinated device handling. Deterministic behavior is essential for consistent machine output and repeatable cycle performance.
Platform Reuse Across Equipment Variants
Standardizing on a proven PLC/controller family enables software reuse, reduced engineering lead time, and easier support across multiple machine models or production lines.
Lifecycle Service and Maintainability
A maintainable control architecture with documented I/O mapping, diagnostics, and modular expansion strategy reduces troubleshooting time and improves long-term ownership value.
Typical Applications
- Executes deterministic control logic
- Coordinates multi-device machine behavior
- Supports reusable software structures
- Improves fault diagnostics and recovery time
- Enables modular feature growth over time
- Standardizes control strategy across equipment
Buying Checklist
- Strong fit for scalable machine control
- Maintains deterministic automation behavior
- Supports long-term maintainability
- Good platform standardization candidate
- Reliable industrial controller ecosystem
Technical Specifications
| Model | CP1W-CIF12-V1 |
|---|---|
| Series | CP1W |
| Type | Isolated Serial Option Board |
| Ports | 1x Isolated RS-485 |
| Protocols | Modbus-RTU, Host Link |
| Baud Rate | 9.6k to 115.2 kbps |
| Isolation Voltage | 500VAC |
| Max Stations | 32 stations |
| Max Distance | 500m |
| Connection | Terminal block |
| Slot | Option board slot |
| Compatible CPUs | CP1E, CP1L, CP1H |
| Operating Temperature | 0 to +55°C |
Frequently Asked Questions
Why use isolated RS485?
Isolation (500VAC) protects CPU from ground loops, voltage spikes, and noise. Essential when connecting devices with different ground potentials or in noisy environments.
When should I choose CIF12-V1 over CIF11?
CIF12-V1: noisy environments, long cable runs, devices with different ground potentials, outdoor installations. CIF11: clean environments, short runs, same ground potential.
What's the isolation rating?
500VAC isolation between RS-485 port and CPU. Protects CPU from transients and ground potential differences up to 500VAC.
Do I need termination resistors?
Yes, for RS-485 multi-drop: 120Ω termination resistor at both ends of cable. Some devices have built-in termination. Check device documentation.
