SKU: E3FB-DP22

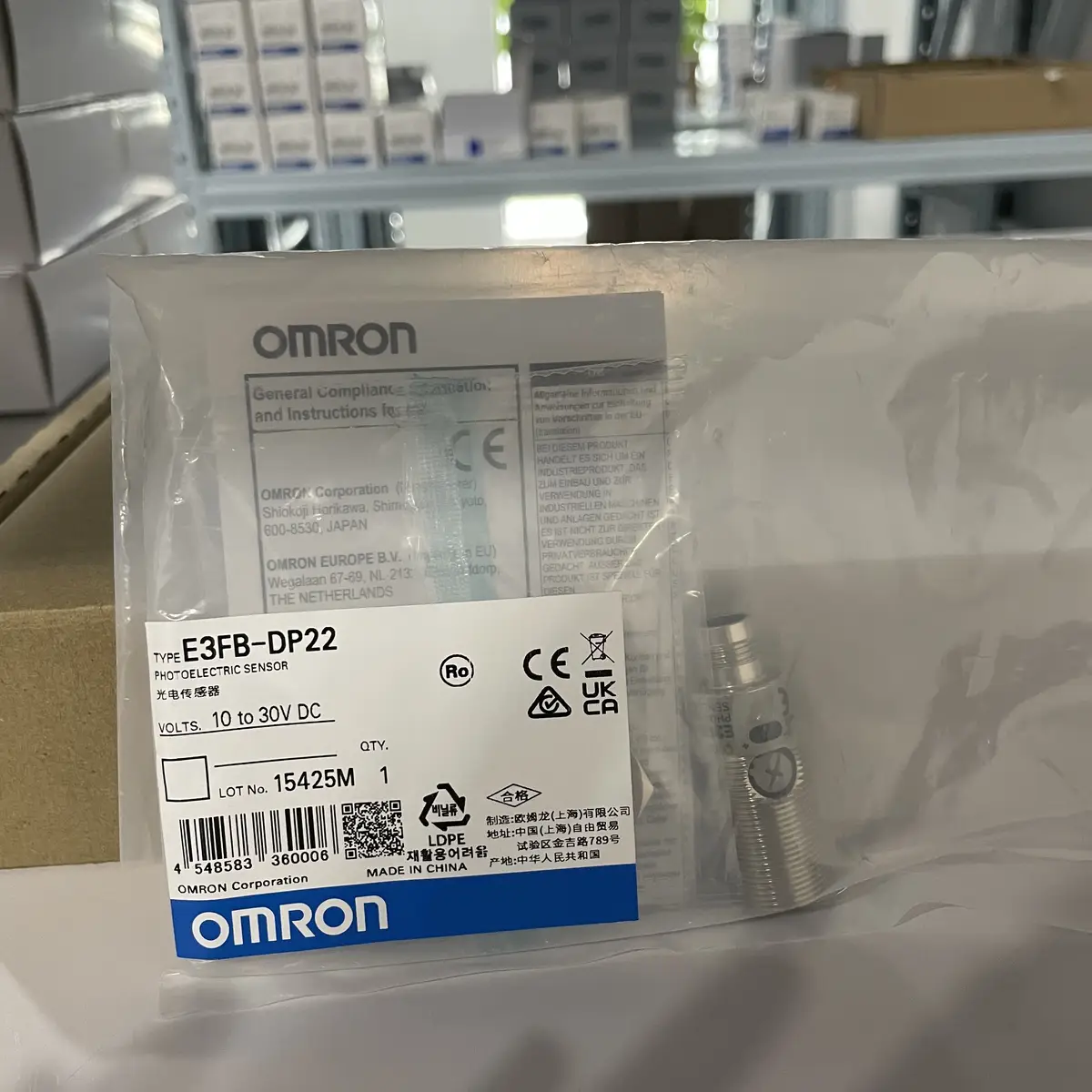

Omron E3FB-DP22 Diffuse Photoelectric Sensor Stainless Steel
Omron E3FB-DP22 is a diffuse photoelectric sensor with stainless steel housing for harsh environment detection applications.
USD 22.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Sensing Range: Up to 100mm
- Output Type: PNP
- Supply Voltage: DC12-24V
- Response Time: 1ms
- Light Source: Red LED
- Protection: IP67/IP69K
Rugged Diffuse Sensor for Industrial Detection Points
The E3FB-DP22 is designed for robust operation in machine environments where direct object sensing is required and washdown or harsh conditions are present. It combines practical short-range detection with industrial durability.
Direct Diffuse Detection
The sensor detects reflected light from the target itself, which simplifies installation by removing the need for separate reflectors.
M12 Connector for Service Efficiency
Connectorized wiring improves replacement speed and supports harness standardization for OEM machine families.
Enhanced Environmental Robustness
High ingress protection class suitability makes it practical for demanding areas where dust, moisture, or frequent cleaning occur.
Typical Applications
- Detects objects without reflector alignment
- Supports harsh environment deployments
- Improves service speed with M12 interface
- Provides stable triggers for PLC logic
- Reduces mechanical wear from contact sensors
- Enables consistent detection in compact machine zones
Buying Checklist
- Rugged sealing for demanding conditions
- M12 connector simplifies maintenance
- Short-range diffuse sensing convenience
- Reliable industrial integration
- Suitable for washdown-adjacent applications
Technical Specifications
| Model | E3FB-DP22 |
|---|---|
| Series | E3FB |
| Type | Diffuse Photoelectric Sensor |
| Sensing Range | Up to 100mm |
| Output Type | PNP |
| Supply Voltage | DC12-24V |
| Response Time | 1ms |
| Light Source | Red LED |
| Protection | IP67/IP69K |
| Material | Stainless steel (316L) |
| Operating Temperature | -25 to +55°C |
Frequently Asked Questions
What's the advantage of stainless steel housing?
Corrosion resistance, chemical resistance, high-pressure washdown. Ideal for food processing, pharmaceutical, harsh environments.
What's the sensing range?
Up to 100mm for white paper. Actual range depends on target.
What's the output type?
PNP output (sourcing). Common for European PLCs and control systems.
Can this sensor be used outdoors?
Yes, IP67/IP69K rating provides weather protection. Protect from direct sunlight.
