SKU: E3Z-D62 2M

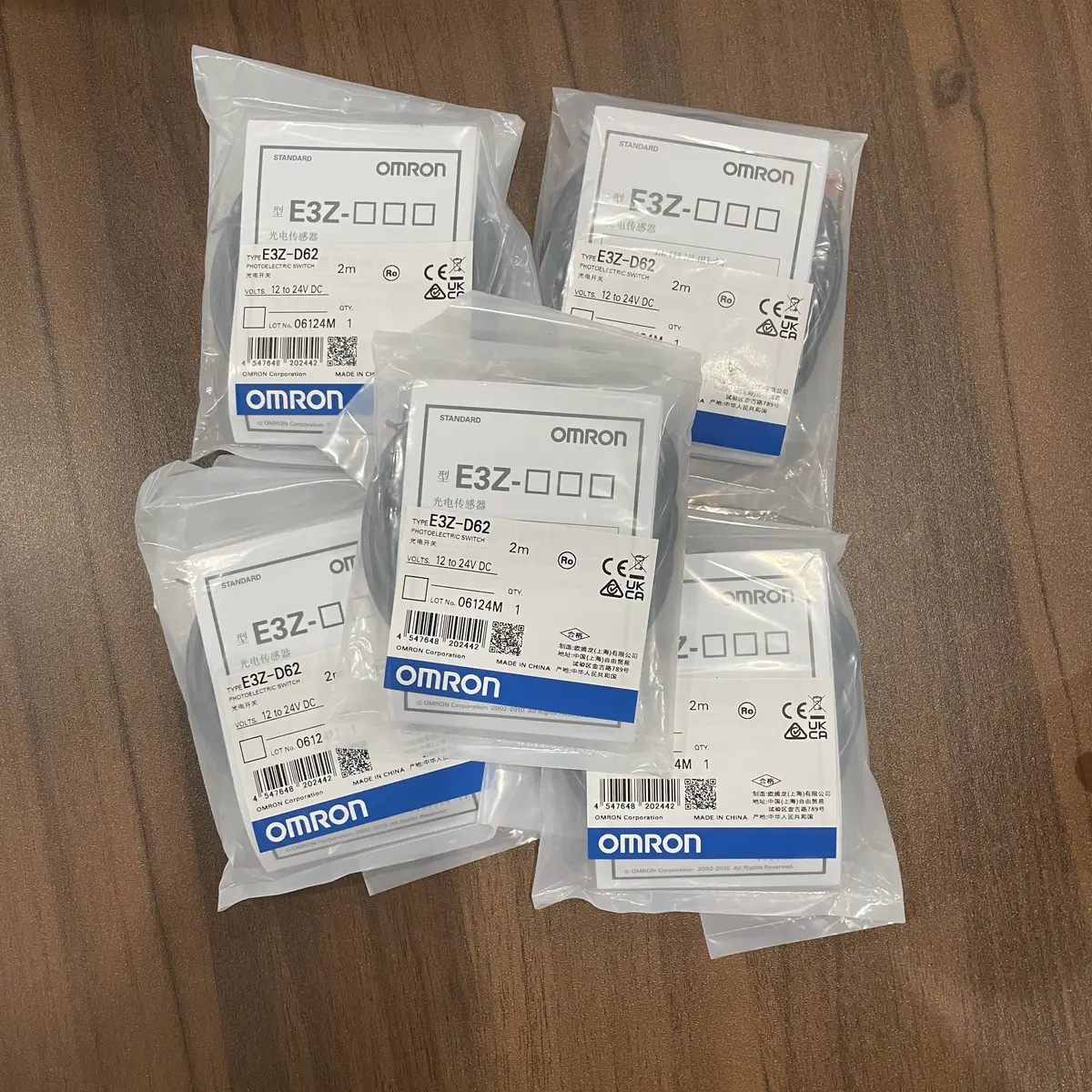

Omron E3Z-D62 2M Diffuse Photoelectric Sensor 100mm PNP 2m Cable
Omron E3Z-D62 2M is a diffuse reflective photoelectric sensor with 100mm range, PNP output, 2-meter pre-wired cable, IP67 protection for industrial detection.
USD 16.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Sensing Range: 5-100mm
- Output Type: PNP Open Collector
- Supply Voltage: DC12-24V
- Cable Length: 2m
- Protection: IP67
- Response Time: 1ms
Short-Range Diffuse Sensing for Compact Automation Tasks
The E3Z-D62 2M is optimized for direct object detection without a separate reflector. It is commonly used in packaging, assembly, and feeder applications where simple installation and stable response are required.
Diffuse Detection Simplifies Mechanical Layout
Because detection relies on reflected light from the target itself, this sensor style removes the need for separate reflector mounting in many short-range use cases.
Compact and Rugged E3Z Body
The durable housing suits industrial machine environments and allows flexible positioning close to product paths or actuator mechanisms.
Straightforward PLC Integration
The output signal can be wired to standard PLC inputs for sequence transitions, part confirmation, and machine interlocks.
Typical Applications
- Detects objects without reflector hardware
- Supports compact installation near target path
- Improves repeatability over mechanical contacts
- Enables quick commissioning in short-range setups
- Provides stable PLC trigger signals
- Reduces maintenance due to non-contact operation
Buying Checklist
- No reflector required for many applications
- Compact rugged body fits tight machine spaces
- 2 m cable supports direct cabinet routing
- Reliable short-range detection in industrial use
- Trusted E3Z family performance
Technical Specifications
| Model | E3Z-D62 2M |
|---|---|
| Series | E3Z |
| Sensing Range | 5-100mm |
| Output Type | PNP Open Collector |
| Supply Voltage | DC12-24V |
| Cable Length | 2m |
| Protection | IP67 |
| Response Time | 1ms |
| Light Source | Red LED |
| Operating Temperature | -25 to +55°C |
Frequently Asked Questions
What cable length?
2-meter pre-wired cable for standard installation reach.
Output type?
PNP open collector (sourcing output).
Sensing range?
5-100mm adjustable diffuse reflective.
Protection rating?
IP67 for industrial environments.
