SKU: E3T-FD11

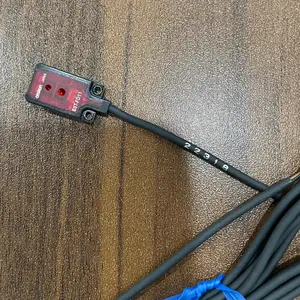

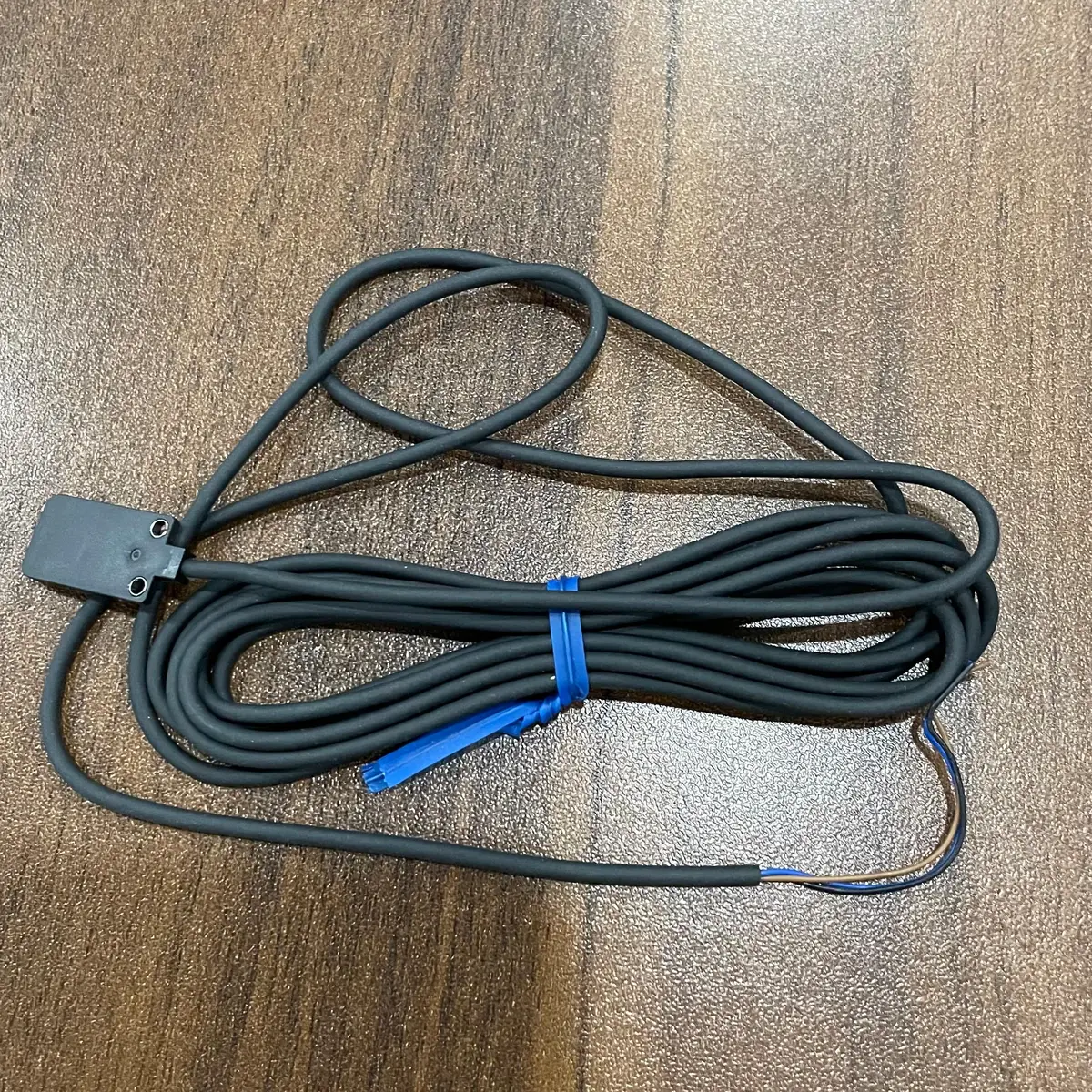

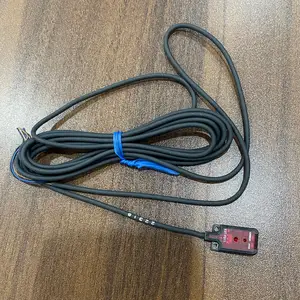

Omron E3T-FD11 Diffuse Fiber Optic Unit for E3T Amplifier
Omron E3T-FD11 is a diffuse fiber optic unit for E3T series amplifiers, enabling detection in confined spaces and high-temperature environments.
USD 28.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Ultra-compact 20x8x12mm housing
- Diffuse detection mode
- 0.5ms high-speed response
- 24VDC operation
- Light-on/Dark-on selectable
- Compatible with E32 fiber optics
- Wire-save function
Omron E3T-FD11 Fiber Optic Sensor
The Omron E3T-FD11 is an ultra-compact fiber optic sensor amplifier unit designed for applications requiring detection in extremely confined spaces. This sensor amplifier supports diffuse detection mode, where the sensor detects light reflected from the target object itself without requiring a separate reflector. The E3T-FD11 features a compact housing measuring just 20x8x12mm, one of the smallest fiber optic amplifiers available, making it ideal for installation in tight spaces where standard sensors cannot fit. The sensor operates on 24VDC power supply and features both light-on and dark-on output modes, selectable via a wire or external signal. With a response time of 0. 5ms, the E3T-FD11 is suitable for high-speed detection applications. The amplifier is compatible with Omron E32 series fiber optic cables, allowing selection of various fiber types for different detection requirements. The E3T-FD11 is particularly suitable for electronics assembly, medical device manufacturing, and other applications requiring precise detection in limited space.
Typical Applications
- Electronics assembly detection
- Small part presence sensing
- Medical device manufacturing
- Semiconductor processing
- Limited space detection
- Label detection
- Chip mounting verification
- Precision assembly detection
Buying Checklist
- Ultra-compact for confined spaces
- High-speed response for fast processes
- Versatile E32 fiber compatibility
- Simple wire-save setup
- Cost-effective compact solution
- Proven Omron reliability
- Easy installation
Technical Specifications
| Model | E3T-FD11 |
|---|---|
| Series | E3T |
| Type | Diffuse Fiber Optic Unit |
| Sensing Mode | Diffuse Reflective |
| Sensing Range | 5-40mm (with E3T amplifier) |
| Fiber Type | Diffuse reflective |
| Fiber Cable Length | 500mm |
| Operating Temperature | -55 to +80°C (fiber only) |
| Bend Radius | R25mm min |
| Amplifier | Requires E3T amplifier (sold separately) |
| Application | Confined spaces, high-temperature |
Frequently Asked Questions
What amplifier is required?
Requires E3T series fiber amplifier (sold separately). The amplifier provides the light source and output switching.
What is the sensing range?
5-40mm depending on target size and reflectivity when used with E3T amplifier.
What temperature range?
Fiber cable operates from -55 to +80°C, suitable for high-temperature applications where standard sensors can't be used.
What applications?
Ideal for confined spaces, high-temperature environments, and applications requiring remote sensing.
