SKU: E3T-ST11 2M

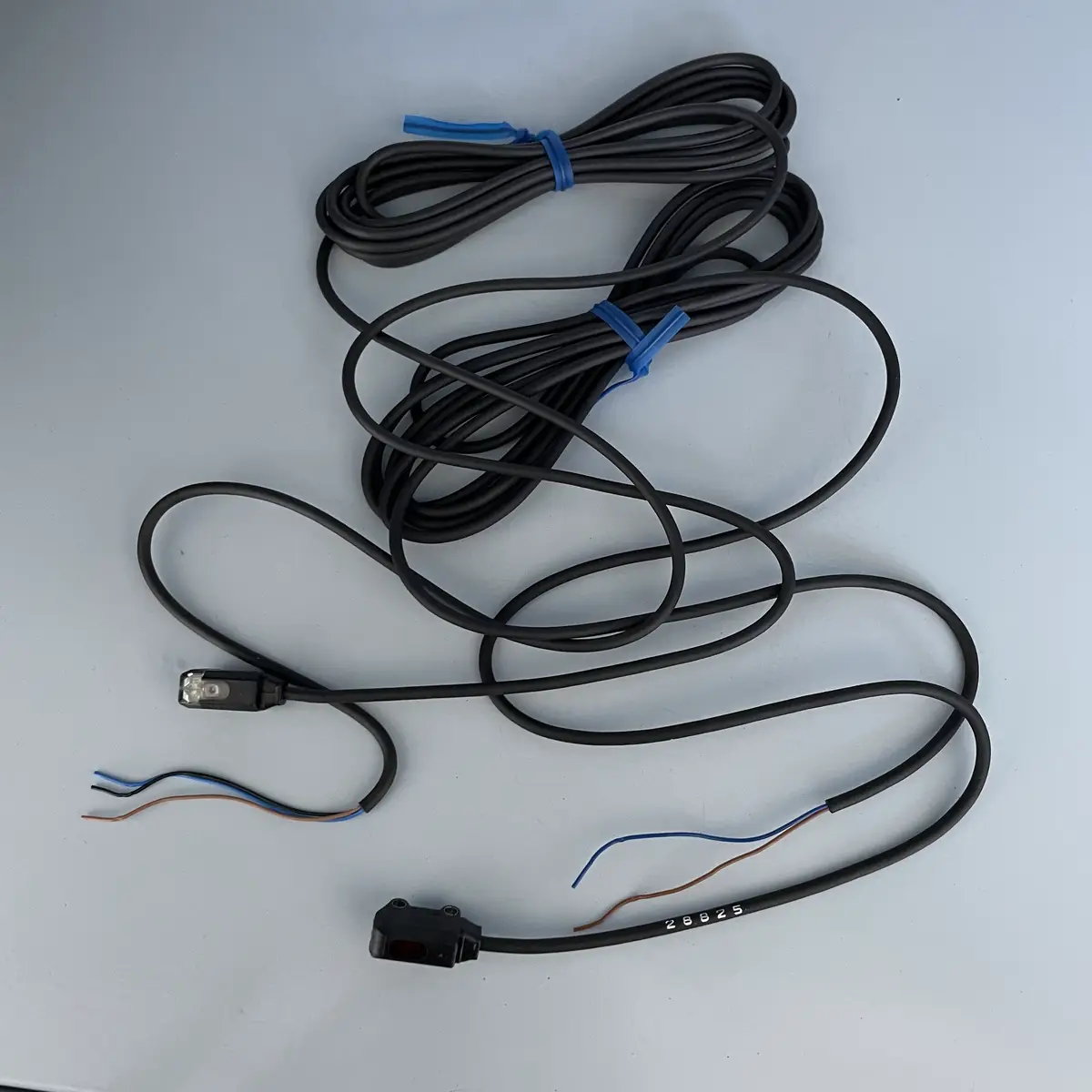

Omron E3T-ST11 2M Through-Beam Photoelectric Sensor 2.5m NPN 2m Cable Ultra-Compact
Omron E3T-ST11 2M is an ultra-compact through-beam photoelectric sensor with 2.5m sensing range, NPN output, 2m cable for space-constrained detection applications.
USD 26.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Ultra-compact 20x8x12mm housing
- Through-beam detection mode
- 0.5ms high-speed response
- 24VDC operation
- Light-on/Dark-on selectable
- 2-meter pre-wired cable
- Compatible with E32 fiber optics
Omron E3T-ST11 Through-beam Fiber Sensor
The Omron E3T-ST11 2M is an ultra-compact through-beam fiber optic sensor amplifier designed for detection in confined spaces. This sensor amplifier supports through-beam detection mode, where the sensor detects interruption of a light beam between the transmitter and receiver fiber optic cables. The E3T-ST11 features an extremely small housing measuring just 20x8x12mm, one of the smallest fiber optic amplifiers available, making it ideal for installation in tight spaces where standard sensors cannot fit. The 2M suffix indicates a 2-meter pre-wired cable for convenient connection. The sensor operates on 24VDC power supply and features both light-on and dark-on output modes, selectable via a wire. With a response time of 0. 5ms, the E3T-ST11 is suitable for high-speed detection applications including small part counting, position sensing, and quality inspection in electronics manufacturing, medical devices, and precision assembly applications.
Typical Applications
- Small part detection
- Electronics assembly
- Medical device manufacturing
- Precision part counting
- Slot detection
- Label detection
- Edge detection
- Quality inspection
Buying Checklist
- Ultra-compact for confined spaces
- High-speed response
- Versatile E32 fiber compatibility
- Pre-wired for easy installation
- Simple operation mode selection
- Cost-effective compact solution
- Proven Omron reliability
Technical Specifications
| Model | E3T-ST11 2M |
|---|---|
| Series | E3T |
| Type | Through-Beam Photoelectric Sensor |
| Sensing Mode | Through-Beam |
| Sensing Range | 0-2.5m |
| Output Type | NPN Open Collector |
| Supply Voltage | DC12-24V ±10% |
| Response Time | 1ms max |
| Light Source | Red LED (660nm) |
| Cable Length | 2m pre-wired |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +55°C |
| Dimensions | 10 x 20 x 31mm (W x H x D) |
| Mass | Approx. 15g |
| Indicator | Operation LED (orange) |
| Connection | Pre-wired cable |
Frequently Asked Questions
What makes E3T series ultra-compact?
The E3T series features a slim 10mm width and compact 20 x 31mm profile, ideal for space-constrained installations where standard sensors won't fit.
What is the sensing range?
Up to 2.5m for through-beam detection. Requires separate emitter and receiver units.
What cable length?
2-meter pre-wired cable for standard installation reach.
Output type?
NPN open collector (sinking output) compatible with most PLC inputs.
