SKU: E3Z-R61 2M

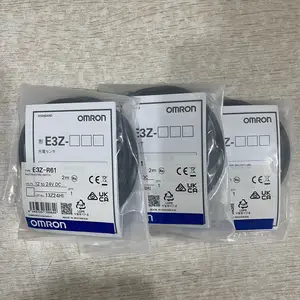

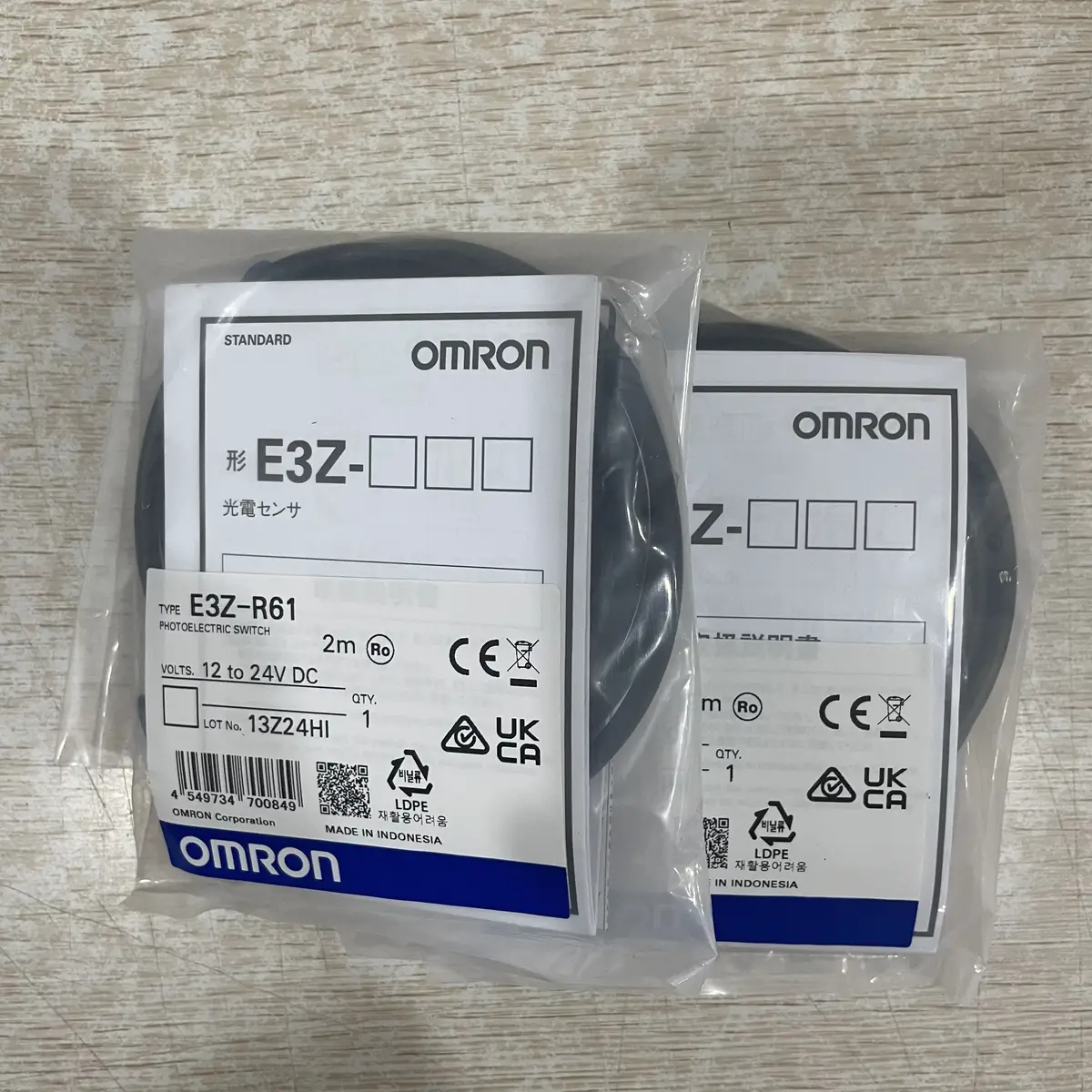

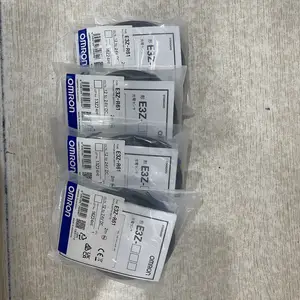

Omron E3Z-R61 2M Retro-Reflective Photoelectric Sensor 4m NPN 2m Cable MSR
Omron E3Z-R61 2M is a retro-reflective photoelectric sensor with 4m sensing range, NPN output, 2m cable, MSR function for reliable detection of shiny objects.
USD 22.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- 3m retroreflective sensing distance
- MSR function for background rejection
- PNP output configuration
- 2-meter pre-wired cable
- Compact IP67 housing
- Visible red LED for alignment
- Light-on/Dark-on selectable
Omron E3Z-R61 Photoelectric Sensor
The Omron E3Z-R61 is a retroreflective photoelectric sensor designed for medium-range detection applications. This sensor offers a sensing distance of 3 meters when used with a retroreflective reflector, making it suitable for a wide range of industrial detection tasks. The E3Z-R61 features a compact and rugged construction with an IP67 protection rating, ensuring reliable operation in dusty and wet industrial environments. The sensor uses an infrared LED light source and features MSR (Mirror Surface Rejection) function, which prevents false detection caused by shiny or reflective backgrounds. The 2M suffix indicates a 2-meter pre-wired cable for easy connection. The PNP transistor output provides compatibility with PLC inputs commonly used in Asian automation systems. The E3Z-R61 is widely used in packaging machinery, conveyor systems, and material handling applications where reliable object detection is required without the complexity of diffuse sensors.
Typical Applications
- Conveyor product detection
- Packaging line sensing
- Object presence detection
- Bottle and container detection
- Door/window detection
- Pallet detection
- Material handling
- General automation
Buying Checklist
- Medium range fits most applications
- MSR function prevents false triggers
- IP67 rated for harsh environments
- Pre-wired for easy installation
- Compact size for tight spaces
- Proven E3Z reliability
- Cost-effective retroreflective solution
Technical Specifications
| Model | E3Z-R61 2M |
|---|---|
| Series | E3Z |
| Type | Retro-Reflective Photoelectric Sensor |
| Sensing Mode | Retro-Reflective with MSR |
| Sensing Range | 0.1-4m (with E39-R1 reflector) |
| Output Type | NPN Open Collector |
| Supply Voltage | DC12-24V ±10% |
| Response Time | 1ms max |
| Light Source | Red LED (660nm) |
| Cable Length | 2m pre-wired |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +55°C |
| MSR Function | Yes (Mirror Set-up Recognition) |
| Material | PBT housing |
| Indicator | Operation LED (orange) |
Frequently Asked Questions
What is MSR function?
MSR (Mirror Set-up Recognition) uses polarized light to distinguish between the special reflector and shiny objects. This enables detection of reflective targets like metal, glass, and film that would normally pass the beam.
What reflector should I use?
Use Omron E39-R1 or E39-R4 reflectors for optimal performance. Sensing range varies with reflector size: E39-R1 provides up to 4m range.
Can this detect transparent objects?
Yes, with MSR function, this sensor can detect transparent films and glass by detecting the polarization change from the reflector.
What is the sensing range?
Up to 4m with E39-R1 reflector. Actual range depends on reflector size and environmental conditions.
