SKU: E3Z-LR61

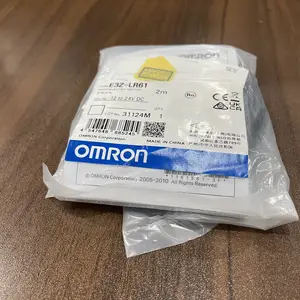

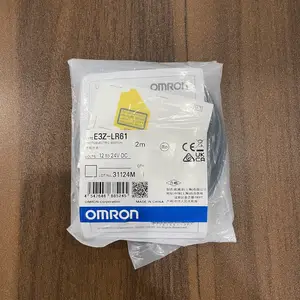

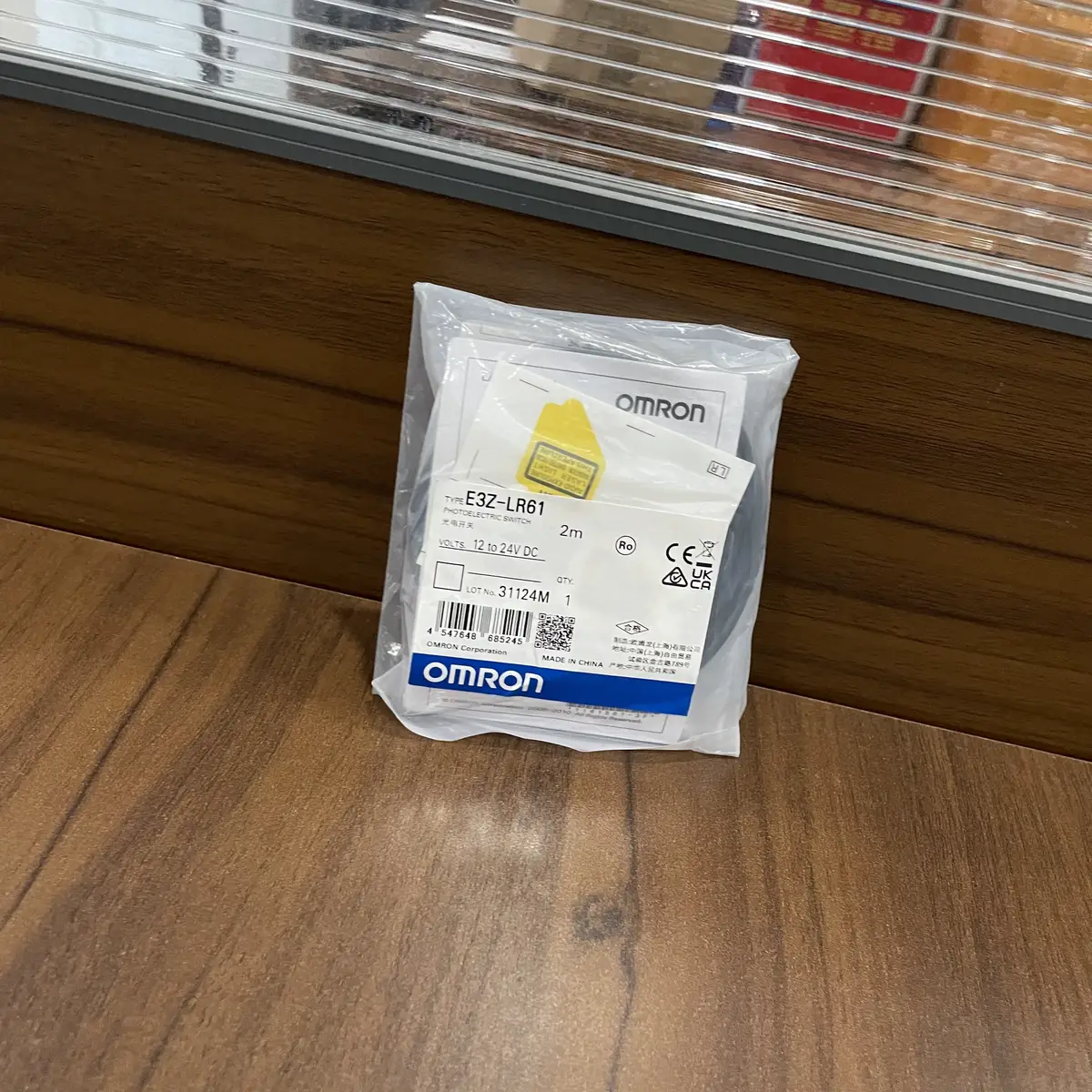

Omron E3Z-LR61 Retro-Reflective Laser Photoelectric Sensor 350mm NPN MSR
Omron E3Z-LR61 is a retro-reflective laser photoelectric sensor with 350mm range, NPN output, MSR function for detecting shiny and transparent objects.
USD 54.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Laser retro-reflective sensing for long-range reliability
- 15m class detection range for extended machine spans
- M.S.R. function support for stable sensing behavior
- IP67 protection for demanding industrial use
- Suitable for high-speed material handling applications
- Reliable operation in repetitive automation cycles
Laser Retro-Reflective Long-Range Detection for High-Speed Automation
The E3Z-LR61 combines laser precision with retro-reflective sensing to deliver dependable detection across longer distances in industrial environments. It is suitable for conveyor, logistics, and transfer applications requiring consistent signal quality under varying target conditions. Its robust design supports high-cycle operation and practical field maintenance.
Typical Applications
- Detecting cartons on long conveyor segments
- Triggering sortation events at extended distances
- Monitoring pallet passage in logistics flows
- Replacing lower-range sensors in large machine layouts
- Standardizing long-range laser sensing in OEM equipment
- Improving detection accuracy where background conditions vary
Buying Checklist
- Long-range laser sensing improves layout flexibility
- Retro-reflective method supports stable detection
- IP67 durability supports harsh factory operation
- Strong fit for high-throughput logistics automation
- Practical upgrade for challenging long-distance sensing points
Technical Specifications
| Model | E3Z-LR61 |
|---|---|
| Series | E3Z |
| Type | Retro-Reflective Laser Photoelectric Sensor |
| Sensing Mode | Retro-Reflective with MSR |
| Sensing Range | Up to 350mm |
| Output Type | NPN Open Collector |
| Supply Voltage | DC12-24V |
| Response Time | 1ms |
| Light Source | Red Laser (Class 1) |
| Cable Length | 2m pre-wired |
| Protection | IP67 |
| MSR Function | Yes |
Frequently Asked Questions
What is MSR function?
MSR (Mirror Set-up Recognition) uses polarized laser light to distinguish between the reflector and shiny objects, enabling detection of reflective targets.
What reflector to use?
Use Omron E39-R4 reflector for laser sensors for optimal performance.
Can this detect transparent objects?
Yes, MSR function enables detection of transparent films and glass.
Laser safety?
Class 1 laser, safe for normal use.
