SKU: E5CC-QX2ASM-001

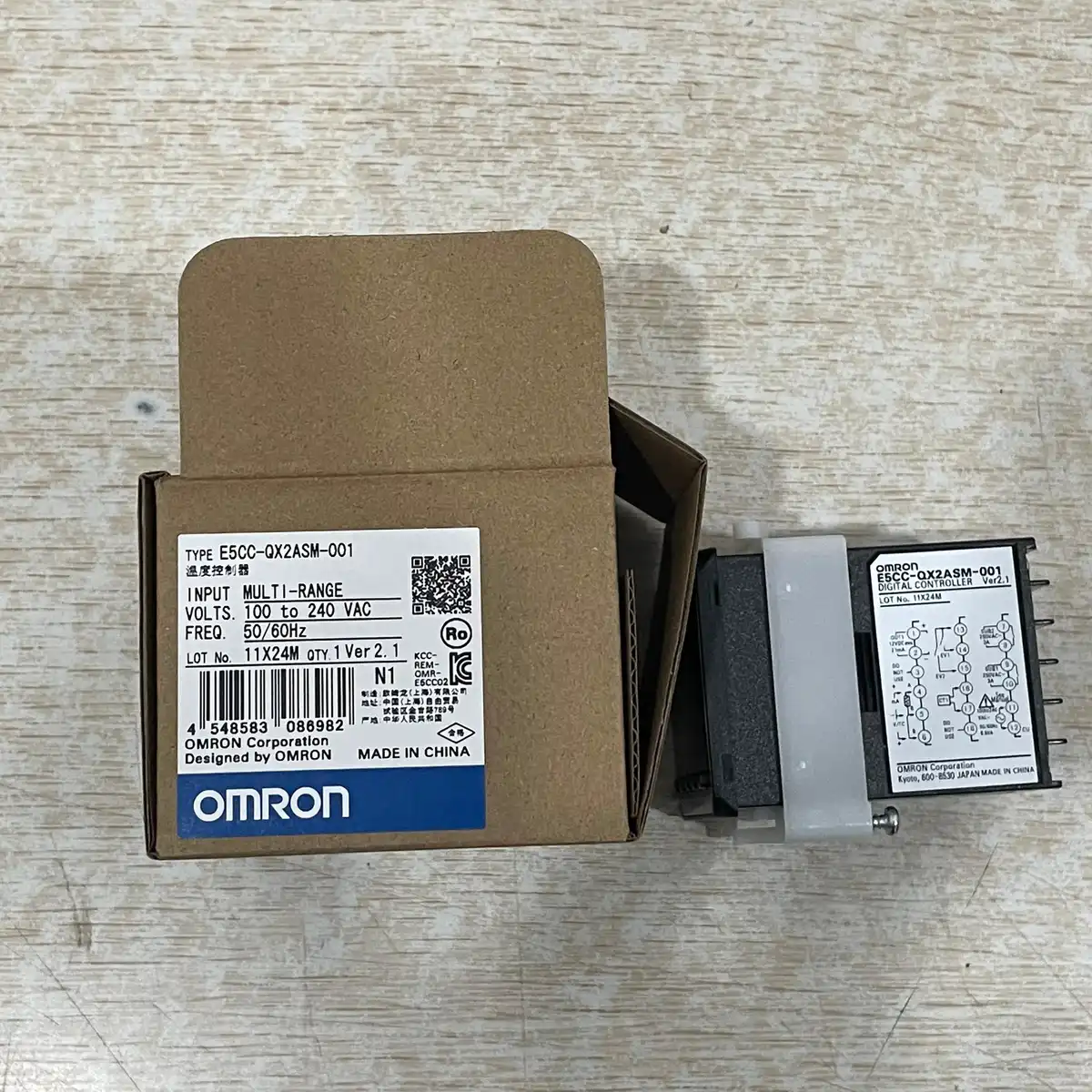

Omron E5CC-QX2ASM-001 Digital Temperature Controller 48x48 SSR Output
Omron E5CC-QX2ASM-001 is a 48x48 mm digital temperature controller with universal input and SSR drive output for precise thermal process control.
USD 100.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Controller family: Omron E5CC
- Panel size: 48 x 48 mm (1/16 DIN class)
- Input type: Universal temperature/process input class
- Control output: SSR drive output class
- Primary use: PID temperature regulation
- Typical loads: Heater circuits via SSR stage
Panel-Mount PID Temperature Control for Industrial Heating
The E5CC-QX2ASM-001 belongs to Omron’s E5CC controller family and is used to maintain stable temperature in packaging, processing, and manufacturing equipment. It combines operator-friendly panel format with dependable closed-loop control behavior.
48x48 DIN Form for Standard Panels
The 1/16 DIN form factor fits established panel cutouts, simplifying retrofit and standardization across machine platforms.
SSR Drive for High-Cycle Heater Output
SSR-compatible output is suitable for frequent switching thermal loads, supporting smoother process control and reduced contact wear.
Consistent Thermal Quality
Stable PID control reduces overshoot and temperature drift, helping improve product consistency in heat-dependent operations.
Typical Applications
- Maintains tighter setpoint tracking
- Drives SSR output stages for high-cycle control
- Improves quality consistency in thermal processes
- Supports operator tuning at panel face
- Reduces drift compared with simple on/off control
- Enables standardized controller deployment
Buying Checklist
- Compact 48x48 panel standard
- SSR output suited to heater switching
- Universal input flexibility
- Reliable PID control for stable production
- Trusted Omron E5CC instrumentation platform
Technical Specifications
| Controller family | Omron E5CC |
|---|---|
| Model | E5CC-QX2ASM-001 |
| Panel size | 48 x 48 mm (1/16 DIN class) |
| Input type | Universal temperature/process input class |
| Control output | SSR drive output class |
| Primary use | PID temperature regulation |
| Typical loads | Heater circuits via SSR stage |
| Installation | Front panel mount controller |
| Process focus | Thermal stability and repeatability |
| Lifecycle value | Strong replacement compatibility in E5CC installations |
Frequently Asked Questions
When does SSR output become especially valuable in temperature control?
It is most valuable in high-cycle heater applications where mechanical relay wear would otherwise increase maintenance and switching instability.
How can startup tuning time be reduced?
Use a structured tuning workflow: validate sensor placement, apply conservative PID parameters, and refine under normal process load.
Is this controller practical for retrofitting older panel cutouts?
Yes, the common 48x48 format often simplifies retrofit replacement in existing control panels.
What operational data should be logged during early production?
Track overshoot, settle time, and steady-state deviation to confirm the control loop is tuned for product quality targets.
