SKU: E5CC-QX2ASM-802

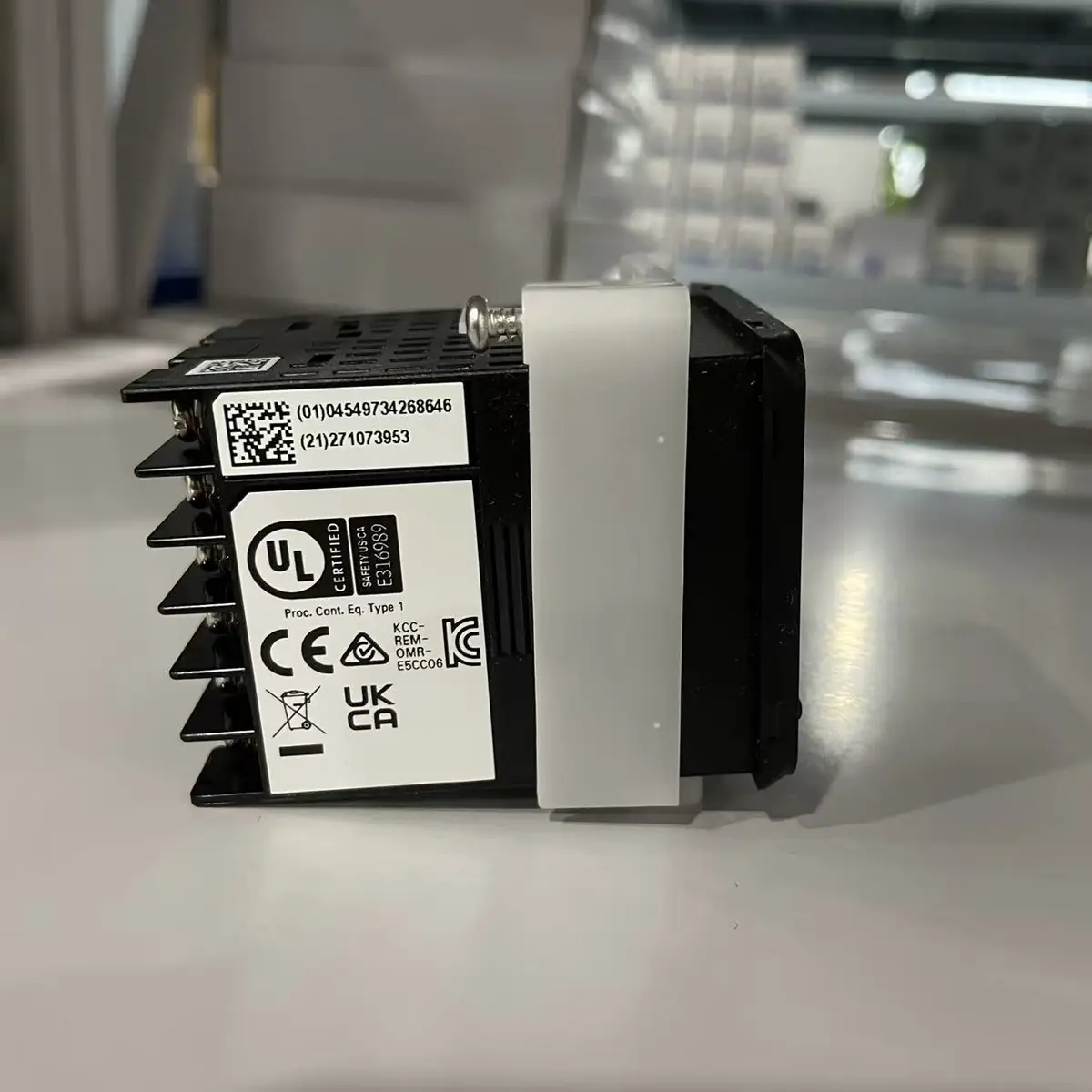

Omron E5CC-QX2ASM-802 Digital Temperature Controller 48x96mm Dual Output
Omron E5CC-QX2ASM-802 is a 48x96mm digital temperature controller with dual output for heating/cooling control, universal input for HVAC and process applications.
USD 44.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- PID control algorithm for stable temperature regulation
- Voltage output support for flexible control integration
- DIN rail/compact form for practical panel deployment
- Suitable for heaters, ovens, and process thermal loops
- Improves setpoint stability and reduces overshoot
- Reliable choice for OEM and retrofit thermal control upgrades
Precision PID Thermal Control for Stable Production Quality
The E5CC-QX2ASM-802 enables accurate closed-loop temperature regulation in heaters, ovens, and thermal process zones where consistency is essential. Voltage output support provides flexible integration with compatible control elements. This controller helps reduce thermal fluctuation and supports reproducible product quality in automation lines.
Typical Applications
- Regulating heater zones in packaging equipment
- Controlling oven temperatures in process modules
- Stabilizing thermal profiles in sealing stations
- Upgrading on/off controllers to PID control
- Improving consistency in heat-sensitive production
- Standardizing temperature control across OEM platforms
Buying Checklist
- PID control improves product quality consistency
- Voltage output broadens integration options
- Compact design fits dense industrial panels
- Practical modernization option for legacy thermal loops
- Reliable long-term component for thermal automation
Technical Specifications
| Model | E5CC-QX2ASM-802 |
|---|---|
| Series | E5CC |
| Size | 48 x 96mm |
| Input Types | Universal: TC, Pt100, Analog |
| Control Output | Dual output (heating + cooling) |
| Control Method | ON/OFF or PID |
| Sampling Period | 250ms |
| Display | White PV, Orange SV |
| Supply Voltage | AC100-240V |
| Alarm Outputs | 2 alarms |
| Protection | IP66 front panel |
Frequently Asked Questions
When do I need dual output (heating/cooling) control?
Dual output is needed for: environmental chambers, incubators, reflow ovens, plastic molding temperature control, and any application requiring both heating AND cooling to maintain setpoint. Single output is sufficient for heating-only applications.
How does heating/cooling control work?
Controller activates heating output when temperature is below setpoint, cooling output when above setpoint. PID parameters can be tuned separately for heating and cooling. Deadband prevents simultaneous heating and cooling.
What's the deadband and how do I set it?
Deadband is the temperature range where neither heating nor cooling is active, preventing rapid cycling. Set based on system response: 1-2°C for precise control, 3-5°C for large thermal mass systems. Configure in parameter menu.
Can I use this for cooling-only applications?
Yes, configure for cooling-only operation. Use cooling output only, disable heating output. Common applications: refrigeration, chilled water control, air conditioning.
