SKU: E5CC-QX2DSM-802

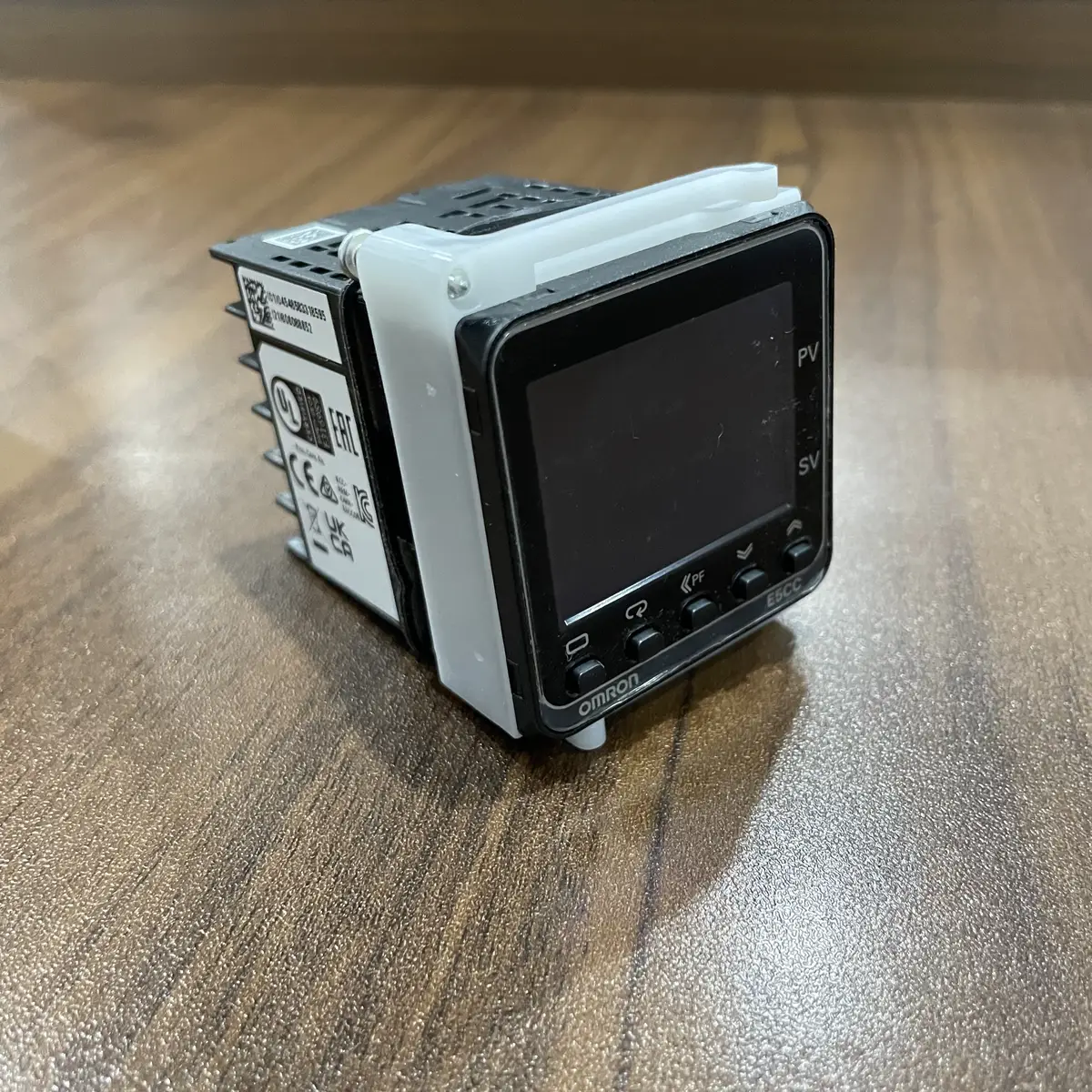

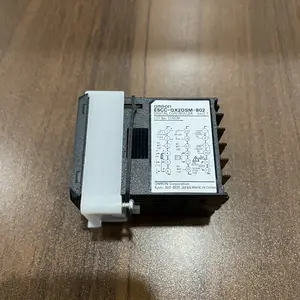

Omron E5CC-QX2DSM-802 Digital Temperature Controller 48x96mm DC Supply
Omron E5CC-QX2DSM-802 is a 48x96mm digital temperature controller with DC supply for precise temperature control.
USD 50.00 per unit, volume discounts available
- In stock, ships in 24h
- 100% genuine Omron
- 1-year manufacturer warranty
- Worldwide delivery
Key Features
- Size: 48x96mm (1/16 DIN)
- Input Types: Thermocouple, Pt100, analog
- Control Output: Relay, Voltage (for SSR)
- Control Method: PID, ON/OFF
- Supply Voltage: DC24V
- Display: Dual LCD
Network-Ready Temperature Control with Panel-Level Precision
The E5CC-QX2DSM-802 combines local PID control performance with communication capability, making it suitable for machine builders needing both panel operation and supervisory data integration.
RS-485 for Monitoring and Integration
Serial communication allows centralized parameter access, status collection, and process visibility in connected production systems.
Dual-Output Flexibility
Dual-output architectures support broader control/alarm strategies depending on application requirements and process design.
Consistent E5CC Deployment Pattern
Maintaining common controller families across machine lines improves spare strategy and technician familiarity.
Typical Applications
- Controls local heater loop with PID behavior
- Sends process data over RS-485 network
- Supports alarm/control dual-output strategies
- Improves visibility for maintenance teams
- Enables better traceability in regulated processes
- Reduces manual parameter management overhead
Buying Checklist
- RS-485 connectivity for modernized operations
- Dual-output flexibility for control strategy
- Compact 48x48 panel compatibility
- Reliable E5CC control performance
- Suitable for scalable thermal architectures
Technical Specifications
| Model | E5CC-QX2DSM-802 |
|---|---|
| Series | E5CC |
| Type | Digital Temperature Controller |
| Size | 48x96mm (1/16 DIN) |
| Input Types | Thermocouple, Pt100, analog |
| Control Output | Relay, Voltage (for SSR) |
| Control Method | PID, ON/OFF |
| Supply Voltage | DC24V |
| Display | Dual LCD |
| Accuracy | ±0.3% full scale |
| Operating Temperature | -10 to +55°C |
| Protection | IP66 (front panel) |
Frequently Asked Questions
What sensor types does this controller accept?
Thermocouple (K, J, T, E, etc.), Pt100, analog (0-10V, 4-20mA). Universal input.
What control outputs are available?
Relay output (for contactor), voltage output (for SSR). Select based on load type.
Does this controller have PID control?
Yes, PID control with auto-tuning. Also supports ON/OFF control.
What's the display type?
Dual LCD display. Shows process value and setpoint simultaneously.
